Specifications
Brand Name :
ZONCO
Model Number :
Customized
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
10000 piece/pieces per month
Delivery Time :
30-35 working days
Packaging Details :
carton or wooden case. Also can be customized as per your requirement.
Type :
Hand Tool Parts
Commodity name :
high wear resistant tungsten carbide oil drill bit nozzle
Application :
Petroleum machinery
Appearance :
Polishing, sintering
Trial Order :
Acceptable
Virgin Material :
100%
Description

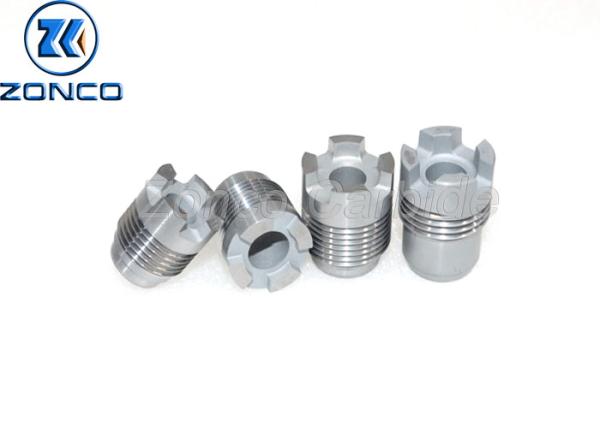

Cemented Carbide Spray Nozzle Tungsten Carbide Nozzle For Petroleum And Natural Gas Application

Quick detail

Type:Power Tool Parts Model Type:Customized Trade Term:CIF,EXW,FOB
Cobalt Content(%):8%,10%,6% Virgin Material:100% Surface:Ground or Blanks
Trial Order:Acceptable OEM Service:Acceptable Delivery Time:Shipped in 20 days after payment

Product Description

Cemented carbide nozzles are mostly used for water cooling and slurry scouring of the drill bit during the drilling. The size and the form of the water holes should be designed selectively according to the different geological conditions and the flow rate. The nozzles are normally divided into two kinds according to the varied drill bits and the conversion requirement, one of these is with thread and another without thread. The nozzles without thread are mainly to be used to the PDC drill bits.

Dimensions of cross groove thread nozzles for references:

Type Basic Dimension(mm) Thread Specification
D D1 d d1 L L1
7.1 17.5 25.4 20.4 30.8 3.9 1-14UNS-2A
7.9 17.5 25.4 20.4 30.8 3.9
8.7 17.5 25.4 20.4 30.8 3.9
9.5 17.5 25.4 20.4 30.8 3.9
10.3 17.5 25.4 20.4 30.8 3.9
11.1 17.5 25.4 20.4 30.8 3.9
11.9 17.5 25.4 20.4 30.8 3.9
12.7 17.5 25.4 20.4 30.8 3.9
13.5 17.5 25.4 20.4 30.8 3.9
14.3 17.5 25.4 20.4 30.8 3.9
15.1 17.5 25.4 20.4 30.8 3.9
15.9 17.5 25.4 20.4 30.8 3.9
16.7 17.5 25.4 20.4 30.8 3.9
17.5 17.5 25.4 20.4 30.8 3.9

Our Advantages:

Experienced with high producing technology and facilities

Varying sizes and customized needs available

Quality and quantity assured

Factory direct price

Trial order accepted

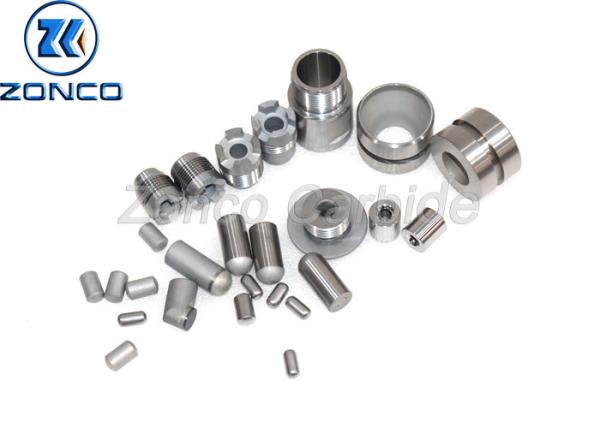

Products show

Cemented Threaded Spray Nozzles For Petroleum And Natural Gas Application
