Anti Corrosion Cemented Carbide Nozzle For Petroleum Industry Machine
Anti Corrosion Cemented Carbide Nozzle For Petroleum Industry Machine
Specifications
Brand Name :
ZONCO
Model Number :
Customized
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
100000 piece/pieces per month
Delivery Time :
30-35 working days
Packaging Details :
carton or wooden case. Also can be customized as per your requirement.
Type :
Hand Tool Parts
Commodity name :
high wear resistant tungsten carbide oil drill bit nozzle
Application :
Petroleum machinery
Appearance :
Polishing, sintering
Name :
Tungsten carbide nozzle
Color :
Silver
Description

Corrosion Resistance Tungsten Carbide Nozzle For Petroleum Industry Machine

1.100% virgin raw material to maintain the consistence of quality.


2.100% inspection before shipment.


3. Material certificate can be provided.

Product Application:

With the features of simple structure, high strength, high wear resistance and high impact resistance, the characteristics of PDC bit nozzle is one of the three new technologies of drilling in the world in the 1980's. Field use shows that diamond bit drilling is suitable for soft to medium hard formations because of the advantages of longer service life, less down time, as well as a more consistent bore.


As one of the important components for the diamond drill bit, tungsten carbide drill bit nozzle has the effect to clean the bit and bottom hole; carbide nozzles also have hydraulic rock fragmentation effect. Conventional nozzle is cylindrical; it can produce a balanced pressure distribution in the rock surface.

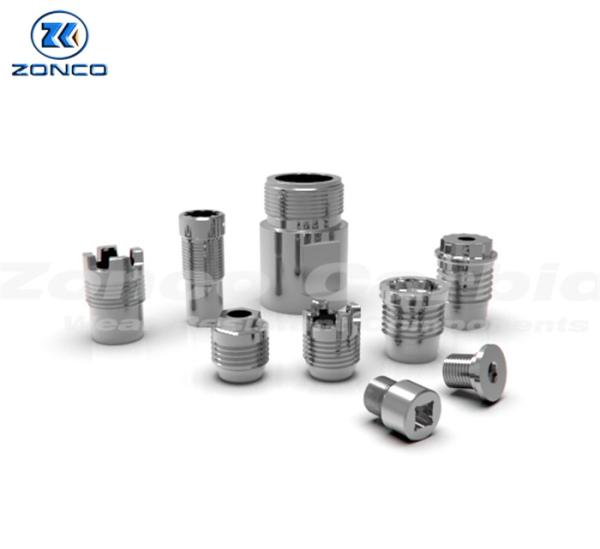

Solid carbide hex head threaded nozzles are used for PDC drill bits with good wear resistance and high impact resistance. They are mainly used for cooling water and washing mud, according to the drilling of geographical environment, we will choose different water flow and hole size in the shape of the tungsten carbide nozzles. Our high-quality hex threaded nozzles are fine tuned to our customers’ needs and applications.

Cobalt Binder Grades Properties:

Grades Cobalt %

Density

g/cm3

Hardness

HRA

TRS

≥N/mm2
YG6 6 14.6-15.0 89.5 1900
YG6X 6 14.9 92 1800
YG11 11 14.3 88 3400
YG13X 13 14.3 89.5 2300
YG15 15 14.0 87.5 3300
YU06A 6 14.7 93.0 3800

Nickel Binder Grades Properties:

Grade Nickel %

Density

g/cm3

Hardness

HRA

TRS

≥N/mm2
YN6 6 14.7 89.5 1460
YN8 8 14.6 88.5 1710

We can also provide you all kinds of other tungsten carbide nozzles such as spray nozzles, blasting nozzles and so on.
