High Hardness Tungsten Carbide Threaded Nozzle Non Standard Type Available
High Hardness Tungsten Carbide Threaded Nozzle Non Standard Type Available
High Hardness Tungsten Carbide Threaded Nozzle Non Standard Type Available
High Hardness Tungsten Carbide Threaded Nozzle Non Standard Type Available
High Hardness Tungsten Carbide Threaded Nozzle Non Standard Type Available
High Hardness Tungsten Carbide Threaded Nozzle Non Standard Type Available
Specifications
Brand Name :
Zonco
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per month
Delivery Time :
4-8 weeks depending on quantity
Packaging Details :
Standard package or to customer's demand
Application :
Oil Service Industry
Certificate :
ISO9001:2015
Advantage :
High Wear Resistance, Impact Resistance
Type :
Accept Non-Standard Orders
Name :
High Hardness and Wear Resistance Tungsten Carbide Thread Nozzle
Surface :
Polished
Description

High Hardness and Wear Resistance Tungsten Carbide Thread Nozzle

Features of Tungsten carbide nozzle:

Tungsten carbide nozzle is made from hot pressing with straight bore and venture bore type, which have high hardness, good wear resistance, high anti-corrosion ability. Usually they offers a long life with high performance. They are widely uased in abrasive water jet, dry/wet blasting,suction blast,scrubber,descaling,slurry jet,centrifuge and so on.

Material characteristics:

The non-bonding phase nano cemented carbide material is developed for working conditions that require high wear resistance and corrosion resistance. By using the production technology of nano cemented carbide, the bending strength of the material can be improved. Therefore, products made from it can improve its resistance to damage.

Common alloy grades, physical and mechanical properties, and recommended applications

Grade Physical and mechanical properties
density(g/cm3) Flexural strength(N/mm2) hardness(HRA)
ZG01 15.3-15.5 1200 95.5
ZG06 14.8-15.1 2000 90.0
ZG6X 14.8-15.1 1860 91.8
ZG6A 14.8-15.1 2000 93.2
ZG08 14.6-14.9 2200 89.0
ZG11 14.3-14.7 2600 88.5
ZG12X 14.2-14.5 2850 89.5
ZG15 13.8-14.2 3000 86.5
ZG10.2 14.3-14.6 3500 91.5
ZN06 14.5-14.9 2000 90.0
ZN09 14.3-14.6 2300 89.0
ZN11 14.0-14.3 2600 88.0

Application fields:

ZONCO provides cost-effective wear-resistant, erosion-resistant, high-temperature and high-pressure parts for oil and gas, chemical, pump and valve, coal chemical, automotive, solar and other industries.

pictures:

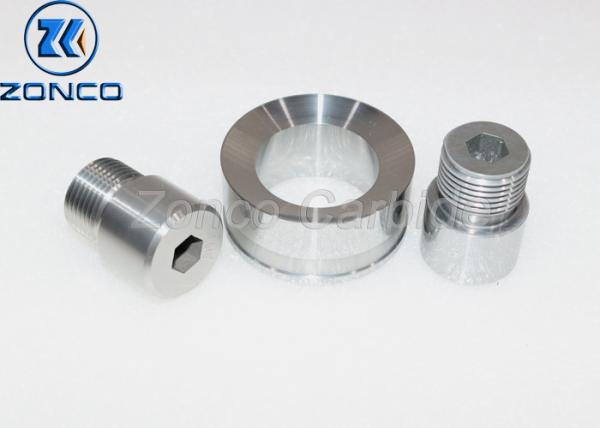

High Hardness Tungsten Carbide Threaded Nozzle Non Standard Type Available

High Hardness Tungsten Carbide Threaded Nozzle Non Standard Type Available

Advantages:

① Advanced process design

② Specialized in production

③ Unique material properties

④ Personalized customization

⑤ Whole process quality control system

⑥ Strong supply ability guaranteed
