Indroduction To Drilling Bit Jet Nozzles For The Hole Is Usually Small Aroud 0.25 Inch In Diameter
Indroduction To Drilling Bit Jet Nozzles For The Hole Is Usually Small Aroud 0.25 Inch In Diameter
Indroduction To Drilling Bit Jet Nozzles For The Hole Is Usually Small Aroud 0.25 Inch In Diameter
Indroduction To Drilling Bit Jet Nozzles For The Hole Is Usually Small Aroud 0.25 Inch In Diameter
Indroduction To Drilling Bit Jet Nozzles For The Hole Is Usually Small Aroud 0.25 Inch In Diameter
Indroduction To Drilling Bit Jet Nozzles For The Hole Is Usually Small Aroud 0.25 Inch In Diameter
Indroduction To Drilling Bit Jet Nozzles For The Hole Is Usually Small Aroud 0.25 Inch In Diameter
Indroduction To Drilling Bit Jet Nozzles For The Hole Is Usually Small Aroud 0.25 Inch In Diameter
Indroduction To Drilling Bit Jet Nozzles For The Hole Is Usually Small Aroud 0.25 Inch In Diameter
Indroduction To Drilling Bit Jet Nozzles For The Hole Is Usually Small Aroud 0.25 Inch In Diameter
Indroduction To Drilling Bit Jet Nozzles For The Hole Is Usually Small Aroud 0.25 Inch In Diameter
Indroduction To Drilling Bit Jet Nozzles For The Hole Is Usually Small Aroud 0.25 Inch In Diameter
Specifications
Brand Name :
ZONCO
Model Number :
Customized
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,Western Union
Supply Ability :
10000pcs per month
Delivery Time :
20-30 working days
Packaging Details :
carton or wooden case. Also can be customized as per your requirement.
Application :
The maximum toughness and wear resistance in high-torque capacity applications
Material :
Tungsten Carbide WC+Co
Features :
Ground thread,unground thread,castle top,hex head
Style and size :
Grooved,shrouded,non-shrouded,flangeless
Description

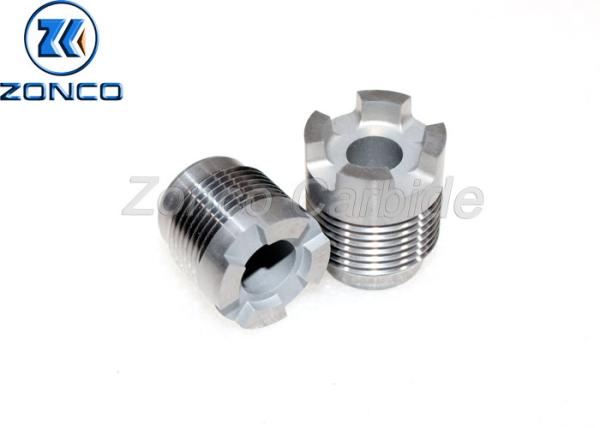

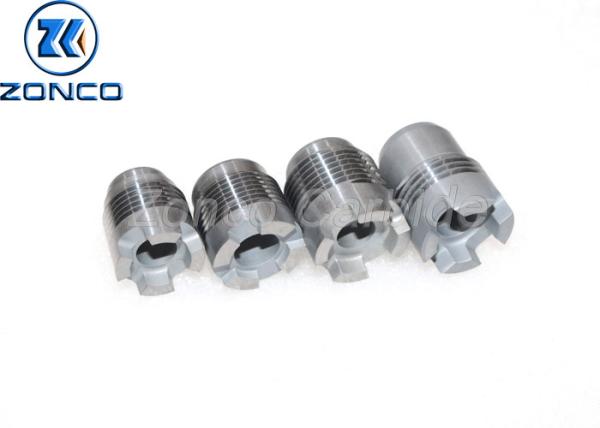

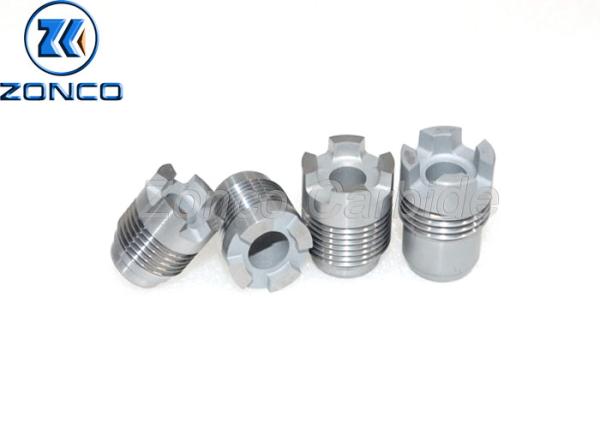

Indroduction to drilling bit jet nozzles for the hole is usually small aroud 0.25 inch in diameter

The part of the bit that includes a hole or opening for drilling fluid to exit.The hole is usually small (around 0.25 inch in diameter) and the pressure of the fluid inside the bit is usually high,leading to a high exit velocity through the nozzles that creates a high-velocity jet below the nozzles.This high-velocity jet of fluid cleans both the bit teeth and the bottom of the hole. The sizes of the nozzles are usually measured in 1/32-inch increments(although some are recorded in millimeters),are always reported in "thirty-seconds"of size(i.e.fractional denominators are not reduced),and usually range from 6/32 to 32/32.

Indroduction To Drilling Bit Jet Nozzles For The Hole Is Usually Small Aroud 0.25 Inch In Diameter

Drilling fluids circulate through a drill string to nozzles at the bit and back to the surface via the system annulus.They provide three crucial functions to drilling:

  • Cleaning of the cutting structure
  • Cuttings removal from the hole bottom
  • Efficient cuttings evacuation to the surface

Indroduction To Drilling Bit Jet Nozzles For The Hole Is Usually Small Aroud 0.25 Inch In Diameter

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
Grade WC% Co/Ni % Physical and mechanical properties Grain size (μm) Recommended application
Density (g/cm3) TRS (N/mm2) Hardness (HRA)
ZG01 100 0 15.3-15.5 1200 95.5 0.3 Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X 96 4 15.0-15.2 1600 92.8 0.8-1.0 Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06 94 6 14.8-15.1 2500 90.0 1.2 Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X 94 6 14.8-15.1 2400 91.5 1.0 Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
ZG08 92 8 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2 90 10 14.3-14.6 3800 91.7 0.7 Good general performance, suitable for casing and oil nozzle products
ZG11 89 11 14.3-14.7 2800 88.5 1.2-1.6 Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2 Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15 85 15 13.8-14.2 3000 86.5 1.2-1.6
ZG15X 85 15 13.8-14.2 4500 89.0 0.7 Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20 80 20 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
ZN06 94 6 14.5-14.9 2000 90.0 1.2 Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09 91 9 14.3-14.6 2300 89.0 1.2-1.6
ZN11 89 11 14.0-14.3 2600 88.0 1.2
