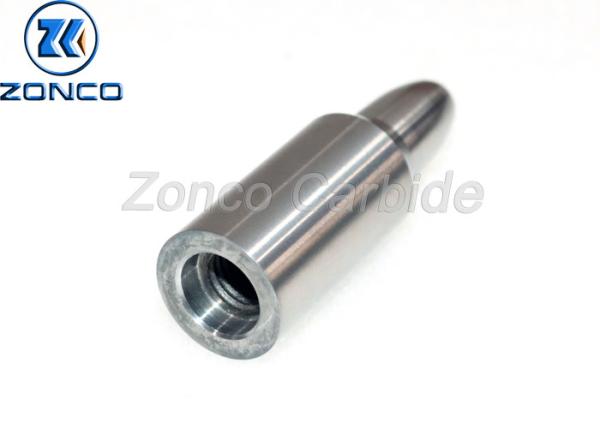

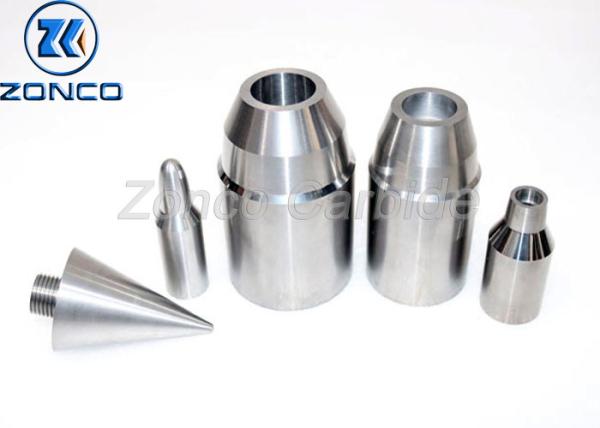

Mirror Finish Ball Valve Trim Tungsten Carbide Seats Corrosion Resistance
Mirror Finish Ball Valve Trim Tungsten Carbide Seats Corrosion Resistance
Mirror Finish Ball Valve Trim Tungsten Carbide Seats Corrosion Resistance
Mirror Finish Ball Valve Trim Tungsten Carbide Seats Corrosion Resistance
Mirror Finish Ball Valve Trim Tungsten Carbide Seats Corrosion Resistance
Mirror Finish Ball Valve Trim Tungsten Carbide Seats Corrosion Resistance
Mirror Finish Ball Valve Trim Tungsten Carbide Seats Corrosion Resistance
Mirror Finish Ball Valve Trim Tungsten Carbide Seats Corrosion Resistance
Mirror Finish Ball Valve Trim Tungsten Carbide Seats Corrosion Resistance
Mirror Finish Ball Valve Trim Tungsten Carbide Seats Corrosion Resistance
Specifications
Brand Name :
ZONCO
Model Number :
Customized
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
100000 piece/pieces per month
Delivery Time :
30-35 working days
Packaging Details :
carton or wooden case. Also can be customized as per your requirement.
Application :
Industry valve or petroleum industry
Surface :
Mirror Finish
Product name :
Tungsten carbide valve seat
Feature :
High hardness, corrosion and wear resistance etc
Grade :
YG6/YG8/YG11/YG15
Packing :
Standard export package
Description

tungsten carbide valve seat/tungsten carbide valve core/tungsten carbide ball valve

Product description:

Tungsten carbide is an important raw material in valve seat. Valve seat is wearing part. The important point is: it in the pipe. The medium will crushing the inner place. If the valve seat were not maintained properly, it would get rusty as time passes. Tungsten carbide features: High hardness, corrosion and wear resistance etc. It’s high hardness and wear resistance to ensure valve seat guarantee quality. The advantage is tungsten carbide is washing-out resistance. When the liquid into valve, it will washing-out valve seat. The raw material is more important. When parts or machine rubbing against each other, we always using tungsten carbide for valve seat raw material. This way is most quickly, easily way to solve work piece corrosion problem. It’s versatility and flexibility in various work piece. It’s mainly used in Oil, Gas industry and so on. After accurate grinding and polishing, the frictional factor of surface is very low. We accept customized service. If you have other specification, you can contact us. TDC is your partner in Tungsten carbide industry. For tungsten carbide material grade, we suggest: YG8, YG11, YG15, YS2T, YL10.2, YN8 other grade can be offered by customers’ request.

Recommended grade information

Grade Density Hardness T.R.S Performance & Application recommended
YG8 14.5 89 2320 Suitable for the rough ening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel
YG11 14.4 87.5 2260 Medium graiz,for wea parts and mining tools
YG15 14.1 86.5 2400 Medium grain,for mining tools,cold heading and punching dies
YS2T 14.45 92.5 2800 Fine carbide,high wear resistance,high bending strength,high resistance to bonding,high themal strength,machining of refractory alloys,stainless steel and high manganese steel etc.Mainly used for disc cutter and other tools.
YL10.2 14.5 92.5 3400 Wear resistance and strength comparatively higher,suitable for processing cast iron
YN8 14.6 88.5 1710 Wear corrosion resistance and abrasion,especially used in hyperbaric,special and harsh processing environment

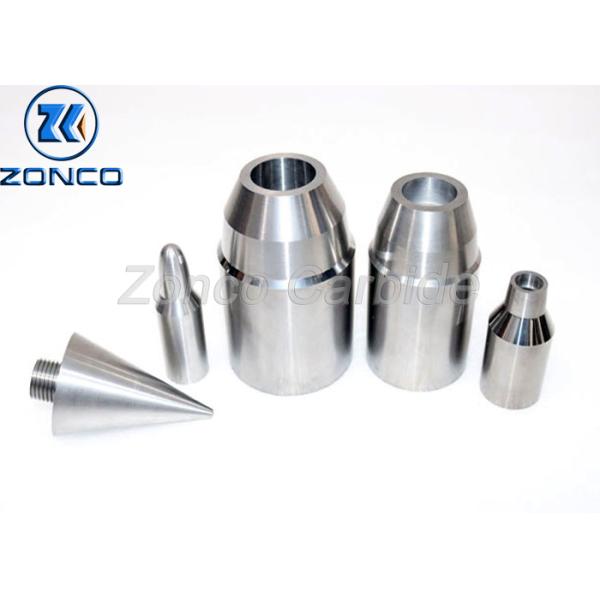

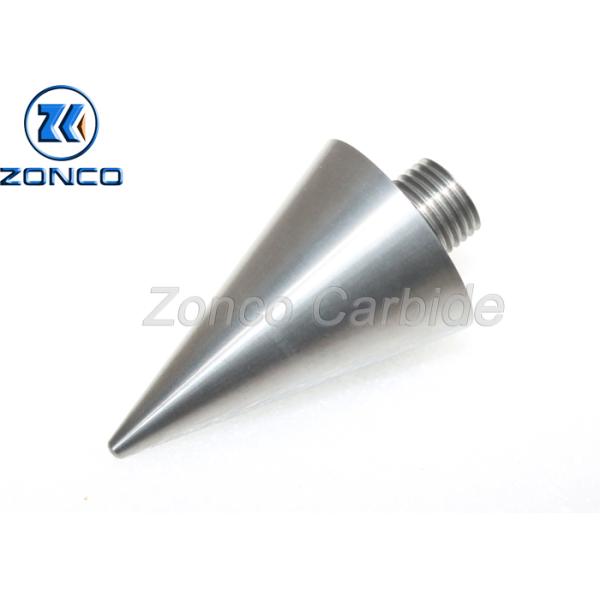

Product display

Mirror Finish Ball Valve Trim Tungsten Carbide Seats Corrosion Resistance

Mirror Finish Ball Valve Trim Tungsten Carbide Seats Corrosion Resistance

Mirror Finish Ball Valve Trim Tungsten Carbide Seats Corrosion Resistance

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
Grade WC% Co/Ni % Physical and mechanical properties Grain size (μm) Recommended application
Density (g/cm3) TRS (N/mm2) Hardness (HRA)
ZG01 100 0 15.3-15.5 1200 95.5 0.3 Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X 96 4 15.0-15.2 1600 92.8 0.8-1.0 Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06 94 6 14.8-15.1 2500 90.0 1.2 Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X 94 6 14.8-15.1 2400 91.5 1.0 Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
ZG08 92 8 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2 90 10 14.3-14.6 3800 91.7 0.7 Good general performance, suitable for casing and oil nozzle products
ZG11 89 11 14.3-14.7 2800 88.5 1.2-1.6 Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2 Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15 85 15 13.8-14.2 3000 86.5 1.2-1.6
ZG15X 85 15 13.8-14.2 4500 89.0 0.7 Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20 80 20 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
ZN06 94 6 14.5-14.9 2000 90.0 1.2 Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09 91 9 14.3-14.6 2300 89.0 1.2-1.6
ZN11 89 11 14.0-14.3 2600 88.0 1.2
