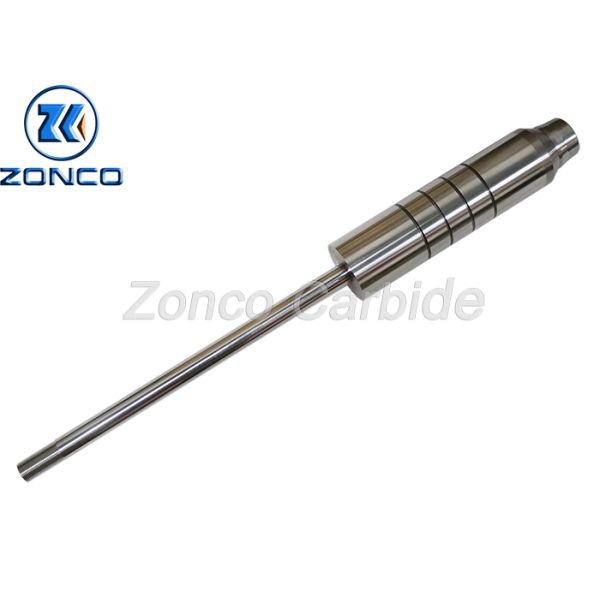

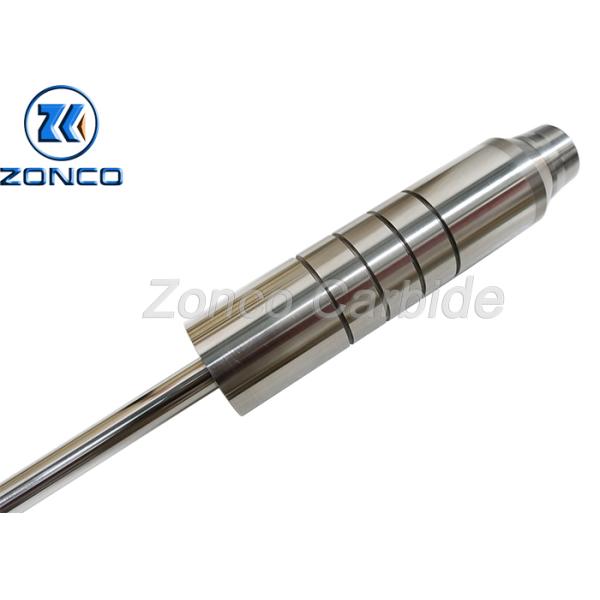

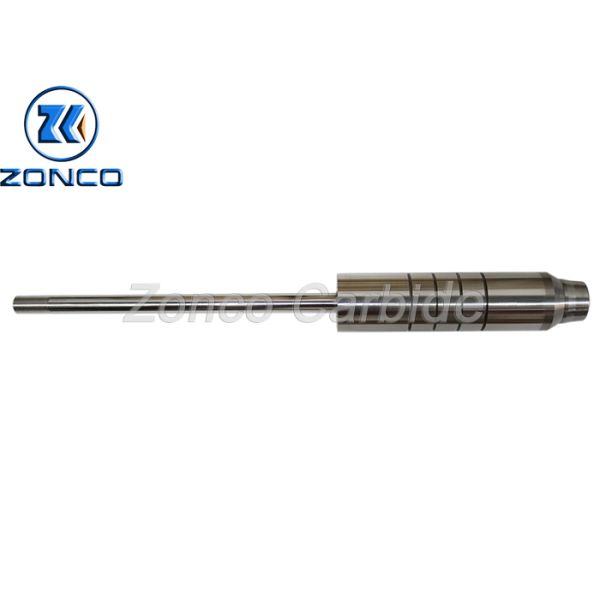

SS410 Adjustable Choke Valve Stem With Tungsten Carbide Tips
SS410 Adjustable Choke Valve Stem With Tungsten Carbide Tips
SS410 Adjustable Choke Valve Stem With Tungsten Carbide Tips
SS410 Adjustable Choke Valve Stem With Tungsten Carbide Tips
SS410 Adjustable Choke Valve Stem With Tungsten Carbide Tips
SS410 Adjustable Choke Valve Stem With Tungsten Carbide Tips
SS410 Adjustable Choke Valve Stem With Tungsten Carbide Tips
SS410 Adjustable Choke Valve Stem With Tungsten Carbide Tips
SS410 Adjustable Choke Valve Stem With Tungsten Carbide Tips
SS410 Adjustable Choke Valve Stem With Tungsten Carbide Tips
Specifications
Brand Name :
ZONCO
Model Number :
Customized
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
1000 piece/pieces per month
Delivery Time :
30-35 working days
Packaging Details :
carton or wooden case. Also can be customized as per your requirement.
Size :
3/4" 1"
Material :
TC +410SS
Production capacity :
1000pcs/month
Braze way :
Silver brazing
Package :
Carton +wooden cases
Sample :
Can provide sample before form orders
Description
Choke Stems Is The Key Parts For Ajustable Choke Valves In Wellhead Equipment
Choke stem is the key part for ajustable choke valves in wellhead equipment.Assembled with tungsten carbide tips and SS410/316 body.
Hardened alloy stell stems is widely used in adjustable needle & positive choke assemblies.Stainless steel or stainless steel with tungsten carbide tips for abrasive and sours gas service are available on request.Positive choke assemblies are furnished less flow bean and may be converted to adjustable choke assemblies by replacing the blanking cap assembly and flow bean with the appropriate adjustable bonnet assembly and seat.
Product name Choke stem
Size 3/4" 1"
Material TC+410SS
Process Sliver brazing

Products show
SS410 Adjustable Choke Valve Stem With Tungsten Carbide Tips
SS410 Adjustable Choke Valve Stem With Tungsten Carbide Tips
SS410 Adjustable Choke Valve Stem With Tungsten Carbide Tips

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
Grade WC% Co/Ni % Physical and mechanical properties Grain size (μm) Recommended application
Density (g/cm3) TRS (N/mm2) Hardness (HRA)
ZG01 100 0 15.3-15.5 1200 95.5 0.3 Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X 96 4 15.0-15.2 1600 92.8 0.8-1.0 Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06 94 6 14.8-15.1 2500 90.0 1.2 Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X 94 6 14.8-15.1 2400 91.5 1.0 Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
ZG08 92 8 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2 90 10 14.3-14.6 3800 91.7 0.7 Good general performance, suitable for casing and oil nozzle products
ZG11 89 11 14.3-14.7 2800 88.5 1.2-1.6 Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2 Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15 85 15 13.8-14.2 3000 86.5 1.2-1.6
ZG15X 85 15 13.8-14.2 4500 89.0 0.7 Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20 80 20 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
ZN06 94 6 14.5-14.9 2000 90.0 1.2 Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09 91 9 14.3-14.6 2300 89.0 1.2-1.6
ZN11 89 11 14.0-14.3 2600 88.0 1.2
