1 2 Inch Tungsten Carbide SS Valve Spindle For Positive Choke Valve
1 2 Inch Tungsten Carbide SS Valve Spindle For Positive Choke Valve
1 2 Inch Tungsten Carbide SS Valve Spindle For Positive Choke Valve
1 2 Inch Tungsten Carbide SS Valve Spindle For Positive Choke Valve
1 2 Inch Tungsten Carbide SS Valve Spindle For Positive Choke Valve
1 2 Inch Tungsten Carbide SS Valve Spindle For Positive Choke Valve
1 2 Inch Tungsten Carbide SS Valve Spindle For Positive Choke Valve
1 2 Inch Tungsten Carbide SS Valve Spindle For Positive Choke Valve
1 2 Inch Tungsten Carbide SS Valve Spindle For Positive Choke Valve
1 2 Inch Tungsten Carbide SS Valve Spindle For Positive Choke Valve
Specifications
Brand Name :
ZONCO
Model Number :
Customized
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
1000 piece/pieces per month
Delivery Time :
30-35 working days
Packaging Details :
carton or wooden case. Also can be customized as per your requirement.
Size :
1'' and 2''
Material :
Tungsten Carbide + SS410
Production capacity :
1000pcs/month
Description

Tungsten Carbide +S.S 1 Or 2 Inch Choke Stem For Positive Choke Valve For Wellhead

Choke stem and seat are the key parts for adjustable choke valves in wellhead equipment.Assembled with tungsten carbide tips and SS410 body.

Direction for use
These valve components have high temperature resistance, wear resistance and corrosion resistance It is mainly used for the
sealing of oil pump valves such as sand wells, heavy oil wells, offshore oil wells and high-pressure sulfur-resistant oil wells in
the petroleum industry.

Specifications

Size 1'' and 2''
Material YG6/YG8 +SS410/17-4PH
Certificate Material,size,MPI,UT etc
Sample Can provide sample before form orders
Braze way Silver brazing
Delivery time 35days/1000pcs
Package Carton +wooden cases

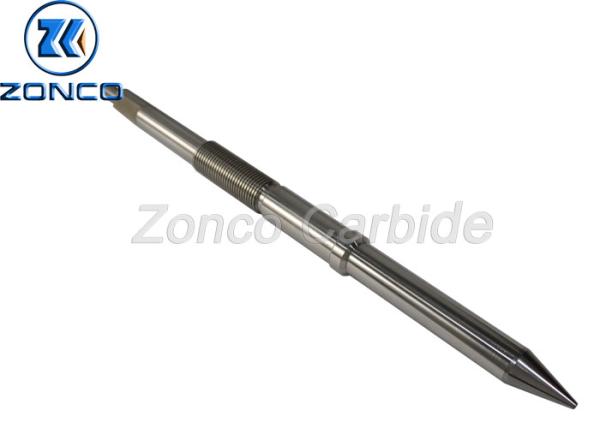

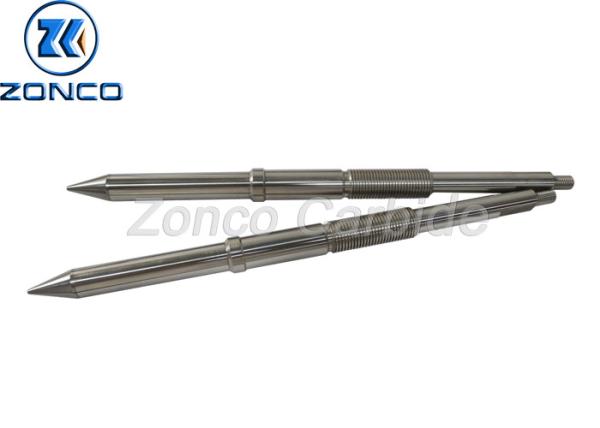

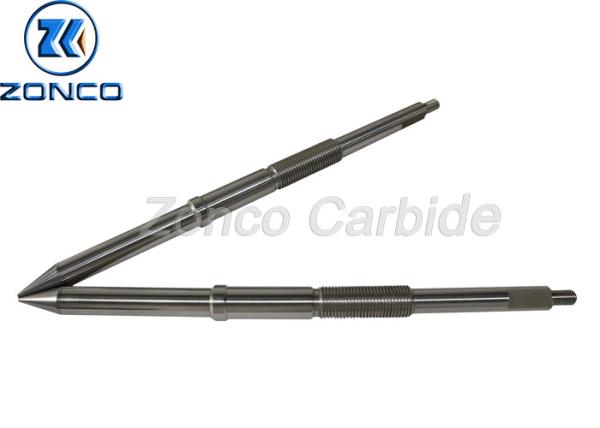

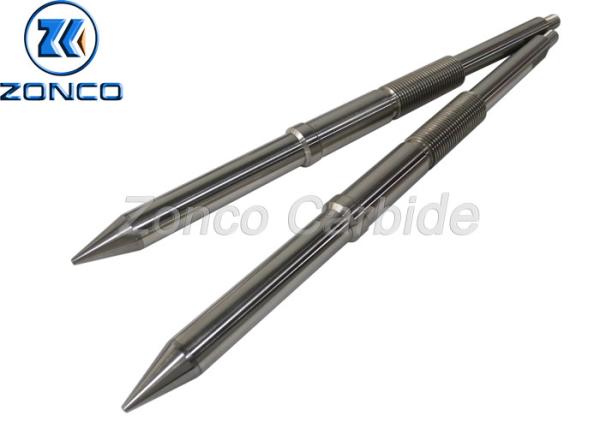

Products show

1 2 Inch Tungsten Carbide SS Valve Spindle For Positive Choke Valve

1 2 Inch Tungsten Carbide SS Valve Spindle For Positive Choke Valve

1 2 Inch Tungsten Carbide SS Valve Spindle For Positive Choke Valve

Our Services

1.OEM grade--Can composit grade according to customer's requirement

2.OEM part--Can product parts according to customer's drawing

3.Service on 24 hours

Our products range

  • Tungsten carbide mechanical seal rings
  • Tungsten carbide bush and sleeve
  • Tungsten carbide valve and seat for fluid controlling
  • Choke valve stem
  • Choke beans
  • Choke stem and seat
  • Tungsten carbide thread nozzles
  • Tungsten carbide tip for oil well,water well drilling,mining drilling,stone working
  • Tungsten carbide teeth for drill bits
  • Other tungsten carbide customized products

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
Grade WC% Co/Ni % Physical and mechanical properties Grain size (μm) Recommended application
Density (g/cm3) TRS (N/mm2) Hardness (HRA)
ZG01 100 0 15.3-15.5 1200 95.5 0.3 Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X 96 4 15.0-15.2 1600 92.8 0.8-1.0 Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06 94 6 14.8-15.1 2500 90.0 1.2 Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X 94 6 14.8-15.1 2400 91.5 1.0 Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
ZG08 92 8 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2 90 10 14.3-14.6 3800 91.7 0.7 Good general performance, suitable for casing and oil nozzle products
ZG11 89 11 14.3-14.7 2800 88.5 1.2-1.6 Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2 Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15 85 15 13.8-14.2 3000 86.5 1.2-1.6
ZG15X 85 15 13.8-14.2 4500 89.0 0.7 Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20 80 20 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
ZN06 94 6 14.5-14.9 2000 90.0 1.2 Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09 91 9 14.3-14.6 2300 89.0 1.2-1.6
ZN11 89 11 14.0-14.3 2600 88.0 1.2
Product tags

tungsten carbide valve core

,

valve spindle

,

spindle valve
