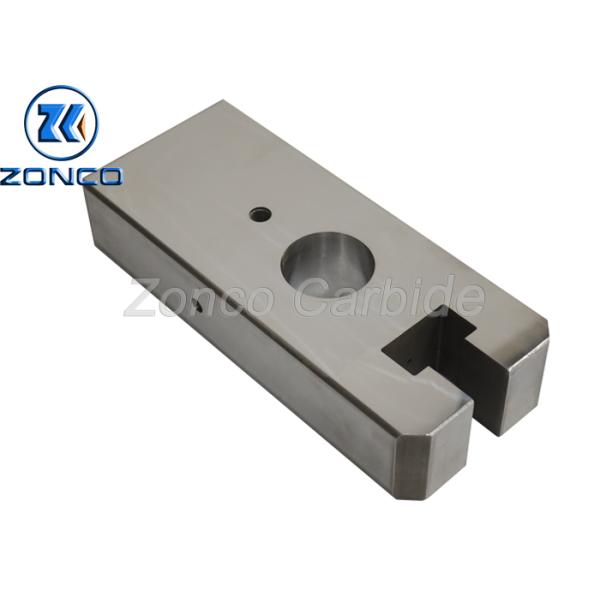

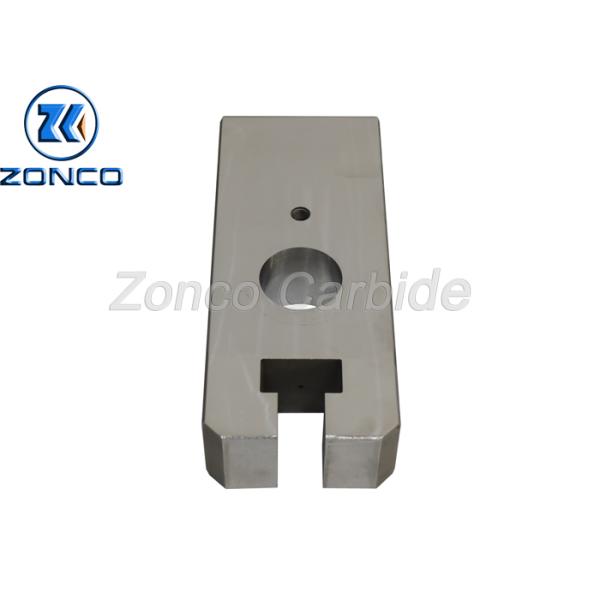

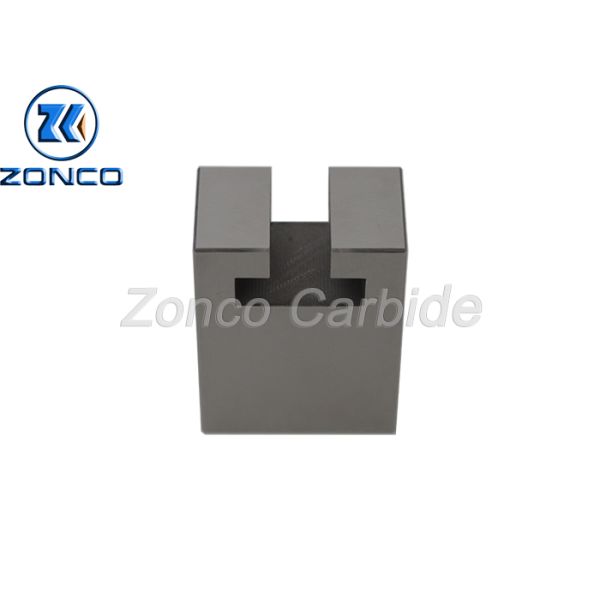

Anti Wear Hard Facing ZK10X ZK8 Tungsten Carbide Spare Parts
Anti Wear Hard Facing ZK10X ZK8 Tungsten Carbide Spare Parts
Anti Wear Hard Facing ZK10X ZK8 Tungsten Carbide Spare Parts
Anti Wear Hard Facing ZK10X ZK8 Tungsten Carbide Spare Parts
Anti Wear Hard Facing ZK10X ZK8 Tungsten Carbide Spare Parts
Anti Wear Hard Facing ZK10X ZK8 Tungsten Carbide Spare Parts
Anti Wear Hard Facing ZK10X ZK8 Tungsten Carbide Spare Parts
Anti Wear Hard Facing ZK10X ZK8 Tungsten Carbide Spare Parts
Anti Wear Hard Facing ZK10X ZK8 Tungsten Carbide Spare Parts
Anti Wear Hard Facing ZK10X ZK8 Tungsten Carbide Spare Parts
Anti Wear Hard Facing ZK10X ZK8 Tungsten Carbide Spare Parts
Anti Wear Hard Facing ZK10X ZK8 Tungsten Carbide Spare Parts
Specifications
Brand Name :
ZONCO
Model Number :
Customized
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou
MOQ :
1pcs
Price :
negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
1000 piece/pieces per month
Delivery Time :
30-35 working days
Packaging Details :
carton or wooden case. also can be customized as per your requirement.
Application :
oil and gas industry
feature :
Super wearable，preservative，High hardness，Strong impact resistance，
Grade :
ZK10X,ZK8
Name :
gate valve
Packing :
Wooden box
Color :
Silver
Description

High Performance Tungsten Carbide Gate With Anti-Wear Hard Facing

Gate valves or sluice valves are widely used within the oil and gas sectors to control the flow of fluids and gases.They are rarely used to regulate the flow,more commonly,they are a simple but effective way of either shutting off flow,or fully opening to allow maximum unobstructed flow.

Gate valves contain a tungsten carbide coated slab and this will have a hole in it to allow the flow of fluid or gas when open, and also a solid area which blocks the opening either side of the slab when closed.The slab moves up and down to open and close with tungsten carbide coated seats within the body of the valve to maintain a seal that stops the fluid or gas leaking into the body of the valve.

As the seats and alab are both hard faced with tungsten carbide.It is critical that they are perfectly flat.Two perfectly flat surfaces will form a seal that will not leak,but producing the flatness required on tungsten carbide can be difficult,particularly as the specifications become tighter and tighter as valves are designed to handle higher and higher pressures.

Products show

Anti Wear Hard Facing ZK10X ZK8 Tungsten Carbide Spare Parts

Anti Wear Hard Facing ZK10X ZK8 Tungsten Carbide Spare Parts

Anti Wear Hard Facing ZK10X ZK8 Tungsten Carbide Spare Parts
Common tungsten carbide grades

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
GradeWC%Co/Ni %Physical and mechanical propertiesGrain size (μm)Recommended application
Density (g/cm3)TRS (N/mm2)Hardness (HRA)
ZG01100015.3-15.5120095.50.3Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X96415.0-15.2160092.80.8-1.0Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG0694614.8-15.1250090.01.2Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X94614.8-15.1240091.51.0Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A94614.8-15.1215092.50.6-0.8
ZG0892814.6-14.9270089.01.2-1.6Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2901014.3-14.6380091.70.7Good general performance, suitable for casing and oil nozzle products
ZG11891114.3-14.7280088.51.2-1.6Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X881214.2-14.5300089.51.0-1.2Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15851513.8-14.2300086.51.2-1.6
ZG15X851513.8-14.2450089.00.7Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20802013.4-13.8310085.01.0Excellent wear resistance and toughness
ZN0694614.5-14.9200090.01.2Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN0991914.3-14.6230089.01.2-1.6
ZN11891114.0-14.3260088.01.2
