Tungsten Carbide Wear Resistant Sleeve For Frac Equipments
Tungsten Carbide Wear Resistant Sleeve For Frac Equipments
Tungsten Carbide Wear Resistant Sleeve For Frac Equipments
Tungsten Carbide Wear Resistant Sleeve For Frac Equipments
Specifications
Brand Name :
ZONCO
Model Number :
Customized
Certification :
ISO9001:2008
Place of Origin :
Zhuzhou
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/ per month
Delivery Time :
Generally it is 3-7 days if the goods are in stock. or it is 15-30 workdays if the goods are not in stock, it is according to quantity.
Packaging Details :
Interior packaging: plastic or paper box interior(20/30 kg a case). Exterior packaging: carton or wooden case. Also can be customized as per your requirement.
Features :
Excellent wear resistant and high hardness
Type :
Sleeve
Application :
Wellhead equipments
Size :
Customizable
Material :
Tungsten carbide, metal
Description

Tungsten Carbide Wear-Resistant Sleeve For Frac Equipments

Main product line:

Cemented carbide valve core

Hard alloy valve seat

Cemented carbide porous sleeve

Carbide labyrinth valve

Common alloy grades, physical and mechanical properties, and recommended applications

Grade Physical and mechanical properties
density(g/cm3) Flexural strength(N/mm2) hardness(HRA)
ZG01 15.3-15.5 1200 95.5
ZG06 14.8-15.1 2000 90.0
ZG6X 14.8-15.1 1860 91.8
ZG6A 14.8-15.1 2000 93.2
ZG08 14.6-14.9 2200 89.0
ZG11 14.3-14.7 2600 88.5
ZG12X 14.2-14.5 2850 89.5
ZG15 13.8-14.2 3000 86.5
ZG10.2 14.3-14.6 3500 91.5
ZN06 14.5-14.9 2000 90.0
ZN09 14.3-14.6 2300 89.0
ZN11 14.0-14.3 2600 88.0

Products Description:

The production and processing of high-strength tungsten carbide bushings can withstand long-term loads and have high chemical stability,
alkali, alcohol, ether, hydrocarbons, acid, oil, detergent, water (sea water), and has no smell , non-toxic, tasteless, non-rust
characteristics, its widely used in petrochemical industry for Submerged Oil Pump, slurry pump, water pump, Centrifugal Pump,etc.

Applications:

Tungsten carbide bushing are widely used and are a device for protecting a class of components. Its role and purpose in actual work have a lot to do with its application environment. Valve applications, bushings be installed in the valve stem cap trap, in order to reduce the valve leakage, to seal; bearing applications, the use of bush to reduce wear between the bearing and the shaft seat, avoid the gap between the shaft and the hole increases and so on.

pictures:

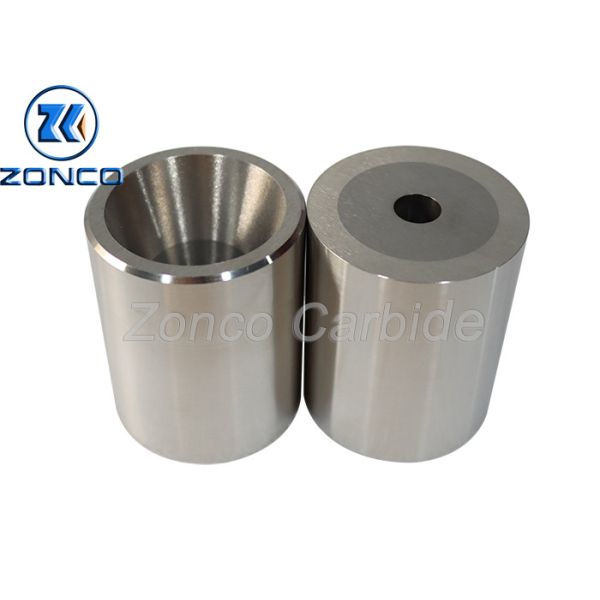

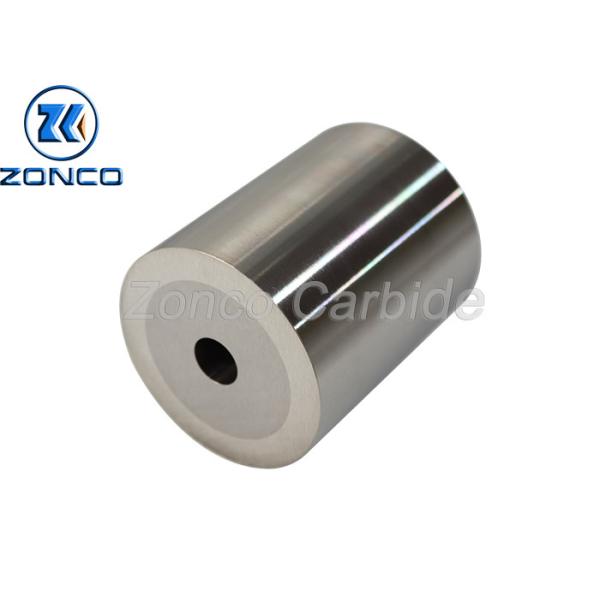

Tungsten Carbide Wear Resistant Sleeve For Frac EquipmentsTungsten Carbide Wear Resistant Sleeve For Frac Equipments

Advantages:

① Advanced process design

② Specialized in production

③ Unique material properties

④ Personalized customization

⑤ Whole process quality control system

⑥ Strong supply ability guaranteed
