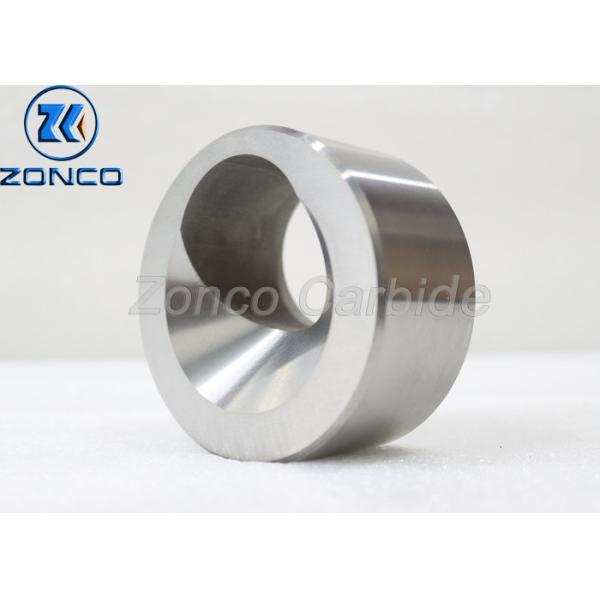

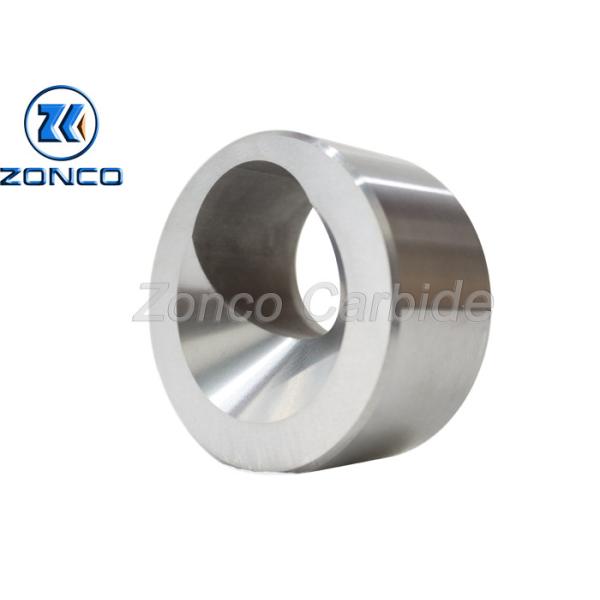

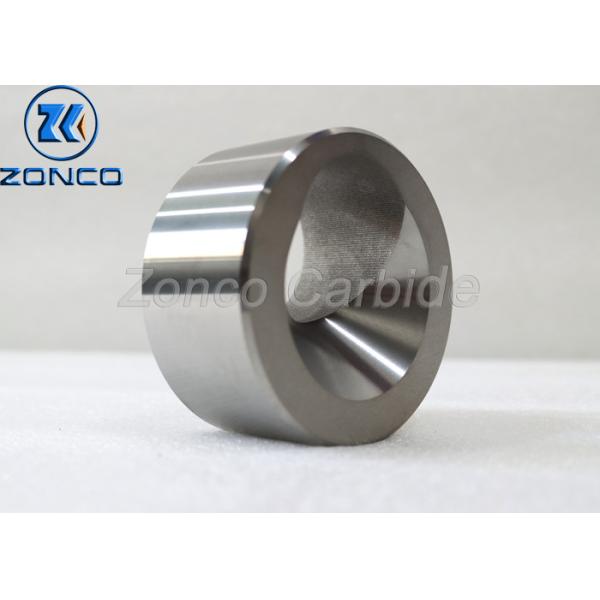

High Precision Grinding Tungsten Carbide Nozzle Wear Resistant
High Precision Grinding Tungsten Carbide Nozzle Wear Resistant
High Precision Grinding Tungsten Carbide Nozzle Wear Resistant
High Precision Grinding Tungsten Carbide Nozzle Wear Resistant
Specifications
Brand Name :
ZONCO
Model Number :
Customized
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
100000 piece/pieces per month
Delivery Time :
30-35 working days
Packaging Details :
carton or wooden case. Also can be customized as per your requirement.
Size :
OEM accepted, Customized Size
Material :
100% virgin raw material
Purduct name :
Tungsten carbide nozzle
Grade :
Customer's Request, YG6/YG8/YG15/YG20
Advantage :
High strength
Application :
Oil and gas industrial
Description

Excellent Wear Resistance High Precision Grinding Tungsten Carbide Nozzle


Ultra wear resistant

The tungsten carbide will provide a carefree extrusion experience. Its unparalleled wear resistance will ensure that both the nozzle diameter and flat will keep the same dimension, and so will your printed parts.
High Precision Grinding Tungsten Carbide Nozzle Wear Resistant






Faster speed

Due to the high thermal performance of the nozzle in general, the printing speed can be pushed even further without sacrificing the quality. The special shape inside the nozzle allowed by the manufacturing technique improves the flow where the diameter gets reduced, thus allowing a faster flow rate.

High Precision Grinding Tungsten Carbide Nozzle Wear Resistant

Low friction

The whole nozzle is electroless nickel plated for enhanced slippery properties. Plastic will slide on the nozzle instead of sticking to it. This result is cleaner parts and less dragging problems.




High Precision Grinding Tungsten Carbide Nozzle Wear Resistant











Common alloy grates,ghysical mechanical properties and recommended application

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
GradeWC%Co/Ni %Physical and mechanical propertiesGrain size (μm)Recommended application
Density (g/cm3)TRS (N/mm2)Hardness (HRA)
ZG01100015.3-15.5120095.50.3Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X96415.0-15.2160092.80.8-1.0Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG0694614.8-15.1250090.01.2Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X94614.8-15.1240091.51.0Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A94614.8-15.1215092.50.6-0.8
ZG0892814.6-14.9270089.01.2-1.6Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2901014.3-14.6380091.70.7Good general performance, suitable for casing and oil nozzle products
ZG11891114.3-14.7280088.51.2-1.6Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X881214.2-14.5300089.51.0-1.2Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15851513.8-14.2300086.51.2-1.6
ZG15X851513.8-14.2450089.00.7Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20802013.4-13.8310085.01.0Excellent wear resistance and toughness
ZN0694614.5-14.9200090.01.2Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN0991914.3-14.6230089.01.2-1.6
ZN11891114.0-14.3260088.01.2
