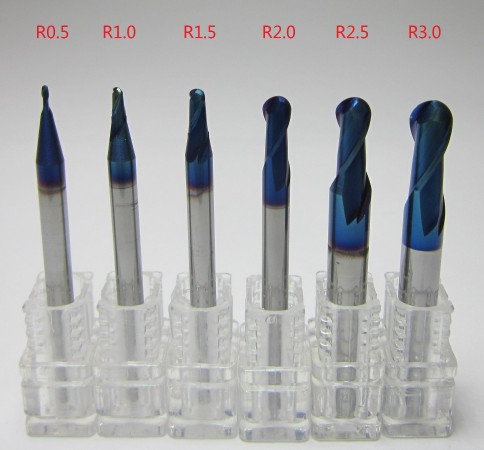

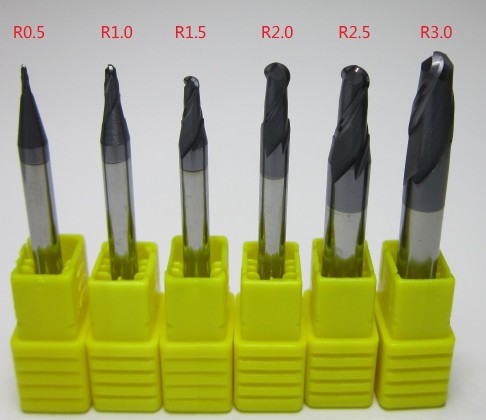

6mm 8mm 10 Mm AOL 100 Mm Solid Carbide End Mills HRC55 TiAlN Coating Ball Nose Milling Tools
6mm 8mm 10 Mm AOL 100 Mm Solid Carbide End Mills HRC55 TiAlN Coating Ball Nose Milling Tools
6mm 8mm 10 Mm AOL 100 Mm Solid Carbide End Mills HRC55 TiAlN Coating Ball Nose Milling Tools
6mm 8mm 10 Mm AOL 100 Mm Solid Carbide End Mills HRC55 TiAlN Coating Ball Nose Milling Tools
Specifications
Brand Name :
SUPAL
Place of Origin :
Changzhou,Jiangsu,China
MOQ :
5PCS
Payment Terms :
T/T
Supply Ability :
10000000PCS
Delivery Time :
7-15Days
Packaging Details :
1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs.
Standard :
Taiwan
Grain Size :
0.8UM
Service :
OEM
Type :
Ball Nose
Flute :
2
Material :
Top Qulaity
Price :
Negotiable
Model Number :
OEM
Description

6mm 8mm 10 Mm AOL 100 Mm Solid Carbide End Mills HRC55 TiAlN Coating Ball Nose Milling Tools

Quick Detail:

0.6-0.8um Mirco grain size solid carbide rod

TIALN Coating ,high Aluminium (Black),Middle Aluminium(Purple)

Made by 5 AXIS CNC grinder

Checked by Zoller Inspection Equipment

Workpiece upto HRC50

1 piece packing.

Standard Type

Coating Paramter
Item ALTiN TiALN TiSiN
Hardness(HV) 3200 2800 3600
Thickness(UM) 2.5-3 2.5-3 3
Oxidation 900 800 1000
Friction 0.3 0.3 0.45
Colour Black Purple Copper

Description:

Micro Grain Szie 0.6-0.8um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting long tool life,from roughing to finishing processing,reduce time of changing cutters,improving efficency of machine,saving time of making moulds.Suggest to process iron and steel upto HRC55,Middle-low speed.

Carbide Rod:Wc:90%,Co:10%,TRS:3800N/mm2, Grain Size:0.6-0.8um

6mm 8mm 10 Mm AOL 100 Mm Solid Carbide End Mills HRC55 TiAlN Coating Ball Nose Milling Tools

Applications:

Fit for milling quenching and tempered steel.stainless steel.nickel alloy and Titanium alloy,Cast iron,enhanced composited material with fiberglass,Also fit for milling copper.

Description:

Ultra-Fine Grain Szie 0.5-0.6um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting long tool life,from roughing to finishing processing,reduce time of changing cutters,improving efficency of machine,saving time of making moulds.Suggest to process iron and steel upto HRC55,Middle-High speed.

Carbide Rod:Wc:88%,Co:12%,TRS:4000N/mm2, Grain Size:0.5-0.6um

Specifications:

Order No Cutting Diameter Flute Length Shank Diameter A.O.L
d l D L
R6×24×12D×100L×2F 12 24 12 100

we also supply other long size ball nose end mill

Order No Cutting Dia Shank Cutting Length AOL
d D l L
R3.0×12×6D×100L×2F 6 6 12 100
R3.0×12×6D×150L×2F 6 6 12 150
R4.0×16×8D×75L×2F 8 8 16 75
R4.0×16×8D×100L×2F 8 8 16 100
R4.0×16×8D×150L×2F 8 8 16 150
R5.0×20×10D×100L×2F 10 10 20 100
R5.0×20×10D×150L×2F 10 10 20 150
R6.0×24×12D×100L×2F 12 12 24 100
R6.0×24×12D×150L×2F 12 12 24 150
R7.0×28×14D×150L×2F 14 14 28 150
R8.0×32×16D×150L×2F 16 16 32 150
R10×40×20D×150L×2F 20 20 40 150
