Standard Size Carbide End Mill Carbide Rounding Corner Radius End Mill 4mm Size Chart Helical Tungsten Solid Round Nose
Standard Size Carbide End Mill Carbide Rounding Corner Radius End Mill 4mm Size Chart Helical Tungsten Solid Round Nose
Standard Size Carbide End Mill Carbide Rounding Corner Radius End Mill 4mm Size Chart Helical Tungsten Solid Round Nose
Standard Size Carbide End Mill Carbide Rounding Corner Radius End Mill 4mm Size Chart Helical Tungsten Solid Round Nose
Standard Size Carbide End Mill Carbide Rounding Corner Radius End Mill 4mm Size Chart Helical Tungsten Solid Round Nose
Standard Size Carbide End Mill Carbide Rounding Corner Radius End Mill 4mm Size Chart Helical Tungsten Solid Round Nose
Specifications
Brand Name :
SUPAL
Place of Origin :
Changzhou,Jiangsu,China
MOQ :
5PCS
Payment Terms :
T/T
Supply Ability :
10000000PCS
Delivery Time :
7-15Days
Packaging Details :
1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs.
Type :
Corner Radius End Mill
Flute :
4Flutes
Material :
Top Raw Material
Coating :
Tisin
Suitable for :
Cooper.Cast Iron.Carbon Steel.Mould Steel
Processing Type :
Metal Cutting Tools
Price :
To be negotiated
Model Number :
OEM
Description

Standard Size Carbide End Mill Carbide Rounding Corner Radius End Mill 4mm Size Chart Helical Tungsten Solid Round Nose

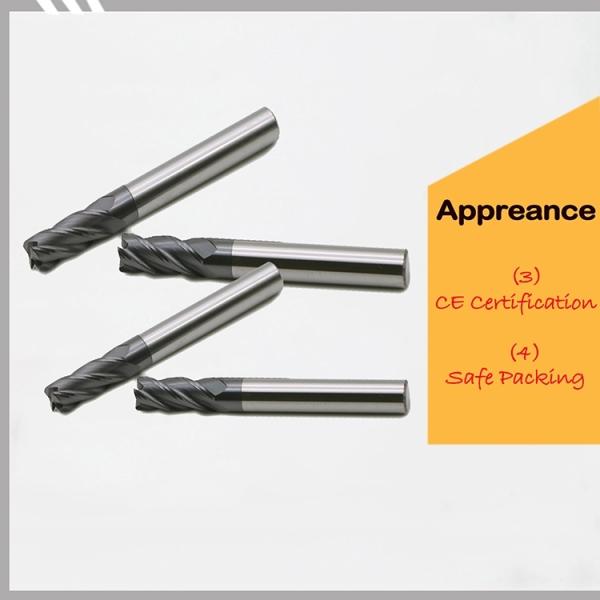

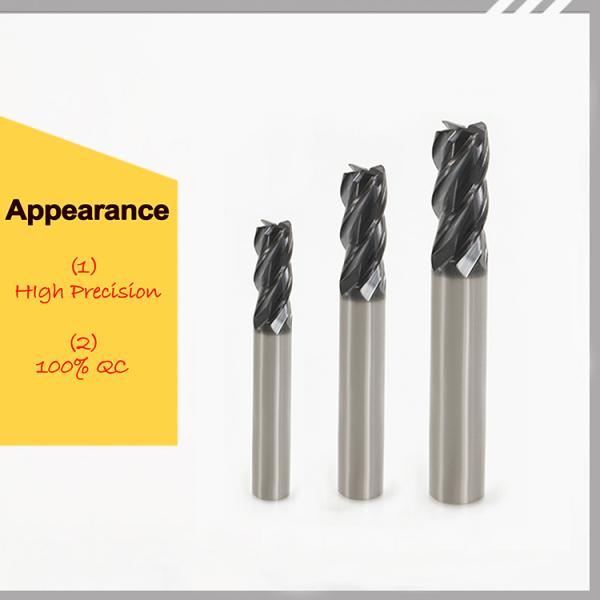

(1) What's The Appearance Of HRC55 Corner Radius End Mill ?

-----All Pictures Are 100% Real Shot .

Standard Size Carbide End Mill Carbide Rounding Corner Radius End Mill 4mm Size Chart Helical Tungsten Solid Round Nose

Standard Size Carbide End Mill Carbide Rounding Corner Radius End Mill 4mm Size Chart Helical Tungsten Solid Round Nose

Which Type Materials We Can Choose ?

-----If You Have Your Demand Materials Brand, We Also Can Produce.

Hardness / HRC50 Wc=90% Co=10% HV30=1571 TRS=3750N/mm2 HRA=91.8 Grain Size=0.6 µm
Hardness / HRC55 Wc=88% Co=12% HV30=1700 TRS=4000N/mm2 HRA=92.2 Grain Size=0.4 µm
Hardness / HRC60 Wc=87% Co=13% HV30=1700 TRS=4000N/mm2 HRA=93.2 Grain Size=0.4 µm
Hardness / HRC65 Wc=92% Co=8% TRS=3800N/mm2 HRA=93.6 Grain Size<0.3 µm
Hardness / HRC65 Wc=91% Co=9% HV30=1950 TRS=4000N/mm2 HRA=93.9 Grain Size=0.2 µm

The Prices Advantage Of German Cobalt Carbide Cutting Tools Is Obvious.

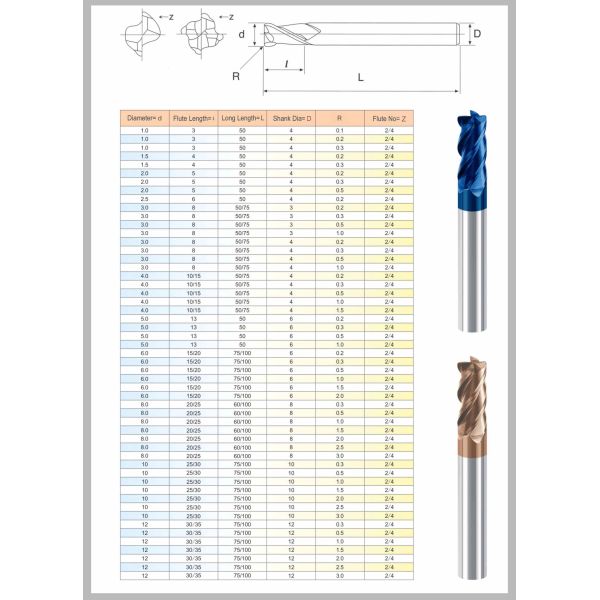

What's The Diameters Of Carbide Corner Radius End Mill ?

-----If Demand Diameters Are Not In The List, We Can Customized .

Standard Size Carbide End Mill Carbide Rounding Corner Radius End Mill 4mm Size Chart Helical Tungsten Solid Round Nose

If your inquire diameters are not in the list, you can tell us !
