10mm Shank Precision Cutting Tools 4 Flute 45 Degrees TICN Coated Roughing End Mill
10mm Shank Precision Cutting Tools 4 Flute 45 Degrees TICN Coated Roughing End Mill
10mm Shank Precision Cutting Tools 4 Flute 45 Degrees TICN Coated Roughing End Mill
10mm Shank Precision Cutting Tools 4 Flute 45 Degrees TICN Coated Roughing End Mill
Specifications
Brand Name :
SUPAL
Place of Origin :
Changzhou,Jiangsu,China
MOQ :
5PCS
Payment Terms :
T/T
Supply Ability :
10000000PCS
Delivery Time :
7-15Days
Packaging Details :
1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs.
Type :
Roughing End Mill
Coating :
TiAIN, Altin/Tialn/Tin/Tisin/Nano
Suitable for :
Carbon Steel,Cooper.Cast Iron.Carbon Steel.Mould Steel
Processing Type :
Metal Cutting Tools
Usage :
Cutting Machine
Controlling Mode :
CNC Tooling System
Price :
To be negotiated
Model Number :
OEM
Description

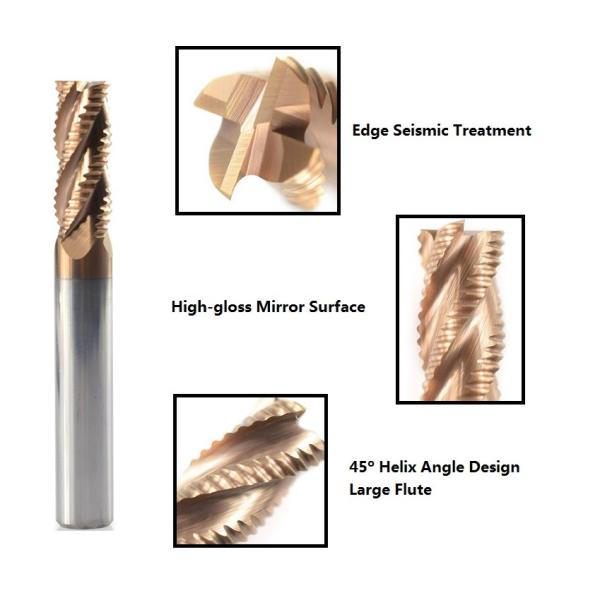

10mm Shank 4 Flute Carbide End Mill 45 Degrees TICN Coated Roughing End Mill CNC Milling Cutter

Features:

1. Suitable for roughing cuts in softwood, hardwood and man made board

2. Carbide for maximum durability in abrasive material.

3. Up-cut spiral for optimum chip flow and improved finish on bottom of board

4. For use in routers and machining centers with CNC control.

10mm Shank Precision Cutting Tools 4 Flute 45 Degrees TICN Coated Roughing End Mill

10mm Shank Precision Cutting Tools 4 Flute 45 Degrees TICN Coated Roughing End Mill

10mm Shank Precision Cutting Tools 4 Flute 45 Degrees TICN Coated Roughing End Mill

We also have other sizes, if you want customized sizes please feel free to contact us. Thanks

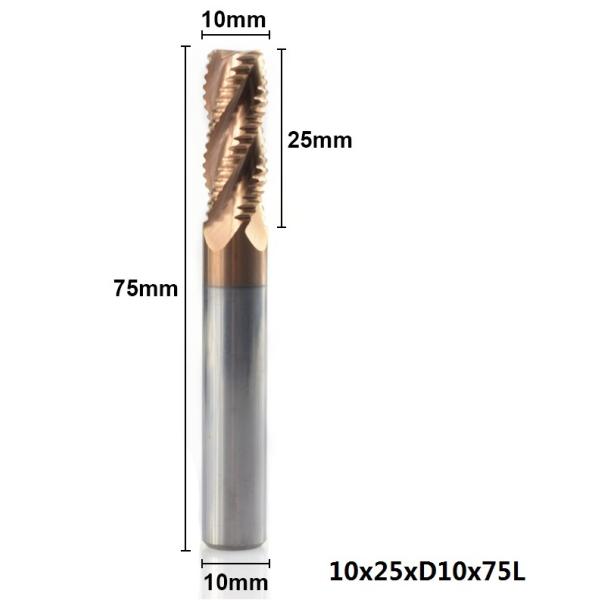

Diameter (mm) Overall length (mm) Material
4 50 alloy
6 50 alloy
8 60 alloy
10 75 alloy
12 75 alloy
14 100 alloy
16 100 alloy
18 100 alloy
20 100 alloy

Why do you choose our products?

1) Selected Material

HRC45 HRC55 HRC60 HRC65
YG10X YG10.2&WF25(Taiwan) K44&K40(Germany) H10F(Sweden)
Grain size: 0.7um Grain size: 0.6um Grain size: 0.5um Grain size: 0.5um
Co: 10% Co: 10% Co: 12% Co: 10%
Flexural strength: 3320N/mm² Flexural strength: 4000N/mm² Flexural strength: 4300N/mm² Flexural strength: 4300N/mm²

2) Unique Coating

Item AlTiN TiAIN TiSiN nACo
Hardness (HV) 3200 2800 3600 42 (GPA)
Thickness (UM) 2.5-3 2.5-3 3 3
Oxidation Temp (°) 900 800 1000 1200
Friction Coeffient 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue

Packing

10mm Shank Precision Cutting Tools 4 Flute 45 Degrees TICN Coated Roughing End Mill
