Solid Carbide End Mills For Stainless Steel / HRC45 Rough Cut End Mill With Tialn Coated
Solid Carbide End Mills For Stainless Steel / HRC45 Rough Cut End Mill With Tialn Coated
Solid Carbide End Mills For Stainless Steel / HRC45 Rough Cut End Mill With Tialn Coated
Solid Carbide End Mills For Stainless Steel / HRC45 Rough Cut End Mill With Tialn Coated
Specifications
Brand Name :
SUPAL
Place of Origin :
Changzhou
MOQ :
5PCS
Payment Terms :
T/T
Supply Ability :
10000000PCS
Delivery Time :
7-15Days
Packaging Details :
1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs.
Coating :
AlTiN,TiAlN,No coated
Diameter :
4-20mm
Material :
Carbide
Flute :
3/4
Export port :
Shanghai
Suitable :
steel/stainless steel/wood
Price :
To be negotiated
Model Number :
OEM
Description

4 flute roughing end mills are used in applications such as Profiling, Slotting, Plunging and Contouring.

Roughing end mills, also known as ripping cutters or hoggers, are designed to remove large amounts of metal quickly and more efficiently than standard end mills.

4 flute roughing end mills remove large chips for heavy cuts, deep slotting and rapid stock removal on low to medium carbon steel and alloy steel prior to a finishing application.

Solid Carbide End Mills For Stainless Steel / HRC45 Rough Cut End Mill With Tialn CoatedSolid Carbide End Mills For Stainless Steel / HRC45 Rough Cut End Mill With Tialn Coated​

1.Selected high-quality raw materials(Customized Available,OEM or ODM Available)

Grade YG10X YG10.2 WF25(Taiwan) K44 K40 H10F
Hardness HRC45 HRC55 HRC60 HRC65
Grain Size 0.7um 0.6um 0.5um 0.4um
Cobalt Content 10% 10% 12% 12.50%
Flexural strength 3320N/mm2 4000N/mm2 4300N/mm2

4300N/mm2

Solid Carbide End Mills For Stainless Steel / HRC45 Rough Cut End Mill With Tialn Coated

2.Super Coating

TiN TiCN CrN AlTiN TiSiN Nano DLC
Hardness(HV) 2700 3000 2500 3200 3600 42(GPA) 3600
Thickness(UM) 2-6 2-6 2-6 2.5-3 3 3 0.5-10
Oxidation Temp(°) 600 400 700 900 1000 1200 350
Friction Coefficient 0.4 0.3 0.2 0.3 0.45 0.4 0.06
Color Gold Steel Gray Silver Gray Black Copper Blue Silver Gray

Solid Carbide End Mills For Stainless Steel / HRC45 Rough Cut End Mill With Tialn Coated

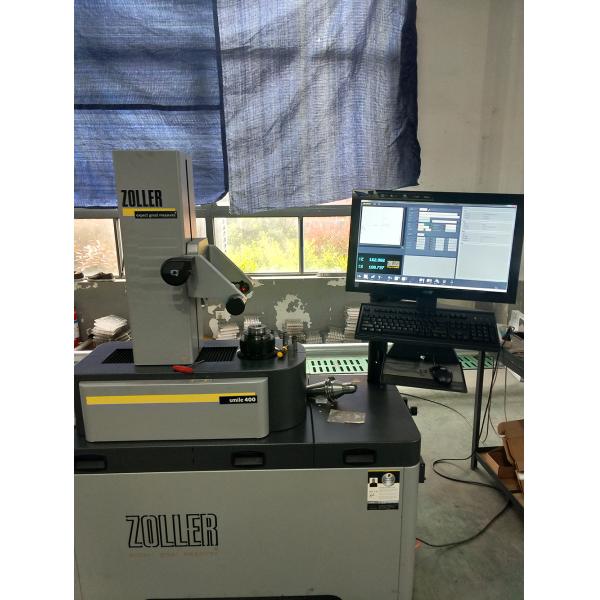

3.Strict measurement sequence Five step test

1.Test the rod after grinding

2.Test when produce the tools

3.Test all parameter after the CNC process

4.Test flutes after coating

5.Test the packing before shipping

Solid Carbide End Mills For Stainless Steel / HRC45 Rough Cut End Mill With Tialn Coated

4.Packaging Shipping

1.Laser brand and dimensions on the body of cutters, print labels.

2.5PCS or 10PCS each group,sealed with air bubble wrap, pack into bigger carton.

3.Air express such like DHL,TNT,FEDEX,China post as your requirement.We will make sure the delivery cost is lowest.

Solid Carbide End Mills For Stainless Steel / HRC45 Rough Cut End Mill With Tialn Coated

5.Delivery Time

1.For samples, we dispatch your tools in 2-7 workdays.

2.For formal orders, We delivery tools in 7-30 workdays.

Solid Carbide End Mills For Stainless Steel / HRC45 Rough Cut End Mill With Tialn Coated
