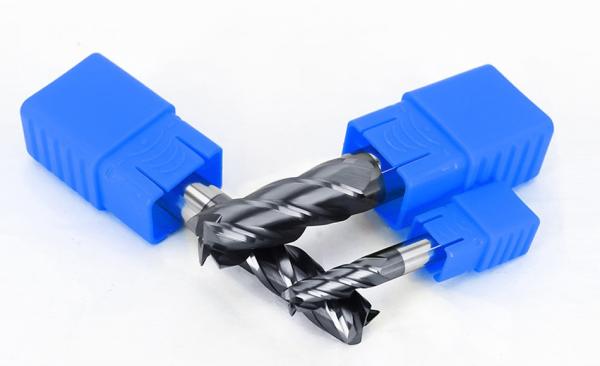

1mm - 4mm Round Ball Nose Carbide End Mill Tungsten Steel Spiral Tools
1mm - 4mm Round Ball Nose Carbide End Mill Tungsten Steel Spiral Tools
1mm - 4mm Round Ball Nose Carbide End Mill Tungsten Steel Spiral Tools
1mm - 4mm Round Ball Nose Carbide End Mill Tungsten Steel Spiral Tools
Specifications
Brand Name :
SUPAL
Place of Origin :
Changzhou,Jiangsu,China
MOQ :
5PCS
Payment Terms :
T/T
Supply Ability :
10000000PCS
Delivery Time :
7-15Days
Packaging Details :
1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs.
Product Name :
Corner Radius End Mill
Hrc :
45/50/55/60
Coating :
ALTin
Blade number :
4Flutes
Suitable for :
mould steel, tool steel, l, carbon steel, Thermal treatment quenching, etc
Price :
To be negotiated
Model Number :
OEM
Description
Product parameters

Name: HRC50 ° 4 Flute hardened Tungsten steel Milling cutter

Spiral angle: 35 ° Coating: ALTin

Blade number: 4 Flute HRC: 50°

Applicable machine tools: CNC machining center, engraving machine, high-speed machine, etc.

Materials used: mould steel, tool steel, l, carbon steel, Thermal treatment quenching, etc

Main features: Germany Walter five-axis grinding machine, large core diameter design, chip removal smooth, enhance tool rigidity, easy angle; use fine grain grinding wheel processing, reduce surface grinding wheel trace, coating treatment more uniform, longer service life.

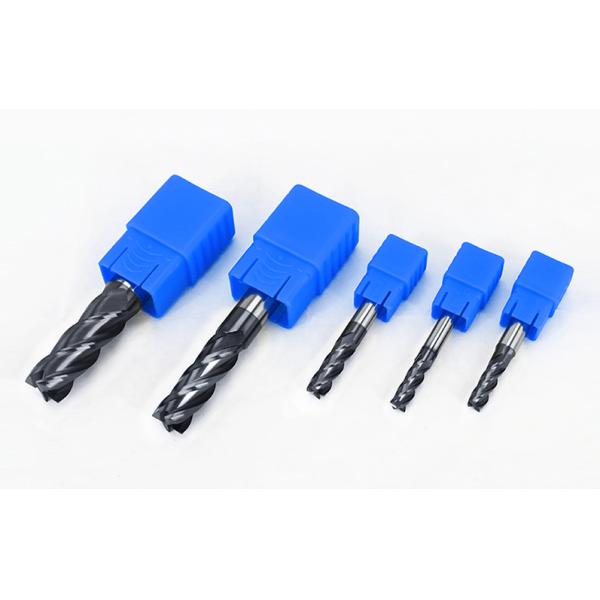

1mm - 4mm Round Ball Nose Carbide End Mill Tungsten Steel Spiral Tools

High hardness and wear resistance of tungsten steel base metal
Adopting new fine particle tungsten steel base metal, it has high wear resistance and strength, and belongs to milling cutter with high hardness and high speed cutting.

Champion quality long service life
The thermal treatment material below HRC50° can be processed directly by high speed rough process to fine process. The cutting face milling / short guillotine milling is the main way to reduce the frequency of tool change and to save the production time in advance.

Wide scope of processing saves processing cost
The milling cutter to imitate machining, semi-finishing,fine-machine recommended cutting materials within the HRC50°

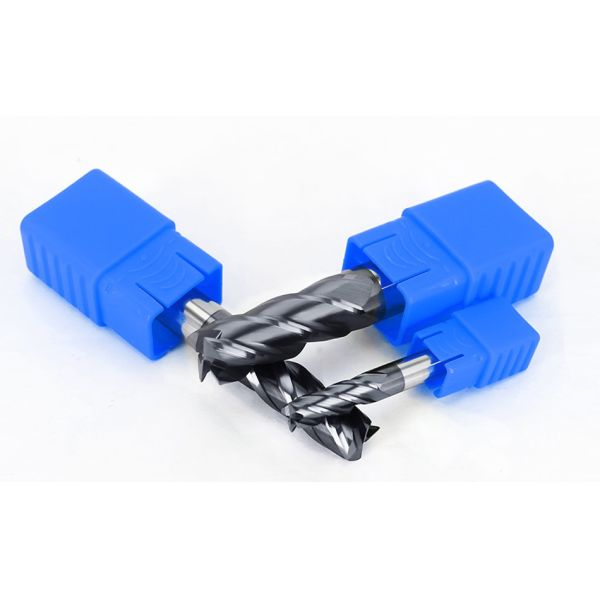

1mm - 4mm Round Ball Nose Carbide End Mill Tungsten Steel Spiral Tools

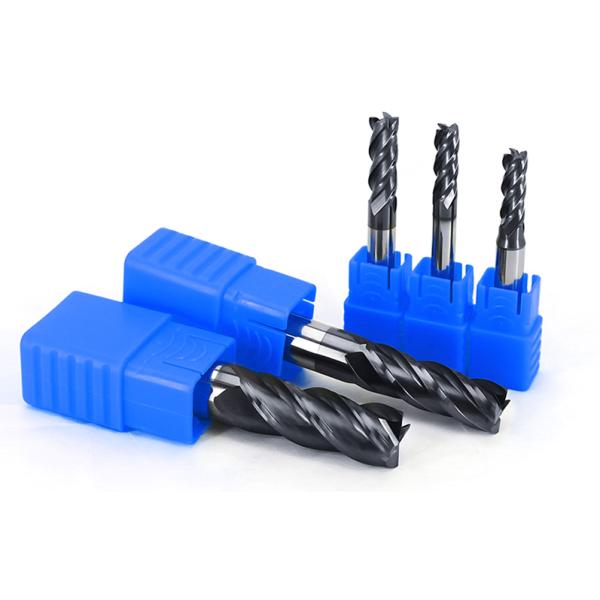

1mm - 4mm Round Ball Nose Carbide End Mill Tungsten Steel Spiral Tools

1mm - 4mm Round Ball Nose Carbide End Mill Tungsten Steel Spiral Tools

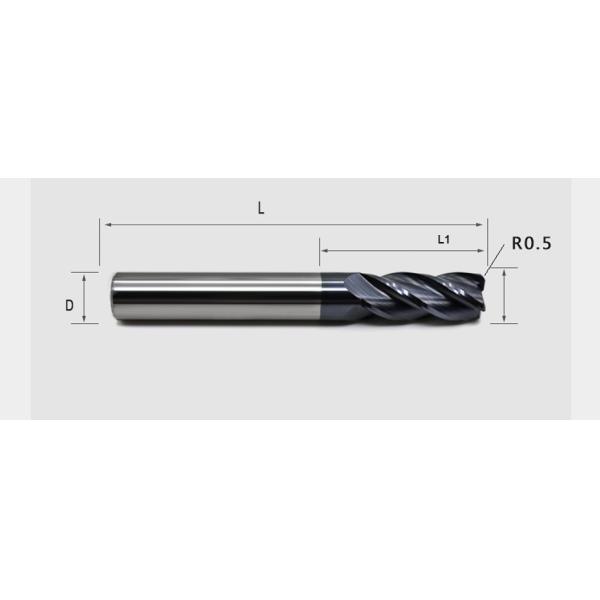

Number Model D1 R D L1 L
1 1.0R0.2x4Tx50L 1 0.2 4 2 50
2 1.5R0.2x4Tx50L 1.5 0.2 4 3 50
3 2.0R0.2x4Tx50L 2 0.2 4 4 50
4 2.0R0.5x4Tx50L 2 0.5 4 4 50
5 3.0R0.2x4Tx50L 3 0.2 4 6 50
6 3.0R0.5x4Tx50L 3 0.5 4 6 50
7 3.0R1.0x4Tx50L 3 1 4 6 50
8 4.0R0.2x4Tx50L 4 0.2 4 8 50
9 4.0R0.5x4Tx50L 4 0.5 4 8 50
10 4.0R1.0x4Tx50L 4 1 4 8 50
11 6.0R0.2x4Tx50L 6 0.2 6 12 50
12 6.0R0.5x4Tx50L 6 0.5 6 12 50
13 6.0R1.0x4Tx50L 6 1 6 12 50
14 6.0R1.5x4Tx50L 6 1.5 6 12 50
15 8.0R0.5x4Tx60L 8 0.5 8 16 60
16 8.0R1.0x4Tx60L 8 1 8 16 60
17 8.0R1.5x4Tx60L 8 1.5 8 16 60
18 8.0R2.0x4Tx60L 8 2 8 16 60
19 10.0R0.5x4Tx75L 10 0.5 10 20 75
20 10.0R1.0x4Tx75L 10 1 10 20 75
21 10.0R1.5x4Tx75L 10 1.5 10 20 75
22 10.0R2.0x4Tx75L 10 2 10 20 75
23 12.0R0.5x4Tx75L 12 0.5 12 24 75
24 12.0R1.0x4Tx75L 12 1.0 12 24 75
25 12.0R1.5x4Tx75L 12 1.5 12 24 75
26 12.0R2.0x4Tx75L 12 2.0 12 24 75


Conventional cutting parameters

Cutting material Carbon steel Carbon steel Alloy steel,tool steel Alloy steel,tool steel Alloy steel,tool steel Alloy steel,tool steel Heat-resitant steeland alloy heat-resistant Heat-resitant steeland alloy heat-resistant Heat-resitant steeland alloy heat-resistant Heat-resitant steeland alloy heat-resistant
Cuting hardness Under 30(HRC) Under 30(HRC) 30-35(HRC) 30-35(HRC) 35-40(HRC) 35-40(HRC) 40-45(HRC) 40-45(HRC) 45-55(HRC) 45-55(HRC)
Edge diameter Rotation rate Feed Rotation rate Feed Rotation rate Feed Rotation rate Feed Rotation rate Feed
1 16000 120 9500 75 7600 70 5700 66 3200 24
2 9500 160 5700 105 4500 95 3300 82 1900 35
3 7400 220 4500 140 3600 125 2600 110 1500 46
4 6400 300 3800 180 3000 160 2200 150 1270 60
5 5700 370 3400 220 2700 220 2000 180 1150 75
6 5300 480 3200 290 2500 260 1900 220 800 96
8 4000 480 2400 290 1900 260 1400 220 800 96
10 3200 480 1900 290 1500 250 1100 210 640 93
12 2600 460 1600 280 1300 250 950 210 530 93
16 2000 360 1200 220 950 200 710 170 400 72
20 1600 290 950 170 760 150 570 135 320 57
