High Precision Carbide Punches And Dies HIP Sintered Good Grinding Surface
High Precision Carbide Punches And Dies HIP Sintered Good Grinding Surface
Specifications
Brand Name :
Zhuzhou Shield
Certification :
ISO9001:2000
Place of Origin :
Zhuzhou, China(Mainland)
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
20tons/month
Packaging Details :
inner small carton box and then big carton box
Type :
Cold heading dies
Chemical Compostion :
15%-25% Co-WC
Density :
13.1-13.6g/cm3
Trial order :
Accepted
Description

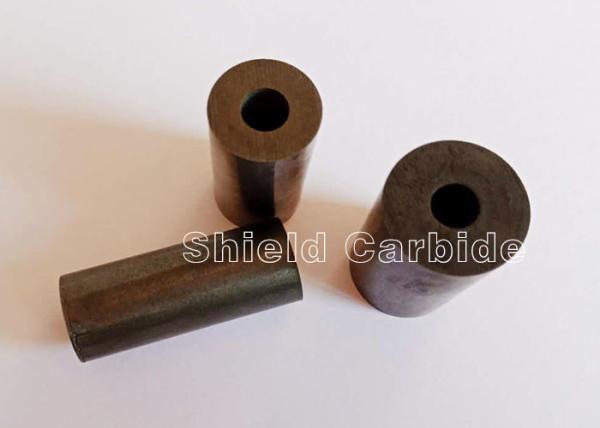

High Precision Carbide Punches And Dies HIP Sintered Good Grinding Surface

Tungsten carbide dies ( carbide die ) used for hot forging or cold punching, cold heading standard parts,bearing, screws and nuts. With high impact resistance, toughness and wear resistance.

Size: According to customers' request

Grade: YG15C YG20C YG25C

Advantage:

1. 15 year's manufacturing experience. High hardness with stable quality

2. 100% virgin raw material guaranted the long life time

3. Fast delivery time

4. Good grinding surface

Grade specifications is as below:

Commonly used tungsten carbide heading dies
Grade Performance Performance&application recommended
Density Hardness Bend Strength
G/Cm3 HRA N/mm2
YG11 14.4 88.5 2600 Forming or stamping dies for metal powders and nonmental powders.
YG15 14 87.5 2800 For fabricating drawing dies of steel tubesand rods under high
compressibility ratio;punching,stamping,forging tools under large stress.
YG20 13.5 85.5 3200 For fabricating of stamping dies for watch parts, spring plates of musical
instruments, battery jars,small sized steel balls,screws,screw caps.
YG16C 13.9 85.5 2900 Impact resistance, hot&forging dies etc.
YG18C 13.7 84.5 3100 Impact resistance forging dies,hot-press forging dies and rollers.
YG20C 13.5 83.5 3300 Dies for wear resistant or impact resistant application.
YG22C 13.3 83 3500 Nut forming dies and high impact resistance forging dies.
YG25C 13.1 82.5 3600 Stainless bolt header dies and rollers.

FAQ

Q:What's the payment term?

A:We accept TT, 30% deposit and 70% balance against copy of BL

Q: Tell me the standard of package?

A: For the small capacity, it use carton, but for big capacity, we should use strong wooden case metal drum for protection.

Q: Made by customized drawing or not?

A: We have mold design department. So we could produce goods with our own molds and with your drawing.

Q: Could you offer Form A or C/O ?

A: It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q: Do you make OEM?Would you accept to use our logo?

A: If you have good quantity, it absolute no problem to do OEM . We have laser machine, can . . laser your logo and sizes on the body of products , also can print labels.

Q: Where is your market?

A: Our products are popular in Germany, America, Brazil, India, Russia, Indonesia, Philippines, . . Italy, Pakistan South Africa, Egypt and etc.
