Heat Resistant Triangle Carbide Inserts , Cemented Carbide Inserts For Steel Machining
Heat Resistant Triangle Carbide Inserts , Cemented Carbide Inserts For Steel Machining
Specifications
Brand Name :
SHIELD
Model Number :
WCMX040208FN
Place of Origin :
Zhuzhou, China(Mainland)
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
10000PCS PER MONTH
Delivery Time :
In stock within 5 days
Packaging Details :
10PCS with plastic box and carton package
Material :
100% Virgin Tungsten carbide
Workpiece :
Steel, Cast iron
Process Type :
Roughing, Semi-finishing,
Usage :
Milling inserts
Product code :
WCMX040208FN
Hardness :
HRC91-93.5
color :
yellow, gray, color
Application :
For turning and milling
Type :
Inserts for face milling
Description

Heat Resistant Triangle Carbide Inserts , Cemented Carbide Inserts For Steel Machining

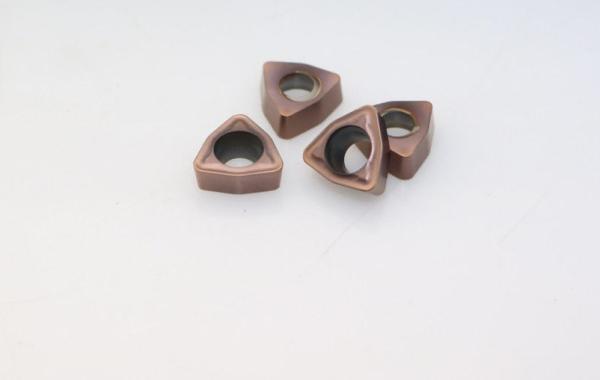

Triangle Carbide Inserts

CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness. Can bear high temperatures. For steel and steel castings finishing to roughing processing,Continue cutting to light interrupted cutting. Machining of gray and ductile iron at low to medium cutting speed. For hard materials continuous cutting and light interrupted cutting from finishing to roughing. Wet and dry processing.

The combination for thick coating and substrate with good hardness and impact resistance gives the inserts excellent impact resistance and stability under high temperature, and improves wear resistance of inserts. Inserts also satisfied the requirements of high speed and high feed rate when machining cast iron.

GRADE TABLE

Grade Coated Application
YBC151 CVD P05-P20, finishing of P-type material
YBC152 CVD P05-P20, finishing of P-type material
YBC251 CVD P10-P30, semi-finishing of P-type material
YBC252 CVD P10-P35, semi-finishing of P-type material
YBC351 CVD P20-P40, roughing of P-type material
YBM151 CVD M05-M30, finishing, semi-finishing and roughing of M-type material
YBM153 CVD BEST CHOICE for Roughing of M-type material
YBM251 CVD M10-M30, semi-finishing and roughing of M-type material
YBM253 CVD M10-M35, semi-finishing and roughing of M-type material
YBD052 CVD K05-K15, finishing of K-type material, esp. for high speed dry machining of gray cast iron
YBD102 CVD K05-K20, finishing of K-type material, esp. for high speed machining of Nodular cast iron
YBD151 CVD K05-K25, finishing of K-type material, semi-finishing of K-type material
YBD152 CVD K05-K25, finishing and semi-finishing of K-type material
YBD252 CVD K15-K35, semi-finishing and roughing of K-type material
YBG102 PVD K01-K10, S10-S20, finishing of K.S-type material
YBG105 PVD finishing and semi-finishing for materials difficult to cut
YBG202 PVD P10-P30, M10-M30, K10-K20, S20-S30, semi-finishing of P, M, K-type material; Roughing of S-type material
YBG205 PVD M05-M30, semi-finishing and roughing of M-type material
YBG302 PVD P10-P40, M10-M30, K20-K40, S20-S30, semi-finishing and roughing of P.M.K.S-type material
YNG151 Uncoated Cermet P05-P20, M05-M20, K05-K20, wide application in finish machining of P. M. K-type material
YNG151C Coated Cermet P01-P20, M01-M20, K01-K20, wide application in finish machining of P. M. K-type material
YC10 Cemented P05-P20, finishing of P-type material
YC40 Cemented P20-P40, rouging of P-type material
YD051 Cemented K05-K15, finishing of K-type material
YD101 Cemented N05-N30, S05-S15, finishing and semi-finishing of H-type material, finishing of S-type material
YD201 Cemented K10-K35, semi-finishing and rouging of K-type material


ADVANTAGES of SHIELD

1) Professional and experienced for carbide inserts and cutting tools
2) Top quality, with high precision and perfect working performance
3) Better and better service with competitive price
4) Quick delivery: 7 Days ( in stock)
5) Full range of cutting tools, turning, milling, threading, parting&grooving, boring.....


Features:
1. Large production and reliable after service
2. Best technical assistance
3. High hardness, High efficiency, high stability
4. Professional inspection and high precision
5. High precision, easy replacement, general use
6. Moderate price, good quality, short delivery time
7. Support OEM service

Heat Resistant Triangle Carbide Inserts , Cemented Carbide Inserts For Steel Machining
