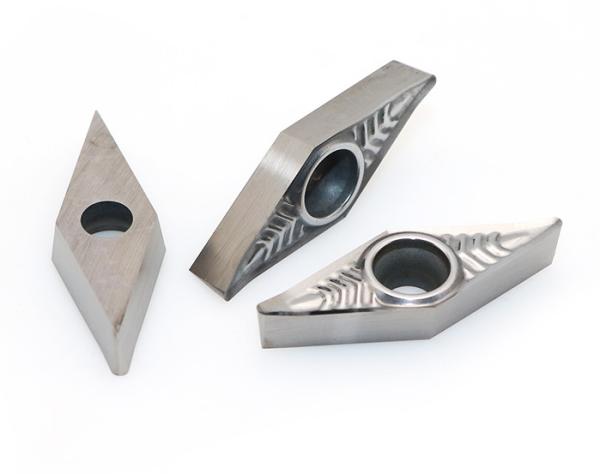

VCGT160408 Carbide Turning Inserts , Uncoated Carbide Inserts For Aluminum
VCGT160408 Carbide Turning Inserts , Uncoated Carbide Inserts For Aluminum
VCGT160408 Carbide Turning Inserts , Uncoated Carbide Inserts For Aluminum
VCGT160408 Carbide Turning Inserts , Uncoated Carbide Inserts For Aluminum
Specifications
Brand Name :
SHIELD
Model Number :
VCGT160408
Place of Origin :
Zhuzhou, China( Mainland)
MOQ :
100000 pcs per month
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C, L/C, VISA,
Supply Ability :
100000 pcs per month
Delivery Time :
5 days if in stock, 30 days for production
Packaging Details :
10 pcs per plastic box, 50 boxes per carton
Material :
100% Virgin tungsten carbide
Usage :
CNC machinery parts
Item name :
Carbide aluminum inserts
Model number :
VCGT160408
Grade :
YD101
Hardness :
90-92HRA
Workpiece :
Aluminum, wood etc
MOQ :
10PCS
Coated :
Uncoated
Color :
Uncoated for Aluminum
Application :
External Turning Inserts
Description

VCGT160408 Carbide Turning Inserts , Uncoated Carbide Inserts For Aluminum

Feature Advantage:
The insert adopts special surface technology, which greatly improves the surface quality of the insert, effectively reduces the cutting force, reduces the bonding between the insert surface and the material to be processed, and greatly improves the stability of the insert.
With special sintering technology, the impact resistance and wear resistance of the cutting edge are enhanced to improve the resistance of the cutting edge.
The unique cutting edge skeleton design achieves the perfect combination of blade toughness and resistance to plastic deformation.


Technology:
1.Incorporate latest molding, coating, edge preparation,and other manufacturing technology.
2.Coatings provide highpeed capability and are engineered from finishing to hevy roughing,the ostcoat treatment reduces coating stresses,improves coating adhesion,and improves workpiece finish.
3.Application areas: Machining of cast iron, nonferrous alloy, chill cast iron, hard steel, stainless steeland other non-metallic.

GRADE TABLE

Grade Coated Application
YBC151 CVD P05-P20, finishing of P-type material
YBC152 CVD P05-P20, finishing of P-type material
YBC251 CVD P10-P30, semi-finishing of P-type material
YBC252 CVD P10-P35, semi-finishing of P-type material
YBC351 CVD P20-P40, roughing of P-type material
YBM151 CVD M05-M30, finishing, semi-finishing and roughing of M-type material
YBM153 CVD BEST CHOICE for Roughing of M-type material
YBM251 CVD M10-M30, semi-finishing and roughing of M-type material
YBM253 CVD M10-M35, semi-finishing and roughing of M-type material
YBD052 CVD K05-K15, finishing of K-type material, esp. for high speed dry machining of gray cast iron
YBD102 CVD K05-K20, finishing of K-type material, esp. for high speed machining of Nodular cast iron
YBD151 CVD K05-K25, finishing of K-type material, semi-finishing of K-type material
YBD152 CVD K05-K25, finishing and semi-finishing of K-type material
YBD252 CVD K15-K35, semi-finishing and roughing of K-type material
YBG102 PVD K01-K10, S10-S20, finishing of K.S-type material
YBG105 PVD finishing and semi-finishing for materials difficult to cut
YBG202 PVD P10-P30, M10-M30, K10-K20, S20-S30, semi-finishing of P, M, K-type material; Roughing of S-type material
YBG205 PVD M05-M30, semi-finishing and roughing of M-type material
YBG302 PVD P10-P40, M10-M30, K20-K40, S20-S30, semi-finishing and roughing of P.M.K.S-type material
YNG151 Uncoated Cermet P05-P20, M05-M20, K05-K20, wide application in finish machining of P. M. K-type material
YNG151C Coated Cermet P01-P20, M01-M20, K01-K20, wide application in finish machining of P. M. K-type material
YC10 Cemented P05-P20, finishing of P-type material
YC40 Cemented P20-P40, rouging of P-type material
YD051 Cemented K05-K15, finishing of K-type material
YD101 Cemented N05-N30, S05-S15, finishing and semi-finishing of H-type material, finishing of S-type material
YD201 Cemented K10-K35, semi-finishing and rouging of K-type material

COMPATIBLE TOOLHOLDERS

ADVANTAGES of SHIELD

1) Professional and experienced for carbide inserts and cutting tools
2) Top quality, with high precision and perfect working performance
3) Better and better service with competitive price
4) Quick delivery: 7 Days ( in stock)
5) Full range of cutting tools, turning, milling, threading, parting&grooving, boring.....
