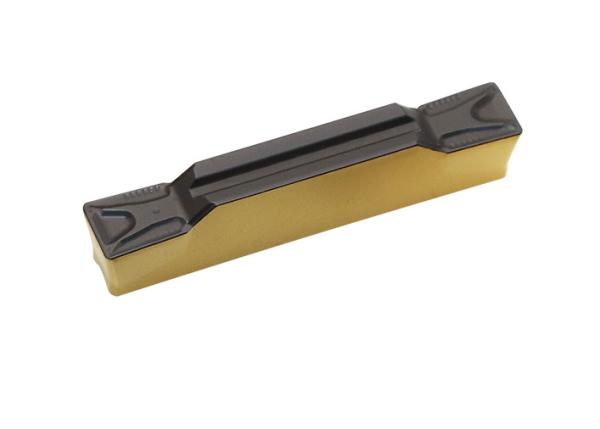

Tungsten Carbide Parting And Grooving Inserts N123H2-0400-GM Chip Breaker
Technology:
1. Incorporate latest molding, coating, edge preparation,and other manufacturing technology.
2. Coatings provide highpeed capability and are engineered from finishing to hevy roughing,the ostcoat treatment reduces coating stresses,improves coating adhesion,and improves workpiece finish.
3. Application areas: Machining of cast iron, nonferrous alloy, chill cast iron, hard steel, stainless steeland other non-metallic.
Feature Advantage:
It meets various processing needs such as parting, grooving, profiling, and turning.
The special structure reduces the cutting resistance by 20%, reduces the vibration, the cutting process is light, the chip removal is smooth, and the ideal machined surface quality is achieved.
A variety of series, to meet parting, external grooving, face grooving, profiling, turning and other processing needs.
The cutting process becomes lighter and the chip removal is smoother, achieving the desired surface quality.
The same width insert can be matched with the corresponding various types of shank, with the minimum number of inserts, fully meet the requirements of grooving and turning of the outer circle, inner hole and end face, greatly reducing tool inventory cost and management cost.
Considering different materials, working conditions and other complex requirements, a variety of insert structures, pressing, precision grinding series, to meet the needs of different applications. A reasonable mix of coatings for steel, stainless steel and cast iron machining.
GRADE TABLE
Grade | Coated | Application |
YBC151 | CVD | P05-P20, finishing of P-type material |
YBC152 | CVD | P05-P20, finishing of P-type material |
YBC251 | CVD | P10-P30, semi-finishing of P-type material |
YBC252 | CVD | P10-P35, semi-finishing of P-type material |
YBC351 | CVD | P20-P40, roughing of P-type material |
YBM151 | CVD | M05-M30, finishing, semi-finishing and roughing of M-type material |
YBM153 | CVD | BEST CHOICE for Roughing of M-type material |
YBM251 | CVD | M10-M30, semi-finishing and roughing of M-type material |
YBM253 | CVD | M10-M35, semi-finishing and roughing of M-type material |
YBD052 | CVD | K05-K15, finishing of K-type material, esp. for high speed dry machining of gray cast iron |
YBD102 | CVD | K05-K20, finishing of K-type material, esp. for high speed machining of Nodular cast iron |
YBD151 | CVD | K05-K25, finishing of K-type material, semi-finishing of K-type material |
YBD152 | CVD | K05-K25, finishing and semi-finishing of K-type material |
YBD252 | CVD | K15-K35, semi-finishing and roughing of K-type material |
YBG102 | PVD | K01-K10, S10-S20, finishing of K.S-type material |
YBG105 | PVD | finishing and semi-finishing for materials difficult to cut |
YBG202 | PVD | P10-P30, M10-M30, K10-K20, S20-S30, semi-finishing of P, M, K-type material; Roughing of S-type material |
YBG205 | PVD | M05-M30, semi-finishing and roughing of M-type material |
YBG302 | PVD | P10-P40, M10-M30, K20-K40, S20-S30, semi-finishing and roughing of P.M.K.S-type material |
YNG151 | Uncoated Cermet | P05-P20, M05-M20, K05-K20, wide application in finish machining of P. M. K-type material |
YNG151C | Coated Cermet | P01-P20, M01-M20, K01-K20, wide application in finish machining of P. M. K-type material |
YC10 | Cemented | P05-P20, finishing of P-type material |
YC40 | Cemented | P20-P40, rouging of P-type material |
YD051 | Cemented | K05-K15, finishing of K-type material |
YD101 | Cemented | N05-N30, S05-S15, finishing and semi-finishing of H-type material, finishing of S-type material |
YD201 | Cemented | K10-K35, semi-finishing and rouging of K-type material |
ADVANTAGES of SHIELD
FAQ:
Q1: Is your company a trading one or a factory?
A1: Factory
Q2: How do I pay for my purchase
A2:Escrow, Credit card, Western union, Paypal, MoneyGram,T/T, are all accepted.
Q3: How about the delivery?
A3: 1-5 days if in stock, once you paid.
Q4: Do you accept trial order?
A4: Sure we can. Free samples are provided any time.
Q5: Is the MOQ fixed?
A5: For mass orders, the MOQ can't be less than production requirements of factory. For stock items, order quantity can be negotiable.
Q6: Are customized products accepted?
A6: We can design and produce according to your request.
