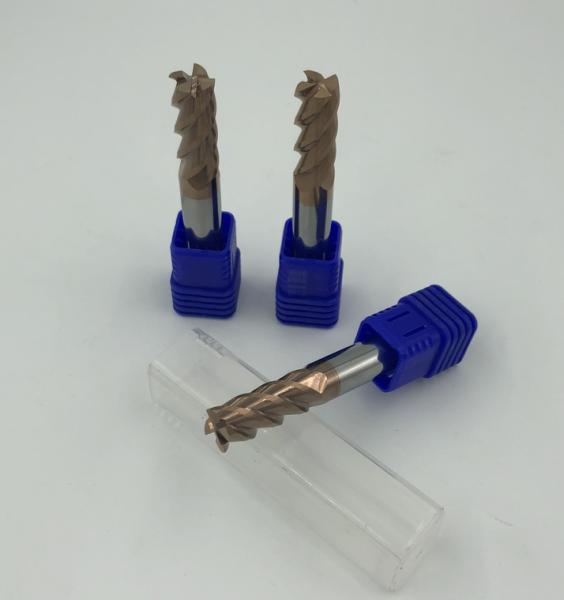

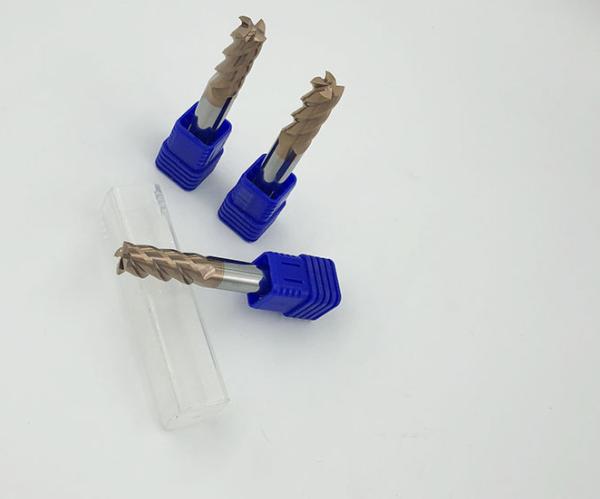

Original High Performance Carbide End Mills , Milling Cutters End Mill
Original High Performance Carbide End Mills , Milling Cutters End Mill
Original High Performance Carbide End Mills , Milling Cutters End Mill
Original High Performance Carbide End Mills , Milling Cutters End Mill
Specifications
Brand Name :
ZCCCT
Place of Origin :
Zhuzhou (Mainland)
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
5 days in stock
Packaging Details :
1 pcs end mill in plastic tube, 10 tubes in a small box, and packed in a carton box(around15 kgs/carton)
Material :
100% virgin tungsten carbide
Diameter :
D2-D20mm
Type :
Solid carbide endmill
Overall length :
50 mm-100 mm
Coating :
As per requirement
HRC :
45, 55,65
CNC Machine :
Anca
Controlling Mode :
Computer Control
Coating color :
As per requirements
Helix angle :
35 degree
Description
Original ZCCCT Good wear resistance 4 flutes square end mill/solid carbide endmills for stainless steel
Product Description

1. ZCCCT Original raw micro grain material, high hardness and T.R.S.

a, Co: 10%,Wc:90%
b, TRS: >3600 N/mm2
c, HRA: 91.8-92.4, HRC:45/55/60/65
d, Grain size: 0.4-0.6μm
e, Helix angle: 30°-45 °

Diameter of cutting edge: 0.2-0.9mm; 1-20mm

Diameter of rods: 4-20mm Length: 50-100mm

Cutting Form: Square,Ball nose, Corner Radius, Taper Flute, etc.

Flutes No.: 1-6 .

Features:

Allows perfect execution of the work

Featuring centre cutting straight flutes

Can be offered with different cutting & shank diameters

Also featuring different flute lengths and overall length

2.Other products: drills,reamer, tool holders, ER collet, boring cutters, carbide inserts, cutter heads,etc.

3.Application and usage

Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.

4. Super coating:

TiSiN TiAlN AlTiN TiCN or Blue Nano Coating,

Item AlTiN TiAiN TiSiN nAcO
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp( ° ) 900 800 1000 1200
Friction 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue

improve tool life, reduce the coefficient of friction.

Our advantages:

1.Solid carbide lasting long life in hardened steels, Grain size carbide, high toughness,high-wearing feature.

2.Non-standard can be customized according to customer's requirements

3.We have produce ability to satisfy your orders,another manufacturing bases will becompeleted in the near month

5.More than 20 years professional experience

Super raw material

HRC45 HRC55 HRC60 HRC65
YG10X YG10.2 &WF25(Taiwan) K44 & K40 (German) H10F (Sweden)

Grain Size:0.7um
Co:10 %
Flexural strength:

3320N/mm2

Grain Size:0.6um
Co:10 %
Flexural strength:

4000N/mm2

Grain Size:0.5um
Co:12 %
Flexural strength:

4300N/mm2

Grain Size:0.5um
Co:10 %
Flexural strength:

4300N/mm2

Super coating

Item AlTiN TiAIN TiSiN nACo
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 900 800 1000 1200
Friction Coeffient 0.3 0.3 0.45 0.4
Color Black Violet Copper

Blue
