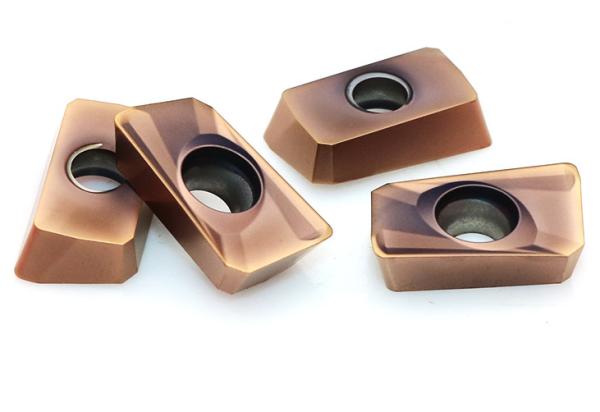

TiCN Coated Carbide Indexable Milling Inserts Roughing / Semi - Finishing Process
TiCN Coated Carbide Indexable Milling Inserts Roughing / Semi - Finishing Process
Specifications
Brand Name :
SHIELD
Model Number :
APMT1604PDER
Place of Origin :
Zhuzhou, China(Mainland)
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T
Supply Ability :
10000PCS PER MONTH
Delivery Time :
In stock within 5 days
Packaging Details :
10PCS with plastic box and carton package
Material :
Tungsten carbide
Coating :
TiCN
Workpiece :
Steel
Process Type :
Roughing, Semi-finishing,
Usage :
Milling inserts
Product code :
APMT1604PDER
Hardness :
HRC91-93.5
color :
yellow, gray, color
Application :
For turning and milling
Type :
Inserts for face milling
Description

TiCN Coated Carbide Indexable Milling Inserts Roughing / Semi - Finishing Process

Product Features

· Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
· Multi Layer coating TiC/Al2O3/TiN
· Good toughness, high strength in use and versatility for roughing, medium roughing of steel, alloy steel and cast-iron, especially for high speed and quick cutting
· Use for slotting and slab or straddle milling

1. Up to 30% higher productivity and profitability.
2. Coated suface enable to get longer tool life.
3. Good abrasion resistance and toughness
Technology:
1. Incorporate latest molding, coating, edge preparation,and other manufacturing technology.
2. Coatings provide highpeed capability and are engineered from finishing to hevy roughing,the ostcoat treatment reduces coating stresses,improves coating adhesion,and improves workpiece finish.
3. Application areas: Machining of cast iron, nonferrous alloy, chill cast iron, hard steel, stainless steeland other non-metallic.

GRADE TABLE

Grade Coated Application
YBC151 CVD P05-P20, finishing of P-type material
YBC152 CVD P05-P20, finishing of P-type material
YBC251 CVD P10-P30, semi-finishing of P-type material
YBC252 CVD P10-P35, semi-finishing of P-type material
YBC351 CVD P20-P40, roughing of P-type material
YBM151 CVD M05-M30, finishing, semi-finishing and roughing of M-type material
YBM153 CVD BEST CHOICE for Roughing of M-type material
YBM251 CVD M10-M30, semi-finishing and roughing of M-type material
YBM253 CVD M10-M35, semi-finishing and roughing of M-type material
YBD052 CVD K05-K15, finishing of K-type material, esp. for high speed dry machining of gray cast iron
YBD102 CVD K05-K20, finishing of K-type material, esp. for high speed machining of Nodular cast iron
YBD151 CVD K05-K25, finishing of K-type material, semi-finishing of K-type material
YBD152 CVD K05-K25, finishing and semi-finishing of K-type material
YBD252 CVD K15-K35, semi-finishing and roughing of K-type material
YBG102 PVD K01-K10, S10-S20, finishing of K.S-type material
YBG105 PVD finishing and semi-finishing for materials difficult to cut
YBG202 PVD P10-P30, M10-M30, K10-K20, S20-S30, semi-finishing of P, M, K-type material; Roughing of S-type material
YBG205 PVD M05-M30, semi-finishing and roughing of M-type material
YBG302 PVD P10-P40, M10-M30, K20-K40, S20-S30, semi-finishing and roughing of P.M.K.S-type material
YNG151 Uncoated Cermet P05-P20, M05-M20, K05-K20, wide application in finish machining of P. M. K-type material
YNG151C Coated Cermet P01-P20, M01-M20, K01-K20, wide application in finish machining of P. M. K-type material
YC10 Cemented P05-P20, finishing of P-type material
YC40 Cemented P20-P40, rouging of P-type material
YD051 Cemented K05-K15, finishing of K-type material
YD101 Cemented N05-N30, S05-S15, finishing and semi-finishing of H-type material, finishing of S-type material
YD201 Cemented K10-K35, semi-finishing and rouging of K-type material

Application

Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems

coated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications

Designed for heavy roughing to semi-finishing of all steels

Used in a wide range of materials and applications






TiCN Coated Carbide Indexable Milling Inserts Roughing / Semi - Finishing ProcessTiCN Coated Carbide Indexable Milling Inserts Roughing / Semi - Finishing Process
