Carbide Lathe Tools 12mm Boring Bar For CNC Lathe Machine
Carbide Lathe Tools 12mm Boring Bar For CNC Lathe Machine
Carbide Lathe Tools 12mm Boring Bar For CNC Lathe Machine
Carbide Lathe Tools 12mm Boring Bar For CNC Lathe Machine
Carbide Lathe Tools 12mm Boring Bar For CNC Lathe Machine
Carbide Lathe Tools 12mm Boring Bar For CNC Lathe Machine
Carbide Lathe Tools 12mm Boring Bar For CNC Lathe Machine
Carbide Lathe Tools 12mm Boring Bar For CNC Lathe Machine
Specifications
Brand Name :
BENEMETAL
Model Number :
DIA08MM-DIA32MM , LENGTH100MM-400MM
Certification :
ISO9001:2008
Place of Origin :
ZHUZHOU
MOQ :
5pc
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000 KGS per month
Delivery Time :
5-8 working days or negotiable
Packaging Details :
Standard or customized package
Dia :
8-32mm
Length :
80-400mm
Usage :
CNC Machine Tool
Advantage :
Carbide Factory for more than 20 years
Chemical composition :
WC+CO
Application :
CNC and Mechanical Working Industry
Accuracy :
High
Sample order :
Yes
Description

Description:

It is an important tool for machining in CNC machining, its purpose to prevent tools from shanking and to control, which also called CNC extension rod. With the development of CNC precision machining, CNC machining from 5000 rpm, 6000 rpm to 8000 rpm may reach more than 20,000 rpm. At this cutting speed, only the use of anti-vibration boring bar can achieve high-speed cutting requirements.

Application:

It is important for machning in CNC machning.

It’s purpose to prevent tools from shanking and to control.

Features of solid carbide seismic tool holder:

1.HIGH RIGIDITY

Improve surface finish and perpendicularity. Made of pure tungsten carbide material, excellent rigidity, good shock absorption, no distortion as lateral stiffness too large.

2. HIGH PRECISION

Improve dimensional precision. To extend the processing depth, enhance the accuracy of processing to achieve long, ultra-deep, ultra-high precision machining possibilities.

3. HIGH EFFICIENCY

No welding fracture concerns, emphasizing the variability of the replaceable tool head, a carbide bar can reach dozens of combinations, widely used in rough & precison processing industrial.

4. REDUCE COST

Extending the tool life. The holder can be reused even if the cutter is damaged and easy and convenient to replace. The tip and the holder are screwed and run in reverse direction to the splindle.

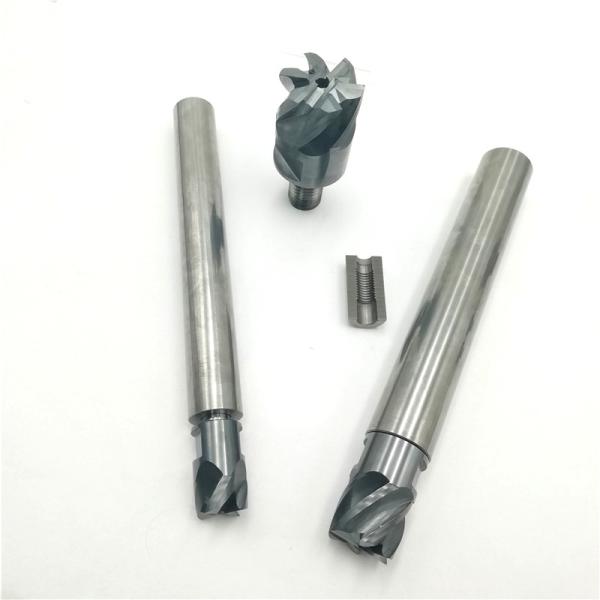

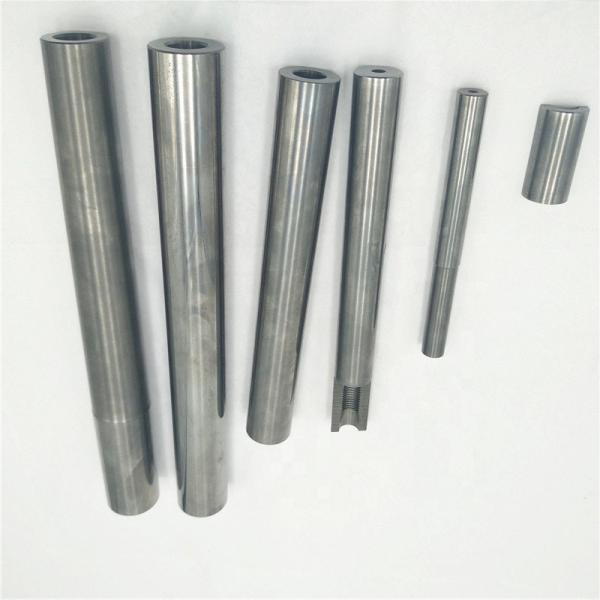

Customized Carbide Screwed Boring Bar

Carbide Lathe Tools 12mm Boring Bar For CNC Lathe Machine

Specification D (mm) D1 (mm) L L1 M
MFT10-50-150-M6 10 9.5 150 50 M6
MFT12-50-150-M6 12 11.5 150 50 M6
MFT16-50-150-M8 16 15.5 150 50 8
MFT16-50-200-M8 16 15.5 200 50 8
MFT16-70-250-M8 16 15.5 250 70 8
MFT16-85-120-M8 16 15.6 120 85 8
MFT16-95-150-M8 16 15.6 150 95 8
MFT16-145-200-M8 16 15.6 200 145 8
MFT20-40-100-M10 20 19.6 100 40 10
MFT20-90-150-M10 20 19.6 150 90 10
MFT20-140-200-M10 20 19.6 200 140 10
MFT25-40-100-M12 25 24.6 100 40 12
MFT25-85-150-M12 25 24.6 150 85 12
MFT25-135-200-M12 25 24.6 200 135 12
MFT32-70-200-M16 32 31 200 70 16
MFT32-130-300-M16 32 31 300 130 16
MFT32-150-350-M16 32 31 350 150 16
