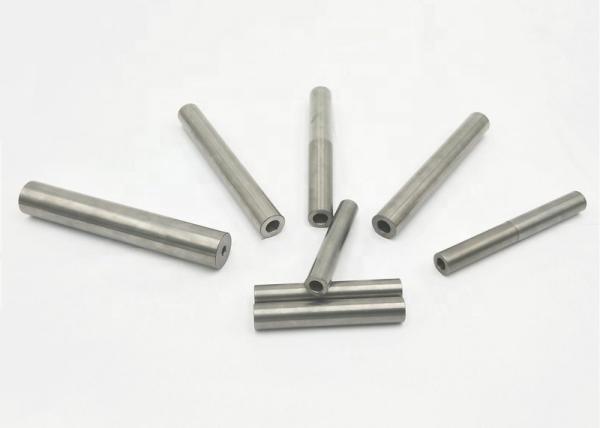

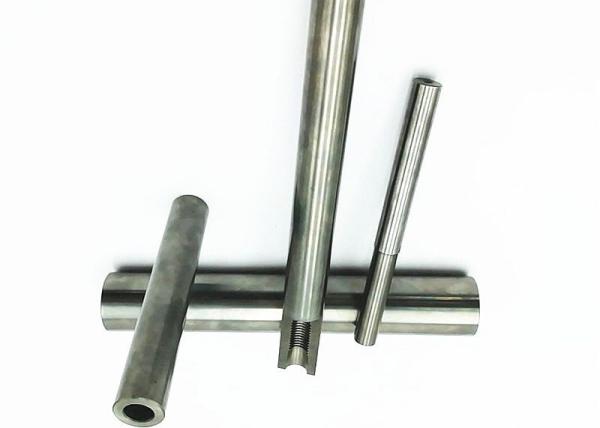

Good Anti Vibration Extra Depth Boring Tools Tungsten Carbide Boring Bar
Good Anti Vibration Extra Depth Boring Tools Tungsten Carbide Boring Bar
Good Anti Vibration Extra Depth Boring Tools Tungsten Carbide Boring Bar
Good Anti Vibration Extra Depth Boring Tools Tungsten Carbide Boring Bar
Good Anti Vibration Extra Depth Boring Tools Tungsten Carbide Boring Bar
Good Anti Vibration Extra Depth Boring Tools Tungsten Carbide Boring Bar
Specifications
Brand Name :
BENEMETAL
Model Number :
DIA08MM-DIA32MM , LENGTH100MM-400MM
Certification :
ISO9001:2008
Place of Origin :
ZHUZHOU
MOQ :
5pc
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000 KGS per month
Delivery Time :
5-8 working days or negotiable
Packaging Details :
Standard or customized package
Dia :
8-32mm
Length :
80-400mm
Usage :
CNC Machine Tool
Advantage :
Carbide Factory for more than 20 years
Chemical composition :
WC+CO
Color :
gray color for tungsten carbide rods with holes
Description

Description:

It is an important tool for machining in CNC machining, its purpose to prevent tools from shanking and to control, which also called CNC extension rod. With the development of CNC precision machining, CNC machining from 5000 rpm, 6000 rpm to 8000 rpm may reach more than 20,000 rpm. At this cutting speed, only the use of anti-vibration boring bar can achieve high-speed cutting requirements.

Application:

It is important for machning in CNC machning.

It’s purpose to prevent tools from shanking and to control.

Features of solid carbide bar:

1.High percision.

Improve dimensional precision. To extend the processing depth, enhance the accuracy of processing and to achieve long, ultra-deep, ultra-high precision machining possibilities.

2.High efficinecy.

No welding fracture concerns, emphasizing the variability of the replaceable tool head, a carbide bar can reach dozens of combinations, widely used in rough and precision processing industrial.

3. Reduce cost.

Extending the tool life. The holder can be reused even if the cutter is damaged and easy and convenient to replace.The tip and the holder are screwed and run in reverse direction to the splindle.

Types of Carbide Screwed Boring Bar:

Good Anti Vibration Extra Depth Boring Tools Tungsten Carbide Boring Bar

Specification D L D1 M
MFT-08-100-M4 8 100 8 M4
MFT-10-80-M5/M6 10 80 10 M5/M6
MFT-10-100-M5/M6 10 100 10 M5/M6
MFT-10-150-M5/M6 10 150 10 M5/M6
MFT-12-100-M6 12 100 12 M6
MFT-15-100-M8 15 100 15 M8
MFT-15-150-M8 15 150 15 M8
MFT-15-200-M8 15 200 15 M8
MFT-15.6-200-M8 15.6 200 15.6 M8
MFT-15.6-250-M8 15.6 250 15.6 M8
MFT-16-100-M8 16 100 16 M8
MFT-16-150-M8 16 150 16 M8
MFT-16-200-M8 16 200 16 M8
MFT-16-250-M8 16 250 16 M8
MFT-16-300-M8 16 300 16 M8
MFT-19-200-M10 19 200 19 M10
MFT-19-250-M10 19 250 19 M10
MFT-20-100-M10 20 100 20 M10
MFT-20-150-M10 20 150 20 M10
MFT-20-200-M10 20 200 20 M10
MFT-20-300-M10 20 300 20 M10
MFT24-150-M12 24 150 24 M12
MFT-24-200-M12 24 200 24 M12
MFT-24-300-M12 24 300 24 M12
MFT-25-150-M12 25 150 25 M12
MFT-25-200-M12 25 200 25 M12
MFT-25-250-M12 25 250 25 M12
MFT-25-300-M12 25 300 25 M12
MFT-32-150-M16 32 150 32 M16
MFT-32-200-M16 32 200 32 M16
MFT-32-250-M16 32 250 32 M16
MFT-32-300-M16 32 300 32 M16
MFT-32-350-M16 32 350 32 M16
MFT-32-400-M16 32 400 32 M16


Types of BT-MFT Caebide Boring Bar:

Good Anti Vibration Extra Depth Boring Tools Tungsten Carbide Boring Bar

Specification L L1 L2 D d1 M
BT30-MFT16-30-M8 130.4 65 30 15.6 8.5 8
BT30-MFT16-60-M8 160.4 95 60 15.6 8.5 8
BT30-MFT20-30-M10 130.4 65 30 19 10.5 10
BT30-MFT20-60-M10 160.4 95 60 19 10.5 10
BT30-MFT25-30-M12 130.4 65 30 24 12.5 12
BT30-MFT25-60-M12 160.4 95 60 24 12.5 12
BT30-MFT35-30-M16 130.4 65 30 31.8 17 16
BT30-MFT35-60-M16 160.4 95 60 31.8 17 16
BT40-MFT16-30-M8 130.4 65 30 15.6 8.5 8
BT40-MFT16-60-M8 160.4 95 60 15.6 8.5 8
BT40-MFT20-30-M10 130.4 65 30 19 10.5 10
BT40-MFT20-60-M10 160.4 95 60 19 10.5 10
BT40-MFT25-30-M12 130.4 65 30 24 12.5 12
BT40-MFT25-60-M12 160.4 95 60 24 12.5 12
BT40-MFT35-30-M16 130.4 65 30 31.8 17 16
BT40-MFT35-60-M16 160.4 95 60 31.8 17 16
BT50-MFT25-30-M12 130.4 65 30 24 12.5 12
BT50-MFT25-60-M12 160.4 95 60 24 12.5 12
BT50-MFT35-30-M16 130.4 65 30 31.8 17 16
BT50-MFT35-60-M16 160.4 95 60 31.8 17 16
