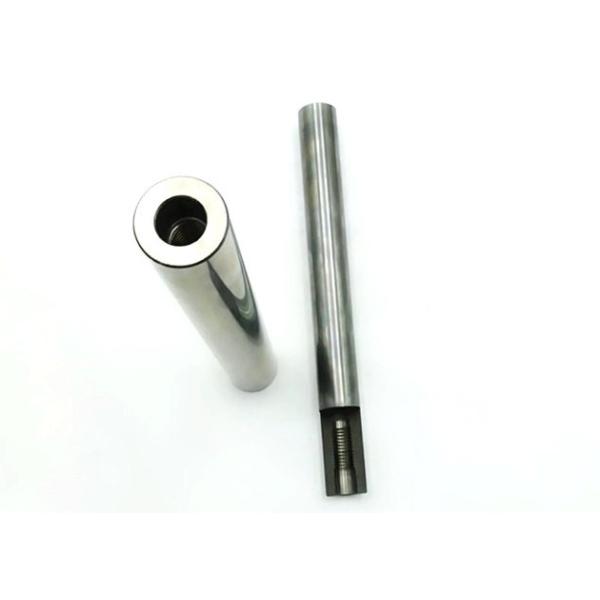

DIA19mm 150mm M10 Solid Carbide Boring Bar
DIA19mm 150mm M10 Solid Carbide Boring Bar
DIA19mm 150mm M10 Solid Carbide Boring Bar
DIA19mm 150mm M10 Solid Carbide Boring Bar
DIA19mm 150mm M10 Solid Carbide Boring Bar
DIA19mm 150mm M10 Solid Carbide Boring Bar
DIA19mm 150mm M10 Solid Carbide Boring Bar
DIA19mm 150mm M10 Solid Carbide Boring Bar
Specifications
Brand Name :
BENEMETAL
Model Number :
DIA19mm-150mm-M10
Certification :
ISO9001:2008
Place of Origin :
ZHUZHOU
MOQ :
5pc
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000 KGS per month
Delivery Time :
5-8 working days or negotiable
Packaging Details :
Standard or customized package
Dia :
19mm-150mm-M10
Length :
150mm
Usage :
CNC Machine Tool
Advantage :
Carbide Factory for more than 20 years
Sample :
have in stock
Application :
CNC and Mechanical Working Industry
Material :
Carbide
Sample order :
Yes
Description

Features of solid carbide bar:

1. High rigidity.

Improve surface finish and perpendicularity. Made of pure tungsten carbide material, excellent rigidity, good shock absorption, no distortion as lateral stiff-ness too large.

2.High percision.

Improve dimensional precision. To extend the processing depth, enhance the accuracy of processing and to achieve long, ultra-deep, ultra-high precision machining possibilities.

3.High efficinecy.

No welding fracture concerns, emphasizing the variability of the replaceable tool head, a carbide bar can reach dozens of combinations, widely used in rough and precision processing industrial.

4. Reduce cost.

Extending the tool life. The holder can be reused even if the cutter is damaged and easy and convenient to replace.The tip and the holder are screwed and run in reverse direction to the splindle.

Carbide Screwed Boring Bar

DIA19mm 150mm M10 Solid Carbide Boring Bar

Specification D L D1 M
MFT-08-100-M4 8 100 8 M4
MFT-10-80-M5/M6 10 80 10 M5/M6
MFT-10-100-M5/M6 10 100 10 M5/M6
MFT-10-150-M5/M6 10 150 10 M5/M6
MFT-12-100-M6 12 100 12 M6
MFT-15-100-M8 15 100 15 M8
MFT-15-150-M8 15 150 15 M8
MFT-15-200-M8 15 200 15 M8
MFT-15.6-200-M8 15.6 200 15.6 M8
MFT-15.6-250-M8 15.6 250 15.6 M8
MFT-16-100-M8 16 100 16 M8
MFT-16-150-M8 16 150 16 M8
MFT-16-200-M8 16 200 16 M8
MFT-16-250-M8 16 250 16 M8
MFT-16-300-M8 16 300 16 M8
MFT-19-200-M10 19 200 19 M10
MFT-19-250-M10 19 250 19 M10
MFT-20-100-M10 20 100 20 M10
MFT-20-150-M10 20 150 20 M10
MFT-20-200-M10 20 200 20 M10
MFT-20-300-M10 20 300 20 M10
MFT24-150-M12 24 150 24 M12
MFT-24-200-M12 24 200 24 M12
MFT-24-300-M12 24 300 24 M12
MFT-25-150-M12 25 150 25 M12
MFT-25-200-M12 25 200 25 M12
MFT-25-250-M12 25 250 25 M12
MFT-25-300-M12 25 300 25 M12
MFT-32-150-M16 32 150 32 M16
MFT-32-200-M16 32 200 32 M16
MFT-32-250-M16 32 250 32 M16
MFT-32-300-M16 32 300 32 M16
MFT-32-350-M16 32 350 32 M16
MFT-32-400-M16 32 400 32 M16

DIA19mm 150mm M10 Solid Carbide Boring Bar

Customized Carbide Screwed Boring Bar

DIA19mm 150mm M10 Solid Carbide Boring Bar

Specification D (mm) D1 (mm) L L1 M
MFT10-50-150-M6 10 9.5 150 50 M6
MFT12-50-150-M6 12 11.5 150 50 M6
MFT16-50-150-M8 16 15.5 150 50 8
MFT16-50-200-M8 16 15.5 200 50 8
MFT16-70-250-M8 16 15.5 250 70 8
MFT16-85-120-M8 16 15.6 120 85 8
MFT16-95-150-M8 16 15.6 150 95 8
MFT16-145-200-M8 16 15.6 200 145 8
MFT20-40-100-M10 20 19.6 100 40 10
MFT20-90-150-M10 20 19.6 150 90 10
MFT20-140-200-M10 20 19.6 200 140 10
MFT25-40-100-M12 25 24.6 100 40 12
MFT25-85-150-M12 25 24.6 150 85 12
MFT25-135-200-M12 25 24.6 200 135 12
MFT32-70-200-M16 32 31 200 70 16
MFT32-130-300-M16 32 31 300 130 16
MFT32-150-350-M16 32 31 350 150 16

DIA19mm 150mm M10 Solid Carbide Boring Bar


BT-MFT Caebide Boring Bar

DIA19mm 150mm M10 Solid Carbide Boring Bar

Specification L L1 L2 D d1 M
BT30-MFT16-30-M8 130.4 65 30 15.6 8.5 8
BT30-MFT16-60-M8 160.4 95 60 15.6 8.5 8
BT30-MFT20-30-M10 130.4 65 30 19 10.5 10
BT30-MFT20-60-M10 160.4 95 60 19 10.5 10
BT30-MFT25-30-M12 130.4 65 30 24 12.5 12
BT30-MFT25-60-M12 160.4 95 60 24 12.5 12
BT30-MFT35-30-M16 130.4 65 30 31.8 17 16
BT30-MFT35-60-M16 160.4 95 60 31.8 17 16
BT40-MFT16-30-M8 130.4 65 30 15.6 8.5 8
BT40-MFT16-60-M8 160.4 95 60 15.6 8.5 8
BT40-MFT20-30-M10 130.4 65 30 19 10.5 10
BT40-MFT20-60-M10 160.4 95 60 19 10.5 10
BT40-MFT25-30-M12 130.4 65 30 24 12.5 12
BT40-MFT25-60-M12 160.4 95 60 24 12.5 12
BT40-MFT35-30-M16 130.4 65 30 31.8 17 16
BT40-MFT35-60-M16 160.4 95 60 31.8 17 16
BT50-MFT25-30-M12 130.4 65 30 24 12.5 12
BT50-MFT25-60-M12 160.4 95 60 24 12.5 12
BT50-MFT35-30-M16 130.4 65 30 31.8 17 16
BT50-MFT35-60-M16 160.4 95 60 31.8 17 16
