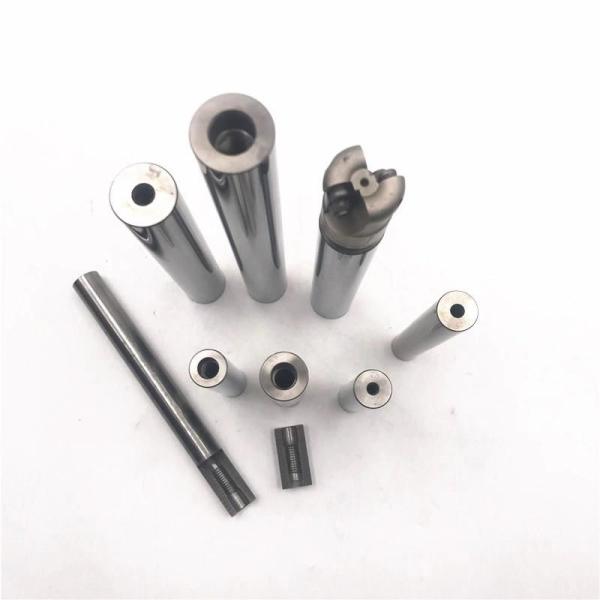

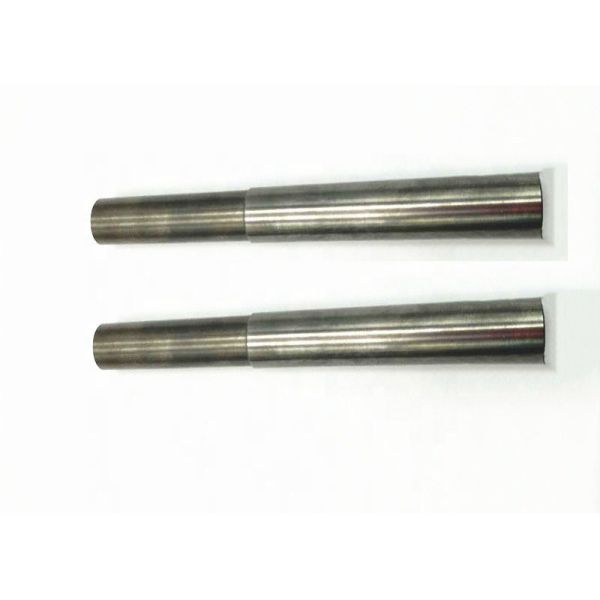

DIA15.6mm 200mm M8 Cemented Solid Carbide Boring Bar
DIA15.6mm 200mm M8 Cemented Solid Carbide Boring Bar
DIA15.6mm 200mm M8 Cemented Solid Carbide Boring Bar
DIA15.6mm 200mm M8 Cemented Solid Carbide Boring Bar
DIA15.6mm 200mm M8 Cemented Solid Carbide Boring Bar
DIA15.6mm 200mm M8 Cemented Solid Carbide Boring Bar
DIA15.6mm 200mm M8 Cemented Solid Carbide Boring Bar
DIA15.6mm 200mm M8 Cemented Solid Carbide Boring Bar
Specifications
Brand Name :
BENEMETAL
Model Number :
DIA15.6mm-200mm-M8
Certification :
ISO9001:2008
Place of Origin :
ZHUZHOU
MOQ :
5pc
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000 KGS per month
Delivery Time :
5-8 working days or negotiable
Packaging Details :
Standard or customized package
Dia :
15.6mm-200mm-M8
Length :
200mm
Usage :
CNC Machine Tool
Advantage :
Carbide Factory for more than 20 years
Chemical composition :
WC+CO
Sample :
have in stock
Sample order :
Yes
Product name :
tool holder
Description

Application:

It is an important for machning in CNC machning.

Its purpose to prevent tools from shanking and to control.

Carbide Screwed Boring Bar

DIA15.6mm 200mm M8 Cemented Solid Carbide Boring Bar

Specification D L D1 M
MFT-08-100-M4 8 100 8 M4
MFT-10-80-M5/M6 10 80 10 M5/M6
MFT-10-100-M5/M6 10 100 10 M5/M6
MFT-10-150-M5/M6 10 150 10 M5/M6
MFT-12-100-M6 12 100 12 M6
MFT-15-100-M8 15 100 15 M8
MFT-15-150-M8 15 150 15 M8
MFT-15-200-M8 15 200 15 M8
MFT-15.6-200-M8 15.6 200 15.6 M8
MFT-15.6-250-M8 15.6 250 15.6 M8
MFT-16-100-M8 16 100 16 M8
MFT-16-150-M8 16 150 16 M8
MFT-16-200-M8 16 200 16 M8
MFT-16-250-M8 16 250 16 M8
MFT-16-300-M8 16 300 16 M8
MFT-19-200-M10 19 200 19 M10
MFT-19-250-M10 19 250 19 M10
MFT-20-100-M10 20 100 20 M10
MFT-20-150-M10 20 150 20 M10
MFT-20-200-M10 20 200 20 M10
MFT-20-300-M10 20 300 20 M10
MFT24-150-M12 24 150 24 M12
MFT-24-200-M12 24 200 24 M12
MFT-24-300-M12 24 300 24 M12
MFT-25-150-M12 25 150 25 M12
MFT-25-200-M12 25 200 25 M12
MFT-25-250-M12 25 250 25 M12
MFT-25-300-M12 25 300 25 M12
MFT-32-150-M16 32 150 32 M16
MFT-32-200-M16 32 200 32 M16
MFT-32-250-M16 32 250 32 M16
MFT-32-300-M16 32 300 32 M16
MFT-32-350-M16 32 350 32 M16
MFT-32-400-M16 32 400 32 M16

DIA15.6mm 200mm M8 Cemented Solid Carbide Boring Bar


Customized Carbide Screwed Boring Bar

DIA15.6mm 200mm M8 Cemented Solid Carbide Boring Bar

Specification D (mm) D1 (mm) L L1 M
MFT16-85-120-M8 16 15.6 120 85 8
MFT16-95-150-M8 16 15.6 150 95 8
MFT16-145-200-M8 16 15.6 200 145 8
MFT20-40--100-M10 20 19.6 100 100 10
MFT20-90-150-M10 20 19.6 150 150 10
MFT20-140-200-M10 20 19.6 200 200 10
MFT25-40-100-M12 25 24.6 100 100 12
MFT25-85-150-M12 25 24.6 150 150 12
MFT25-135-200-M12 25 24.6 200 200 12

DIA15.6mm 200mm M8 Cemented Solid Carbide Boring Bar

BT-MFT Caebide Boring Bar

DIA15.6mm 200mm M8 Cemented Solid Carbide Boring Bar

Specification L L1 L2 D d1 M
BT30-MFT16-30-M8 130.4 65 30 15.6 8.5 8
BT30-MFT16-60-M8 160.4 95 60 15.6 8.5 8
BT30-MFT20-30-M10 130.4 65 30 19 10.5 10
BT30-MFT20-60-M10 160.4 95 60 19 10.5 10
BT30-MFT25-30-M12 130.4 65 30 24 12.5 12
BT30-MFT25-60-M12 160.4 95 60 24 12.5 12
BT30-MFT35-30-M16 130.4 65 30 31.8 17 16
BT30-MFT35-60-M16 160.4 95 60 31.8 17 16
BT40-MFT16-30-M8 130.4 65 30 15.6 8.5 8
BT40-MFT16-60-M8 160.4 95 60 15.6 8.5 8
BT40-MFT20-30-M10 130.4 65 30 19 10.5 10
BT40-MFT20-60-M10 160.4 95 60 19 10.5 10
BT40-MFT25-30-M12 130.4 65 30 24 12.5 12
BT40-MFT25-60-M12 160.4 95 60 24 12.5 12
BT40-MFT35-30-M16 130.4 65 30 31.8 17 16
BT40-MFT35-60-M16 160.4 95 60 31.8 17 16
BT50-MFT25-30-M12 130.4 65 30 24 12.5 12
BT50-MFT25-60-M12 160.4 95 60 24 12.5 12
BT50-MFT35-30-M16 130.4 65 30 31.8 17 16
BT50-MFT35-60-M16 160.4 95 60 31.8 17 16
