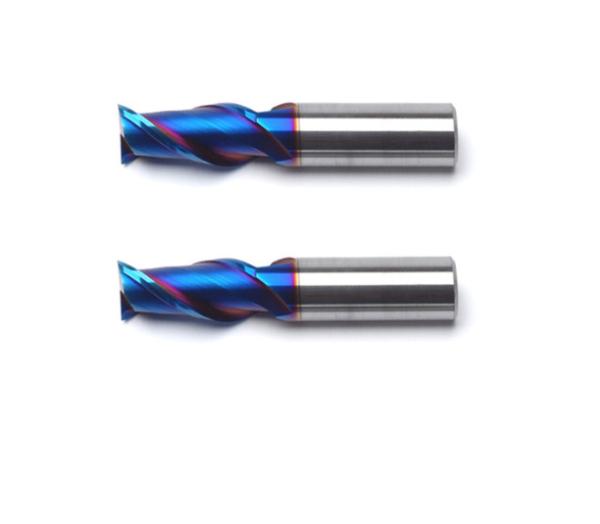

Great Performance High Speed End Mill General Milling PM Series Flute End Mill

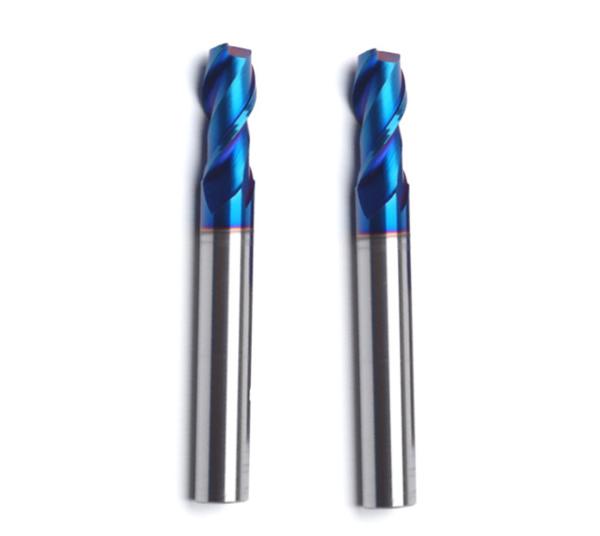

Great Performance High Speed End Mill General Milling PM Series Flute End Mill

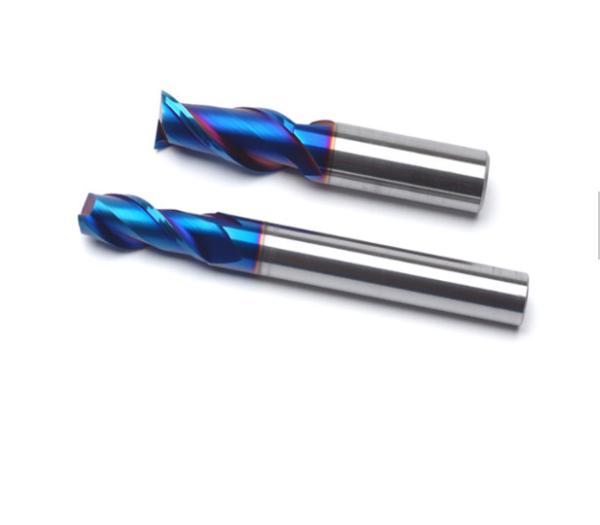

Great Performance High Speed End Mill General Milling PM Series Flute End Mill
Great Performance High Speed End Mill General Milling PM Series Flute End Mill
Great Performance High Speed End Mill General Milling PM Series Flute End Mill
Great Performance High Speed End Mill General Milling PM Series Flute End Mill
Great Performance High Speed End Mill General Milling PM Series Flute End Mill
Great Performance High Speed End Mill General Milling PM Series Flute End Mill
Specifications
Brand Name :
SHIELD
Model Number :
PM-4E-G
Certification :
ISO9001:2008
Place of Origin :
Hunan China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C D/A D/P T/T Western Union
Supply Ability :
500,000 per month
Delivery Time :
5-35 workdays after received the payment
Packaging Details :
Plastic box packed for each pieces, carton boxes outside
Product name :
High-performance general milling PM series
Material :
WC: 0.6μm grain size 12.0% Co
Type :
4-flute flattened end mills with straight shank
Diameter :
1-20mm
Overlength :
50-100mm
Flute :
4-flute
Coating :
NaNo AlTiN
HRC :
40/50/55
Suitable for :
Carbon steel, alloy steel, hardened steel, stainless steel , cast iron, nodular cast iron, titanium alloy, heat resistant alloy
Application :
Wide application, very suitable for side milling
Description

4-Flute flattened end mills with straight shank

High-performance general milling PM series

Great Performance High Speed End Mill General Milling PM Series Flute End Mill
Type Basic dimension(mm) Number of teeth Z Geometry
D d H L
PM-4E-D1.0S-G 1.0 4 3 50 4 Picture 1
PM-4E-D1.5S-G 1.5 4 4 50 4 Picture 1
PM-4E-D2.0S-G 2.0 4 6 50 4 Picture 1
PM-4E-D2.5S-G 2.5 4 8 50 4 Picture 1
PM-4E-D3.0S-G 3.0 4 8 50 4 Picture 1
PM-4E-D4.0S-G 4.0 4 11 50 4 Picture 2
PM-4E-D1.0-G 1.0 6 3 50 4 Picture 1
PM-4E-D1.5-G 1.5 6 4 50 4 Picture 1
PM-4E-D2.0-G 2.0 6 6 50 4 Picture 1
PM-4E-D2.5-G 2.5 6 8 50 4 Picture 1
PM-4E-D3.0-G 3.0 6 8 50 4 Picture 1
PM-4E-D3.5-G 3.5 6 10 50 4 Picture 1
PM-4E-D4.0-G 4.0 6 11 50 4 Picture 1
PM-4E-D4.5-G 4.5 6 11 50 4 Picture 1
PM-4E-D5.0-G 5.0 6 13 50 4 Picture 1
PM-4E-D5.5-G 5.5 6 16 50 4 Picture 1
PM-4E-D6.0-G 6.0 6 16 50 4 Picture 2
PM-4E-D7.0-G 7.0 8 20 60 4 Picture 1
PM-4E-D8.0-G 8.0 8 20 60 4 Picture 2
PM-4E-D9.0-G 9.0 10 22 75 4 Picture 1
PM-4E-D10.0-G 10.0 10 25 75 4 Picture 2
PM-4E-D11.0-G 11.0 12 26 75 4 Picture 1
PM-4E-D12.0-G 12.0 12 30 75 4 Picture 2
PM-4E-D14.0-G 14.0 14 32 75 4 Picture 2
PM-4E-D16.0-G 16.0 16 45 100 4 Picture 2
PM-4E-D18.0-G 18.0 18 45 100 4 Picture 2
PM-4E-D20.0-G 20.0 20 45 100 4 Picture 2

Detailed Product Description:

PM= High performance general machining

4E= 4 flute corner protection flattened

D1.0= Tool diameter 1.0mm

S= Slim shank d4.0

G=30 Degree taper 4-flute flattened end mills

Number of teeth: 4 Flutes

End tooth type of mills: 4-flute corner protection flattened end mills with straight shank

Cutting diameter tolerance: D </= 12 0~-0.020

D<12 0~-0.030

Coated: NaNo AITiN coating

Helical angle: 30 degree

Machining operation: Great Performance High Speed End Mill General Milling PM Series Flute End Mill

a. Side face: Flattened end mills for side machining

b. Step shoulder: Flattened end mills for shoulder machining

c. Straight slot: Flattened end mills for deep slot machining

Applicable workpiece material:

1. Very suitable for carbon steel , alloy steel, Pre-hardened steel ,hardened steel with 40HRC/50HRC/55HRC, cast iron, nodular cast iron

2. Suitable for stainless steel, Tianium alloy, heat resistant alloy

Advantage of high-performance general machining end mills

1. Optimized geometry, improves chip removal and chip forming with reduced cutting force.

Great Performance High Speed End Mill General Milling PM Series Flute End Mill

2. Higher feed rates and improved metal removal rate for efficient machining, due to high stability of cutting edge and rigid tool structure.

Tool diameter: Ø6.0mm

Tool type: a) PM-4E-D6.0

b) Tool from overseas manufacturer

Machine tool: Mikron UCP 1000

Workpiece material: NAK80(40HRC)

Cooling system: air blow

Machining operation: side milling (down milling)

Cutting parameters: Vc=100m/min

ap=9mm, ae=0.6mm

Fz=0.4mm~0.16mm

Great Performance High Speed End Mill General Milling PM Series Flute End Mill

3. With excellent wear resistance and toughness, high wear resistance and breakage resistance is achieved even during high performance milling.

Great Performance High Speed End Mill General Milling PM Series Flute End Mill

Tool type: PM-4E-D6.0 Radial cutting depth: ae=0.6mm

Diameter: Ø6.0mm Cutting stype: side milling( down milling)

Workpiece material: NAK80(40HRC) Cooling system: air blow

Rotating speed: 5300r/min(100m/min) Machine tool: MIKRON UCP1000

Feed speed: 1696mm/min(0.32mm/r) Tool overhang: 22mm

Axial cutting depth: ap=9mm

Machining results

Great Performance High Speed End Mill General Milling PM Series Flute End Mill

Conclusion: compared with other tools manufacturer, PM series has better breakage resistance.

The application status of PM-4E-D6.0-G in high speed milling.

Tool type: PM-4E-D6.0-G

Diameter: Ø6.0mm

Workpiece material: NAK80(40HRC) Great Performance High Speed End Mill General Milling PM Series Flute End Mill

Rotating speed:13260r/min(250m/min)

Feed speed: 2652mm/min(0.2mm/r)

Axial cutting depth: ap=6mm

Radial cutting depth: ap=0.3mm

Cutting style: side milling( down milling)

Cooling system: air blow

Machine tool: MIKRON HSM800

Tool overhang: 22mm

High efficiency machining alloy steel of PM-4E-D8.0.

Great Performance High Speed End Mill General Milling PM Series Flute End Mill

Machine tool: MIKRON UCP1000

Tool holder: HSK63-A Workpiece material: alloy steel

Cutting speed: 100(m/min)

Feed rate per tooth: 0.04(mm/tooth)

Axial cutting depth: 8(mm)

Radial cutting width(mm): changing, Maximum at full cutting

Cooling system: Emulsified liquid

Milling style: Contour following

Tool overhang: 30mm

End mills series of sharp and corner protection type

The characteristic of corner protection end mill:

1) It's suitable for bad cutting condition or hardness material machining.

2) High cutting edge strength and breakage resistance.

3) The degree of nose sharpness is reduced, the vestiage is left.

Great Performance High Speed End Mill General Milling PM Series Flute End Mill

The characteristic of sharp end mill:

1) True 90 degree angle is obtained without material remaining in the corner.

2) The corner part is sharp, it is applicable in finishing or soft material machining. Especially, it is usually used in machining of non-ferrous material such as AI.

Great Performance High Speed End Mill General Milling PM Series Flute End Mill

Two kind of cutting nose being used in side face milling of NAK80(40HRC)

Machine tool: MIKRON UCP1000

Tool holder: HSK63-A

Workpiece material: NAK80(40HRC)

Cutting speed: 100(m/min)(5300r/min)

Great Performance High Speed End Mill General Milling PM Series Flute End Mill

Feed rate per tooth: 0.04-0.016(mm/tooth)

Axial cutting depth: 9(mm)

Radial cutting width: 0.6(mm)

Cooling system: air blow

Milling style: side milling ( down milling)

Tool overhang: 22(mm)

Tool abrasion when machining NAK80(HRC40)

Great Performance High Speed End Mill General Milling PM Series Flute End Mill
