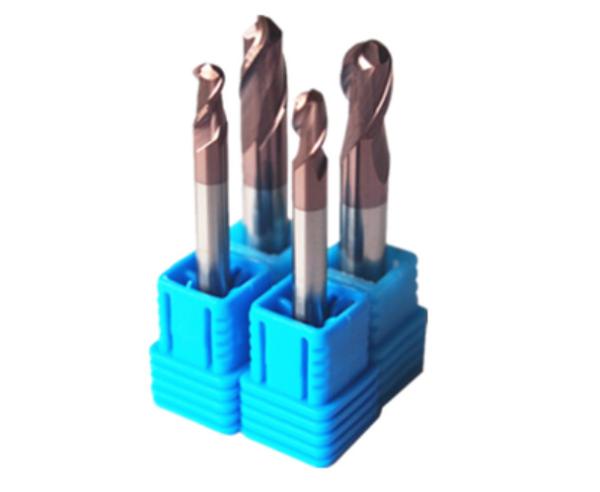

PM - 2B - R0.5S ~ R10.0 Solid Carbide Ball Nose End Mills , Miniature End Mills
PM - 2B - R0.5S ~ R10.0 Solid Carbide Ball Nose End Mills , Miniature End Mills
PM - 2B - R0.5S ~ R10.0 Solid Carbide Ball Nose End Mills , Miniature End Mills
PM - 2B - R0.5S ~ R10.0 Solid Carbide Ball Nose End Mills , Miniature End Mills
PM - 2B - R0.5S ~ R10.0 Solid Carbide Ball Nose End Mills , Miniature End Mills
PM - 2B - R0.5S ~ R10.0 Solid Carbide Ball Nose End Mills , Miniature End Mills
PM - 2B - R0.5S ~ R10.0 Solid Carbide Ball Nose End Mills , Miniature End Mills
PM - 2B - R0.5S ~ R10.0 Solid Carbide Ball Nose End Mills , Miniature End Mills
PM - 2B - R0.5S ~ R10.0 Solid Carbide Ball Nose End Mills , Miniature End Mills
PM - 2B - R0.5S ~ R10.0 Solid Carbide Ball Nose End Mills , Miniature End Mills
Specifications
Brand Name :
SHIELD
Model Number :
PM-2B SERIES
Certification :
ISO9001:2008
Place of Origin :
Hunan China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C D/A D/P T/T Western Union
Supply Ability :
200,000 per month
Delivery Time :
5-35 workdays after received the payment
Packaging Details :
Plastic box packed for each pieces, carton boxes outside
Product name :
PM-2B 2 flute ball nose end mills with straight shank
Material :
WC: 0.6μm grain size 12.0% Co
Type :
2-flute ball nose end mills with straight shank
Diameter :
R0.5S-R10.0
Overlength :
50-100mm
Flute :
2-flute
Coating :
NaNo AlTiN
HRC :
40/50/55
Suitable for :
Carbon steel, alloy steel, hardened steel, stainless steel , cast iron, nodular cast iron, titanium alloy, heat resistant alloy
Application :
For profile milling, high speed machining applicable, wide application
Description

2- flute ball nose end mills with straight shank PM-2B-R0.5S~R10.0

High-performance general milling PM series

PM - 2B - R0.5S ~ R10.0 Solid Carbide Ball Nose End Mills , Miniature End Mills
Type Basic dimension(mm) Number of teeth Z Geometry
D R d H L
PM-2B-R0.5S 1.0 0.5 4 2 50 2 Picture 1
PM-2B-R0.75S 1.5 0.75 4 3 50 2 Picture 1
PM-2B-R1.0S 2.0 1.0 4 4 50 2 Picture 1
PM-2B-R1.25S 2.5 1.25 4 5 50 2 Picture 1
PM-2B-R1.5S 3.0 1.5 4 6 50 2 Picture 1
PM-2B-R2.0S 4.0 2.0 4 8 50 2 Pitcure 2
PM-2B-R0.5 1.0 0.5 6 2 50 2 Picture 1
PM-2B-R0.75 1.5 0.75 6 3 50 2 Picture 1
PM-2B-R1.0 2.0 1.0 6 4 50 2 Picture 1
PM-2B-R1.25 2.5 1.25 6 5 50 2 Picture 1
PM-2B-R1.5 3.0 1.5 6 6 50 2 Picture 1
PM-2B-R1.75 3.5 1.75 6 8 50 2 Picture 1
PM-2B-R2.0 4.0 2.0 6 8 50 2 Picture 1
PM-2B-R2.5 5.0 2.5 6 10 50 2 Picture 1
PM-2B-R2.75 5.5 2.75 6 12 50 2 Picture 1
PM-2B-R3.0 6.0 3.0 6 12 50 2 Picture 2
PM-2B-R3.5 7.0 3.5 8 14 60 2 Picture 1
PM-2B-R4.0 8.0 4.0 8 16 60 2 Picture 2
PM-2B-R4.5 9.0 4.5 10 18 75 2 Picture 1
PM-2B-R5.0 10.0 5.0 10 20 75 2 Picture 2
PM-2B-R6.0 12.0 6.0 12 24 75 2 Picture 2
PM-2B-R7.0 14.0 7.0 14 28 75 2 Picture 2
PM-2B-R8.0 16.0 8.0 16 32 100 2 Picture 2
PM-2B-R10.0 20.0 10.0 20 40 100 2 Picture 2

Detailed Product Description:

PM= High performance general machining

2B= 2 flute ball nose

R1.0= Radius of ball nose 1.0

Number of teeth: 2 Flute

End tooth type of mills: 2-flute ball nose end mills with long straight shank

Cutting diameter tolerance: D </= 12 (0~-0.020mm)

D<12(0~-0.030mm)

R tolerance: +/-0.01mm

Coated: NaNo AITiN coating

Helical angle: 30 degree

Machining operation: PM - 2B - R0.5S ~ R10.0 Solid Carbide Ball Nose End Mills , Miniature End Mills

a. Profile: Ball nose end mills for profile machining

b. Gavity:Ball nose end mills for cavity machining

c. Ball nose slot: Ball nose end mills for slot machining

PM series 2-flute ball nose end mill

PM-2B PM-2BL PM-2BFP

Application of high-performance 2-flute ball nose end mill milling NAK80

Tool type: PM-2B-R3.0

Diameter: Ø6.0mm

Workpiece material: NAK80(40HRC)

Rotating speed: 10600r/min(200m/min)

Feed speed: 2120mm/min(0.2mm/r)

Axial cutting depth: ap=0.2mm

Radial cutting depth: ae=0.3mm

Cutting style: single direction linear milling zig

Cooling system: air blow

Machine tool: MIKRON UCP1000

Tool overhang: 20mm

Roughness measure: TM2000

PM - 2B - R0.5S ~ R10.0 Solid Carbide Ball Nose End Mills , Miniature End Mills


PM - 2B - R0.5S ~ R10.0 Solid Carbide Ball Nose End Mills , Miniature End Mills

PM ball nose end mills can achieve distinct grooves with low roughness and high surface quality

PM - 2B - R0.5S ~ R10.0 Solid Carbide Ball Nose End Mills , Miniature End Mills

Advantage of PM series 2-flute ball nose end mill PM-2B PM-2BL PM-2BFP

1) Ultra fine cemented carbide substrate with excellent wear resistance.

2) High-rigidity tool structure reduces virbration.

3) NaNo coating guarantees excellent wear resistance and high temperature stability.

4) Seamless connection of peripheral cutting edge and ball cutting edge is achieved. Optimized center design of ball cutting edge greatly improves surface quality.

.
