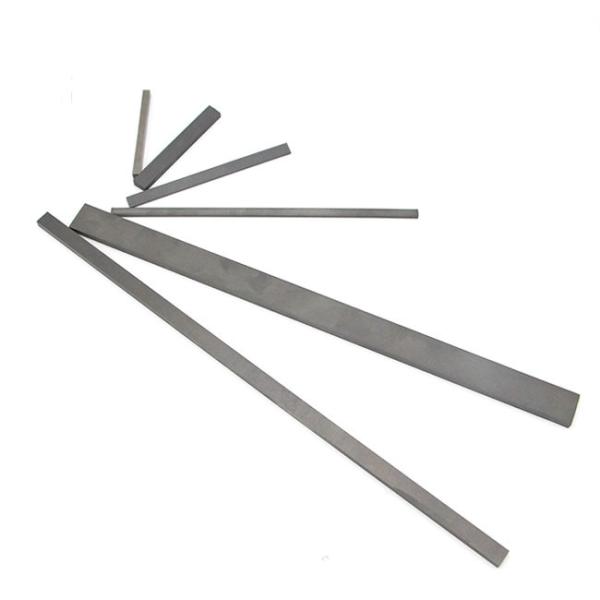

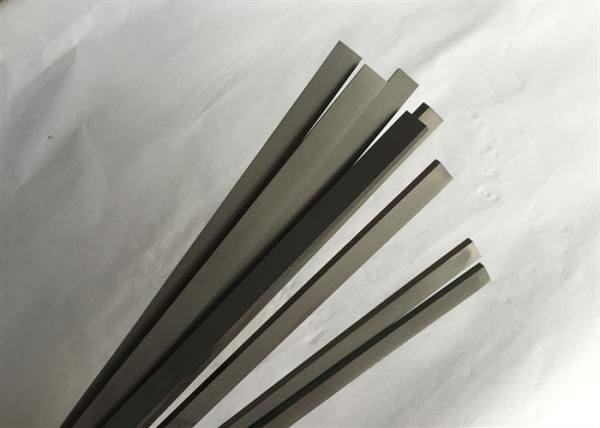

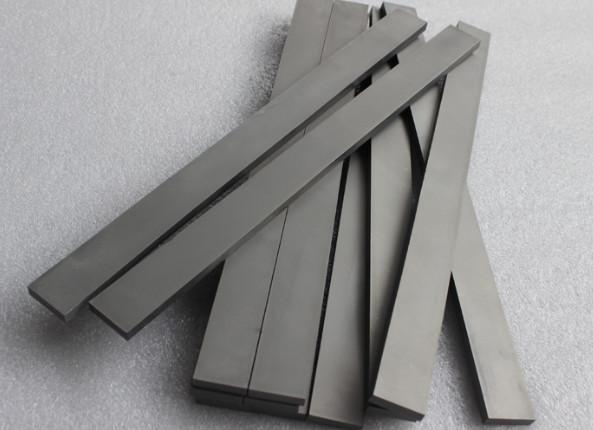

YN9 , YN10, YN11 grade, non-magnetic alloy strips

Grade: YN9, YN10, YN11 etc.

Technical parameters: 1. composition: 91% WC+9%Ni

2. Grain size: 0.8um

3. Density: 14.36g/cm3

4. HAR: 89.1-91.3HRA

5. Breaking resistant strength: 280 Kgf/mm2

6. Impact strength: 0.2kgf-m/cm2

Size: we can do thickness1~30mm, width 1~30mm length 100-2000mm

Feature: 1. What is Non-magnetic tungsten carbide material?

Non-magnetic tungsten carbide material is a kind of new carbide materials significant performance. Tungsten carbide is sintering by powder metallurgy industry, which is composite by the refractory metal such as WC and the binder of Co, Ni or Fe. And the Fe, Co and Ni are magnetic material, with 770℃,1120℃,354℃ curie point. Ni with the lowest curie point, we could drops it below room temperature throw some methods, so the Ni is the best material for Non-magnetic tungsten carbide material.

2. Properties of non-magnetic tungsten carbide strips, plates.

Non-magnetic tungsten carbide strips, plates,with high hardness, high T.R.S. and high corrosion resistance, are widely used in thermal recovery wells and sand wells. Non-magnetic tungsten carbide plate is a kind of material with non-magnetic or weakly magnetic. Non-magnetic tungsten carbide plate with widely usage, which with the properties of magnetic and high hardness of tungsten carbide, other materials can not be replaced this material.

3. Usage of Non-magnetic Tungsten Carbide strips, plates

i. For the production of standard parts, cold heading, cold punch, cold mold.
ii. For non-magnetic wear parts.
iii. The magnetic field for forming the mold.
iiii. For the magnetic field forming mold punch.

iiiii. For the coating machine.
