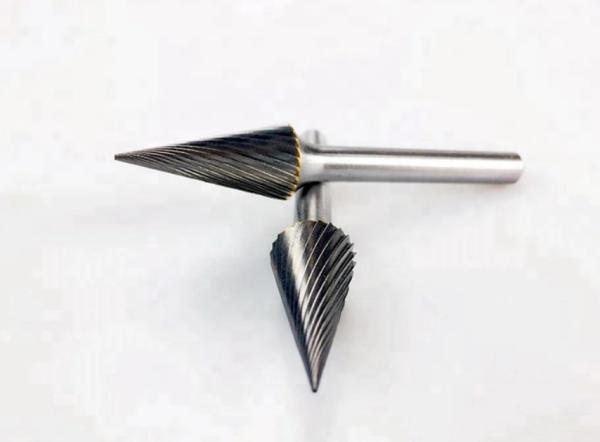

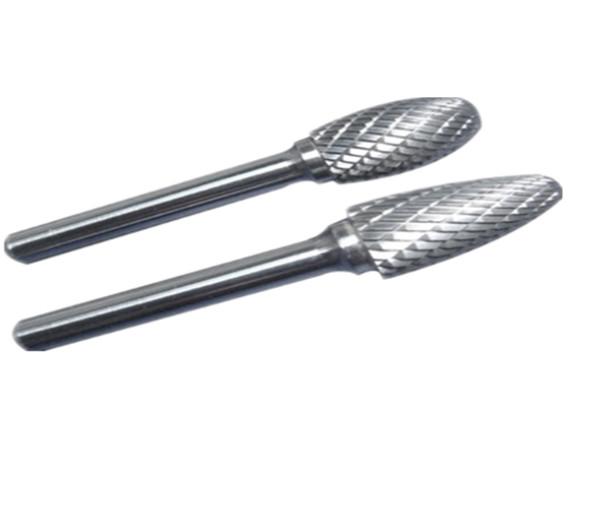

Blank And Ground Tungsten Carbide Bur Long Rock Tungsten Gun Rotary Burrs Drill Bits
Blank And Ground Tungsten Carbide Bur Long Rock Tungsten Gun Rotary Burrs Drill Bits
Blank And Ground Tungsten Carbide Bur Long Rock Tungsten Gun Rotary Burrs Drill Bits
Blank And Ground Tungsten Carbide Bur Long Rock Tungsten Gun Rotary Burrs Drill Bits
Blank And Ground Tungsten Carbide Bur Long Rock Tungsten Gun Rotary Burrs Drill Bits
Blank And Ground Tungsten Carbide Bur Long Rock Tungsten Gun Rotary Burrs Drill Bits
Blank And Ground Tungsten Carbide Bur Long Rock Tungsten Gun Rotary Burrs Drill Bits
Blank And Ground Tungsten Carbide Bur Long Rock Tungsten Gun Rotary Burrs Drill Bits
Specifications
Brand Name :
SHIELD
Model Number :
standard and OEM
Certification :
ISO9001:2008
Place of Origin :
Hunan China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C D/A D/P T/T Western Union
Supply Ability :
500,000 per month
Delivery Time :
5-35 workdays after received the payment
Packaging Details :
First Protective sleeve for each one. then put into plastic box. then put ten into paper box
Tooth type :
Double Cut,Standard Cut/Double Cut/Diamond Cut/Coarse Cut/Aluminum
Main chemical composition :
WC and Co

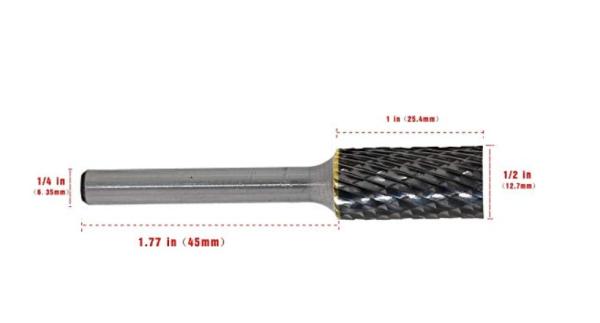

Overall length :
50-150mm,38MM-150MM,43-51mm
Advantage :
Wear Resistant Superior,Manufactuer,CNC Machining
Size :
OEM Accepted,D3;D4;D6;D8;D10,According to the drawing provided by customers,Customized
Usage :
Mainly used in the pneumatic or electric-driven tools,Machining/Clean the narrow contours,Cutting Hard Alloy
Description
Blank And Ground Tungsten Carbide Bur Long Rock Tungsten Gun Rotary Burrs Drill Bits
Product Description

Features

● Increasing productivity of several ten times than using hand tools and three to five times than using small

emery wheels

● Having long life often times than high speed steel burrs and fifty times than small emery wheels.

● Finish machiningvarious kinds of die cavities.

● Removing the burrs ofthe castings, forgings and the welding spatter on the weld assemblies.

● Chamfering angle,circular bead or flute on the mechanical components.

● Chamfering or burring the pipes.

● Polishing the impellerchannel.

● Grinding the hole toan accurate shape.

Shield Carbide Standard Grades

Cobalt Binder Grades
Grade Binder(wt%) Density(g/cm3) Hardness(HRA) TRS(≥N/mm2)
YG3 3 15.30 91.00 1180
YG6X 6 15.10 92.00 1420
YG6X 6 15.10 91.00 1600
YG8 8 14.90 90.00 1600
YG10 10 14.70 89.00 1900
YG10X 10 14.70 89.50 2200
YG15 15 14.20 87.00 2100
YG20 20 13.70 85.50 2500
YG20C 20 13.70 82.00 2200
YG30 30 12.80 82.00 2750

Blank And Ground Tungsten Carbide Bur Long Rock Tungsten Gun Rotary Burrs Drill BitsBlank And Ground Tungsten Carbide Bur Long Rock Tungsten Gun Rotary Burrs Drill Bits
