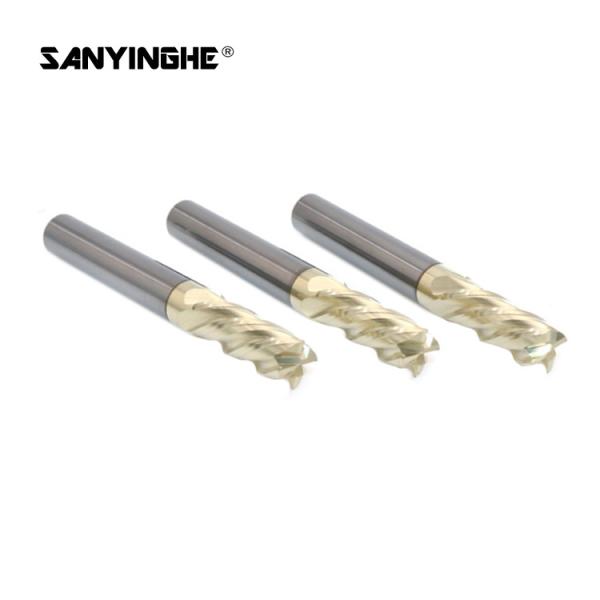

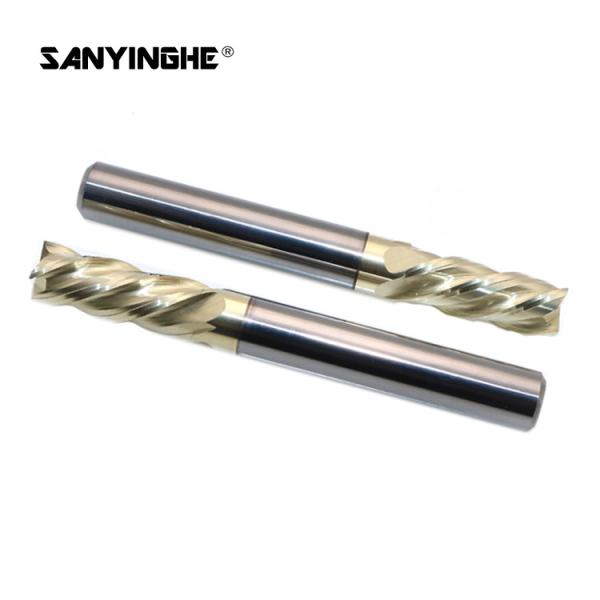

2 Flute Carbide Corner Radius End Mill Bull Nose End Mill Cutter For Steel
2 Flute Carbide Corner Radius End Mill Bull Nose End Mill Cutter For Steel
2 Flute Carbide Corner Radius End Mill Bull Nose End Mill Cutter For Steel
2 Flute Carbide Corner Radius End Mill Bull Nose End Mill Cutter For Steel
2 Flute Carbide Corner Radius End Mill Bull Nose End Mill Cutter For Steel
2 Flute Carbide Corner Radius End Mill Bull Nose End Mill Cutter For Steel
2 Flute Carbide Corner Radius End Mill Bull Nose End Mill Cutter For Steel
2 Flute Carbide Corner Radius End Mill Bull Nose End Mill Cutter For Steel
2 Flute Carbide Corner Radius End Mill Bull Nose End Mill Cutter For Steel
2 Flute Carbide Corner Radius End Mill Bull Nose End Mill Cutter For Steel
Specifications
Brand Name :
Sanyinghe
Model Number :
2/3/4 flute
Certification :
ISO
Place of Origin :
Zhuzhou,China
MOQ :
5PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
3000pcs/month
Delivery Time :
7 days
Packaging Details :
1PCS In 1 Plastic Box, and Servel Boxes In 1 Carton.
Material :
Tungsten Carbide
Usage :
Metal milling
Suitable for :
Cooper.Cast Iron.Carbon Steel.Mould Steel
Processing Type :
Finishing Maching
Application :
Milling Machining
Precision :
High Precision
Description

Cnc End Mill 2 Flute Corner Radius End Mill Ball Nose Carbide Milling Cutter For Steel Milling Cutter

PRODUCT DESCRIPTION

1. a, Material: tungsten carbide
b, TRS: >3600 N/mm2
c, HRA: 91.8-92.4, HRC:60S
d, Grain size: 0.2-0.6μm
e, Helix angle: 30°-45 °

2. Diameter of cutting edge: 0.2-0.9mm; 1-20mm

3. Size: Diameter 1.0mm-20mm standard and non-standard.

4. Cutting Form: Square,Ball nose, Corner Radius, Taper Flute, etc.

5. Type of flute: 4

6. Other products: Drills,reamer, tool holders, ER collet, boring cutters, carbide inserts, cutter heads,etc.

7. Application and usage

8. Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, aluminum alloy steel, non ferrous alloy etc.

Product Name

 Carbide End Mills
Material Carbide
Coating AITiN
Machine Type CNC Milling Machine
Processing Objects Carbon Steel
Features Machine high hardened materials

Corner Radius End Mill
Specification-R0.2
Flute
1

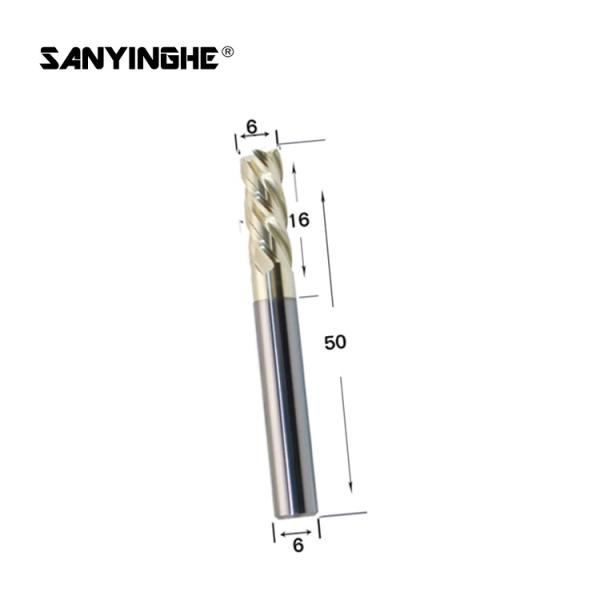

D1R0.2*3*D4*50L
4
2
D1.5R0.2*4.5*D4*50L
4
3
D2R0.2*6*D4*50L
4
4
D2.5R0.2*7.5*D4*50L
4
5
D3R0.2*9*D4*50L
4
6
D4R0.2*12*D4*50L
4
7
D6R0.2*15*D6*50L
4
8
D8R0.2*20*D8*60L
4
Corner Radius End Mill
Specification-R0.5
Flute
1
D2R0.5*6*D4*50L
4
2
D2.5R0.5*7.5*D4*50L
4
3
D3R0.5*9*D4*50L
4
4
D3.5R0.5*10.5*D4*50L
4
5
D4R0.5*12*D4*50L
4
6
D4R0.5*14*D4*75L
4
7
D4R0.5*16*D4*100L
4
8
D5R0.5*12.5*D5*50L
4
9
D6R0.5*15*D6*50L
4
10
D6R0.5*20*D6*75L
4
11
D6R0.5*25*D6*100L
4
12
D8R0.5*20*D8*60L
4
13
D8R0.5*25*D8*75L
4
14
D8R0.5*30*D8*100L
4
15
D10R0.5*25*D10*75L
4
16
D10R0.5*30*D10*100L
4
17
D12R0.5*30*D12*75L
4
18
D12R0.5*35*D12*100L
4
Corner Radius End Mill
Specification-R1
Flute
1
D3R1*9*D4*50L
4
2
D3R1*9*D3*50L
4
3
D4R1*12*D4*50L
4
4
D4R1*14*D4*75L
4
5
D4R1*16*D4*100L
4
6
D5R1*12.5*D5*50L
4
7
D5R1*15*D5*75L
4
8
D5R1*12.5*D6*50L
4
9
D6R1*15*D6*50L
4
10
D6R1*20*D6*75L
4
11
D6R1*25*D6*100L
4
12
D8R1*20*D8*60L
4
13
D8R1*25*D8*75L
4
14
D8R1*30*D8*100L
4
15
D10R1*25*D10*75L
4
16
D10R1*30*D10*100L
4
17
D12R1*30*D12*75L
4
19
D12R1*35*D12*100L
4
Corner Radius End Mill
Specification-R2
Flute
1
D8R2*20*D8*60L
4
2
D10R2*25*D10*75L
4
3
D12R2*30*D12*75L
4

2 Flute Carbide Corner Radius End Mill Bull Nose End Mill Cutter For Steel2 Flute Carbide Corner Radius End Mill Bull Nose End Mill Cutter For Steel2 Flute Carbide Corner Radius End Mill Bull Nose End Mill Cutter For Steel

FAQ

1. Who are we?

Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.

2. How can we guarantee quality?

We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.

3. What can you buy from us?

We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.

4. How is the packing?

All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.

5. What is your terms of payment?

Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
