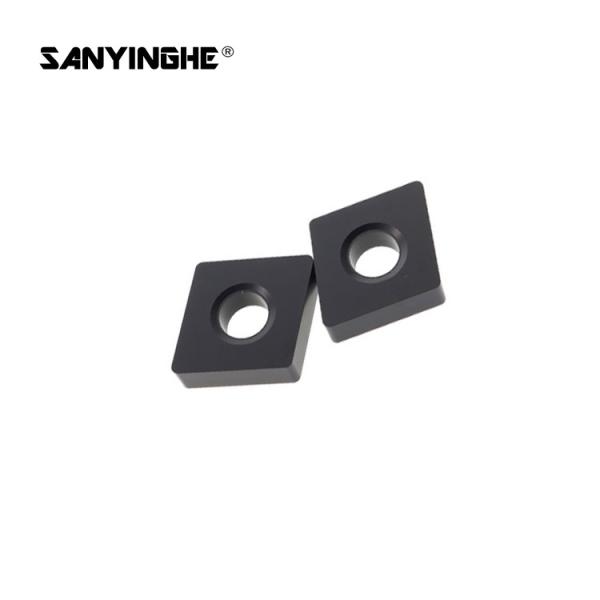

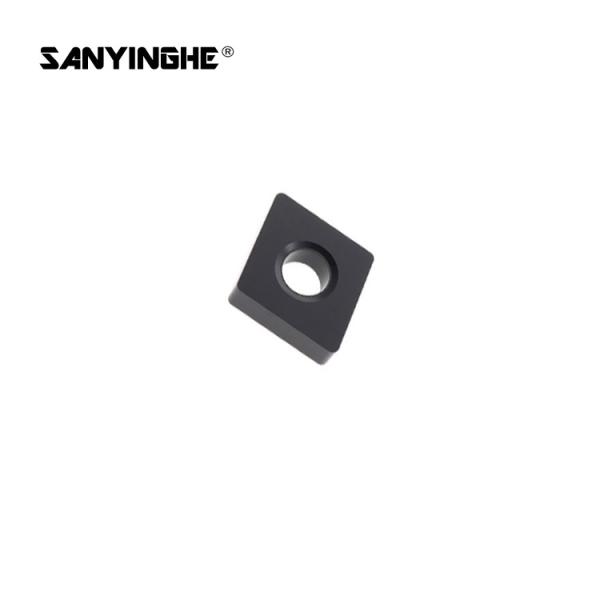

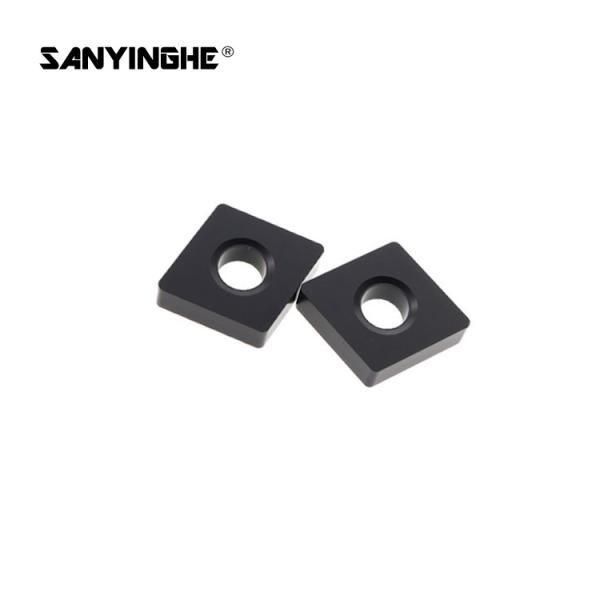

CNMA Carbide Turning Inserts Cast Iron Tungsten Carbide Cutter CNMA190612 External Turning Tool
CNMA Carbide Turning Inserts Cast Iron Tungsten Carbide Cutter CNMA190612 External Turning Tool
CNMA Carbide Turning Inserts Cast Iron Tungsten Carbide Cutter CNMA190612 External Turning Tool
CNMA Carbide Turning Inserts Cast Iron Tungsten Carbide Cutter CNMA190612 External Turning Tool
CNMA Carbide Turning Inserts Cast Iron Tungsten Carbide Cutter CNMA190612 External Turning Tool
CNMA Carbide Turning Inserts Cast Iron Tungsten Carbide Cutter CNMA190612 External Turning Tool
CNMA Carbide Turning Inserts Cast Iron Tungsten Carbide Cutter CNMA190612 External Turning Tool
CNMA Carbide Turning Inserts Cast Iron Tungsten Carbide Cutter CNMA190612 External Turning Tool
Specifications
Brand Name :
sanyinghe
Model Number :
CNMA190612
Certification :
ISO
Place of Origin :
Zhuzhou-China
MOQ :
10pieces/box
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000Pcs/Month
Delivery Time :
5-30 days
Packaging Details :
10PCS/ PVC Packing
Usage :
External Turning Tool
Material :
Tungsten Carbide
Application :
Turning Machine
Workpiece :
Steel\ Stainless\ Cast Iron
Coating :
CVD/PVD, PVD CVD
Hardness :
90-93
Description

Carbide Turing Inserts CNMA For Cast Iron Tungsten Carbide Cutter CNMA190612 External Turning Tool CNC Cutting


Product Description:

1. Coating:ultra-fine grain coating techenology provides better wear resistance and toughness.

2. Substrate:inserts shows a good capability against plastic deformation and good capability of red hardness.

3. Scope:cemented carbide inserts for turning,milling,grooving ,drilling and aluminium machining.


Description Dimensions(mm)
L IC S φd Re
CNMA120404 12.9 12.7 4.76 5.16 0.4
CNMA120408 12.9 12.7 4.76 5.16 0.8
CNMA120412 12.9 12.7 4.76 5.16 1.2
CNMA120416 12.9 12.7 4.76 5.16 1.6
CNMA160608 16.1 15.875 6.35 6.35 0.8
CNMA160612 16.1 15.875 6.35 6.35 1.2
CNMA160616 16.1 15.875 6.35 6.35 1.6
CNMA190612 19.3 19.05 6.35 7.94 1.2
CNMA190616 19.3 19.05 6.35 7.94 1.6
CNMG120404 12.9 12.7 4.76 5.16 0.4
CNMG120408 12.9 12.7 4.76 5.16 0.8
CNMG120412 12.9 12.7 4.76 5.16 1.2
CNMG120416 12.9 12.7 4.76 5.16 1.6
CNMG160608 16.1 15.875 6.35 6.35 0.8
CNMG160612 16.1 15.875 6.35 6.35 1.2
CNMG160616 16.1 15.875 6.35 6.35 1.6
CNMG190612 19.3 19.05 6.35 7.94 1.2
CNMG190616 19.3 19.05 6.35 7.94 1.6

CNMA Carbide Turning Inserts Cast Iron Tungsten Carbide Cutter CNMA190612 External Turning ToolCNMA Carbide Turning Inserts Cast Iron Tungsten Carbide Cutter CNMA190612 External Turning ToolCNMA Carbide Turning Inserts Cast Iron Tungsten Carbide Cutter CNMA190612 External Turning ToolCNMA Carbide Turning Inserts Cast Iron Tungsten Carbide Cutter CNMA190612 External Turning Tool

Note:

These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.


FAQ

1. Who are we?
Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.

2. How can we guarantee quality?
We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.

3. What can you buy from us?
We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.

4. How is the packing?
All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.

5. What is your terms of payment?

Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
