Specifications
Brand Name :
sanyinghe
Model Number :
R390-170408M
Certification :
ISO
Place of Origin :
Zhuzhou-China
MOQ :
10pieces/box
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000Pcs/Month
Delivery Time :
5-7 Days
Packaging Details :
Plastic Box + Paper Box
Usage :
External Turning Tool
Hardness :
92
Color :
Grey /golden/customed
Coating :
PVD
Application :
CNC Milling Machining
Advantage :
High Wear Resistance
Description

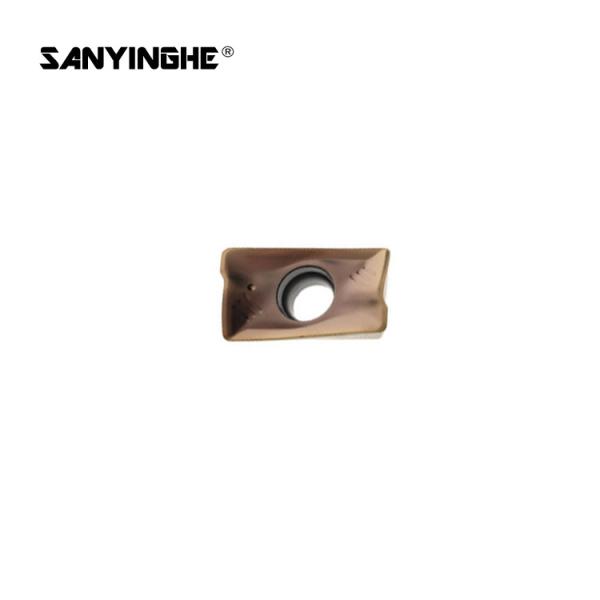

R390-170408M indexable CNC Milling Carbide Inserts for Lathe Machine Milling Holder

Product Description:

1. Carbide is more expensive per unit than other typical tool materials, and it is more brittle, making it susceptible to chipping and breaking. To offset these problems, the carbide cutting tip itself is often in the form of a small insert for a larger tipped tool whose shank is made of another material, usually carbon tool steel.

2. This gives the benefit of using carbide at the cutting interface without the high cost and brittleness of making the entire tool out of carbide. Most modern face mills use carbide inserts, as well as many lathe tools and endmills. In recent decades, though, solid-carbide endmills have also become more commonly used, wherever the application's characteristics make the pros (such as shorter cycle times) outweigh the cons

Insert CAT.NO. Dimensions(mm)
cutting edge length blade width thickness nose radiums
APMT1135PDTR 11.45 6.35 3.52 0.70
APMT1135PDTR-H2 11.45 6.35 3.52 0.70
APMT1135PDTR-M2 11.45 6.35 3.52 0.70
APMT1604PDTR-H2 17.01 9.525 4.82 0.66
APMT1604PDTR-M2 11.45 9.525 4.82 0.66
APMT1604PDTR-TT 17.01 6.35 3.52 0.70
R390-11T304M-PM-S 10 9.525 4.82 0.66
R390-11T308M-PM-S 10 6.8 3.59 0.4
R390-11T316M-PM-S 10 6.8 3.59 0.8
R390-11T302M-PM-S 10 6.8 3.59 1.6
R390-170408M-PM-S 15.7 9.6 4.76 0.8
R390-170420E-PM-S 15.7 9.6 4.76 2.0
R390-180608M-PM-S 15.4 11 6.33 0.8
R390-180612M-PM-S 15.4 11 6.33 1.2

R390-170408M Indexable CNC Carbide Milling Inserts For Lathe Machine Milling HolderR390-170408M Indexable CNC Carbide Milling Inserts For Lathe Machine Milling HolderR390-170408M Indexable CNC Carbide Milling Inserts For Lathe Machine Milling Holder

FAQ

1. Who are we?

Founded in 2014, Sanyinghe is a professional tungsten steel material supplier. Sanyinghe has a product design and production team, choose the products of our store, we believe you will be very satisfied.

2. How do we ensure product quality?

We have advanced design concepts and strict production management system, and the production process is in accordance with the system requirements to ensure high quality products.

3. What can you buy from us?

Our shop can provide you with high-quality tungsten steel slats and tungsten steel rods, which can be used for turning tools, milling cutters, planers, boring tools, etc., for cutting cast iron, non-ferrous metals, chemical fibers, graphite, stone and ordinary steel. It is used to cut hard-to-machine materials such as heat-resistant steel, stainless steel, and tool steel. It can also be used to make rock drilling tools, mining tools, drilling tools, wear-resistant parts, metal abrasives, cylinder liners, nozzles, etc.

4. How about the packaging?

All product packaging in our store will meet strict international export packaging requirements, and we will continue to work hard to design more beautiful and sturdy product packaging.

5. What are your payment terms?

Via Western Union, Paypal, T/T. We support EXW, FOB, FCA, CFR, CIF and DDP terms.
