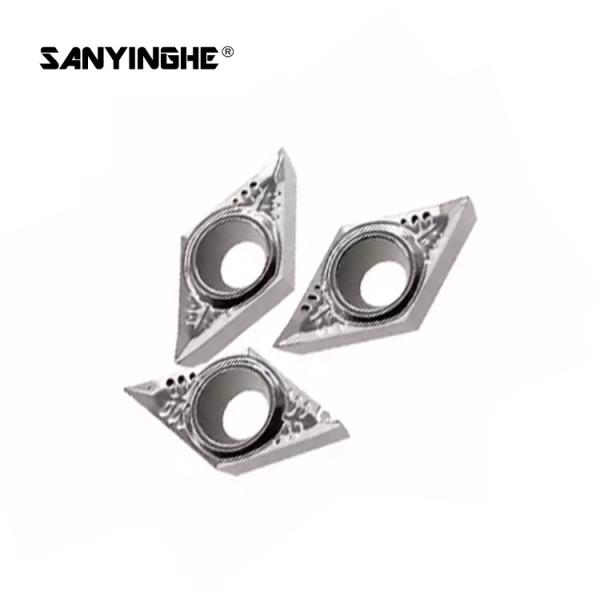

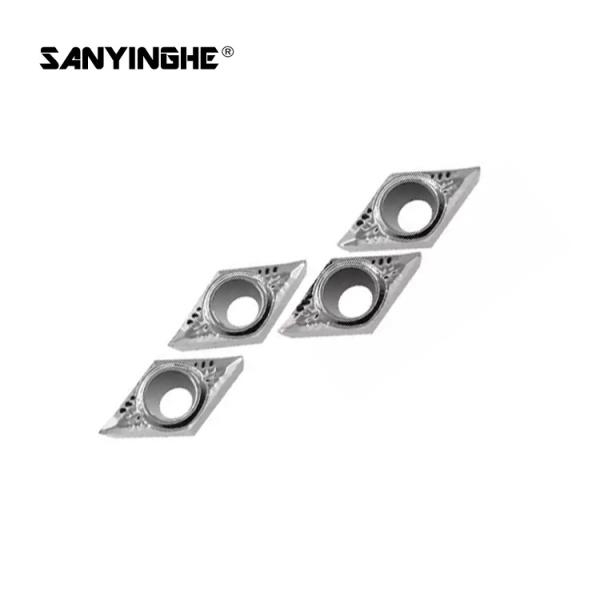

DCGT11T302 Tungsten Carbide Turning Inserts For Aluminum Material Cutting Tools
DCGT11T302 Tungsten Carbide Turning Inserts For Aluminum Material Cutting Tools
DCGT11T302 Tungsten Carbide Turning Inserts For Aluminum Material Cutting Tools
DCGT11T302 Tungsten Carbide Turning Inserts For Aluminum Material Cutting Tools
DCGT11T302 Tungsten Carbide Turning Inserts For Aluminum Material Cutting Tools
DCGT11T302 Tungsten Carbide Turning Inserts For Aluminum Material Cutting Tools
DCGT11T302 Tungsten Carbide Turning Inserts For Aluminum Material Cutting Tools
DCGT11T302 Tungsten Carbide Turning Inserts For Aluminum Material Cutting Tools
DCGT11T302 Tungsten Carbide Turning Inserts For Aluminum Material Cutting Tools
DCGT11T302 Tungsten Carbide Turning Inserts For Aluminum Material Cutting Tools
Specifications
Brand Name :
sanyinghe
Model Number :
DCGT11T302
Certification :
ISO
Place of Origin :
Zhuzhou-China
MOQ :
10pieces/box
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000Pcs/Month
Delivery Time :
5-30 days
Packaging Details :
10PCS/ PVC Packing
Usage :
External Turning Tool
Coating :
no coating
Grade :
JTK101 / H01
Application :
CNC Machine tool
Workpiece :
Aluminium / copper
Hardness: :
HRC32-58
Description

DCGT11T302 Tungsten Carbide Turning Insert For Aluminum Material Cutting Tools

Product Description:

Uncoated carbide grades for turning application of titanium

JTK101 - H01
1. Increased wear resistance and chipping resistance with the use of ultra fine substrate ;
2. Improved welding resistance and chipping resistance with the use of special surface treatment and sharp cutting edge of VP chip breaker ;
3. Excellent tool life when finishing titanium alloy at high speed .
AK special chip breaker for aluminum
1. Unique and 3-dimensional rake angle controls chip breaking and chip flow ensuring longer tool life and reducing cutting load ;
2. High rake angle at cutting edge part reduces cutting load to increase tool life ;
3. Buffed finish on top face controls chip flow reducing built-up edge ;
ordering code L φI.C S φd r
CCGT060204-AK 6.40 6.35 2.38 2.80 0.40
CCGT060208-AK 6.40 6.35 2.38 2.80 0.80
CCGT09T302-AK 9.70 9.52 3.97 4.40 0.20
CCGT09T304-AK 9.70 9.52 3.97 4.40 0.40
CCGT09T308-AK 9.70 9.52 3.97 4.40 0.80
CCGT120404-AK 12.90 12.70 4.76 5.56 0.40
CCGT120408-AK 12.90 12.70 4.76 5.56 0.80
DCGT070202-AK 7.80 6.35 2.38 2.80 0.20
DCGT070204-AK 7.80 6.35 2.38 2.80 0.40
DCGT070208-AK 7.80 6.35 2.38 2.80 0.80
DCGT11T302-AK 11.60 9.52 3.97 4.40 0.20
DCGT11T304-AK 11.60 9.52 3.97 4.40 0.40
DCGT11T308-AK 11.60 9.52 3.97 4.40 0.80
SCGT09T302-AK 9.52 9.52 3.97 4.40 0.20
SCGT09T304-AK 9.52 9.52 3.97 4.40 0.40
SCGT09T308-AK 9.52 9.52 3.97 4.40 0.80

DCGT11T302 Tungsten Carbide Turning Inserts For Aluminum Material Cutting ToolsDCGT11T302 Tungsten Carbide Turning Inserts For Aluminum Material Cutting ToolsDCGT11T302 Tungsten Carbide Turning Inserts For Aluminum Material Cutting Tools

Note:

These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.

FAQ

1. Who are we?

Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.

2. How can we guarantee quality?

We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.

3. What can you buy from us?

We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.

4. How is the packing?

All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.

5. What is your terms of payment?

Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
