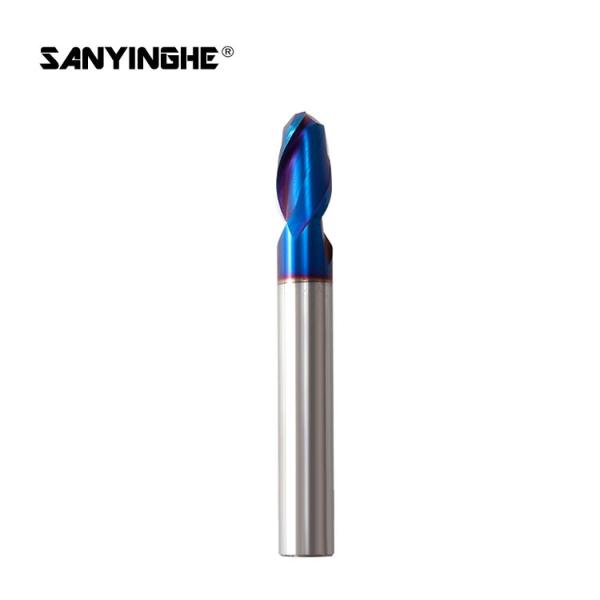

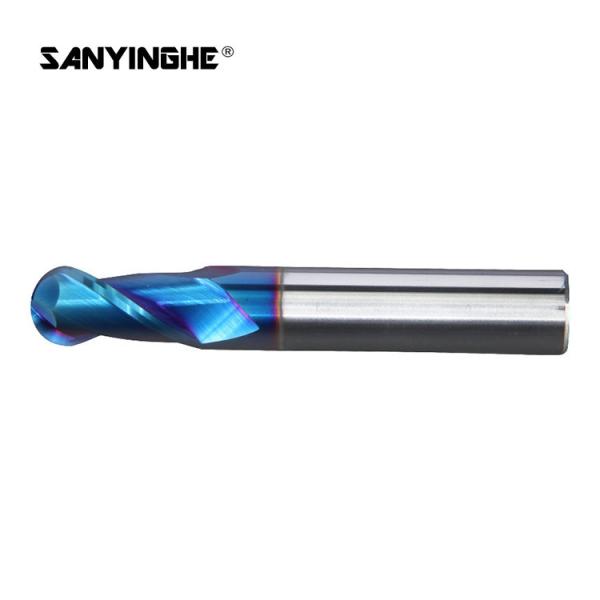

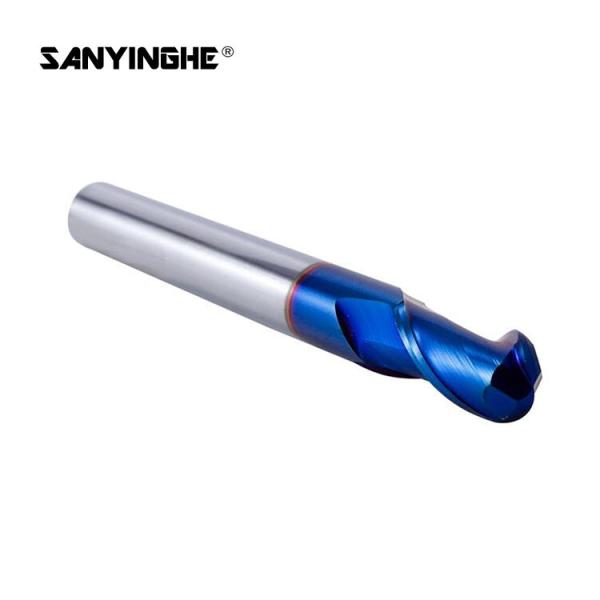

CNC Solid Carbide Tungsten Milling Cutters 2 Flute Ball Nose End Mill For Steel
CNC Solid Carbide Tungsten Milling Cutters 2 Flute Ball Nose End Mill For Steel
CNC Solid Carbide Tungsten Milling Cutters 2 Flute Ball Nose End Mill For Steel
CNC Solid Carbide Tungsten Milling Cutters 2 Flute Ball Nose End Mill For Steel
CNC Solid Carbide Tungsten Milling Cutters 2 Flute Ball Nose End Mill For Steel
CNC Solid Carbide Tungsten Milling Cutters 2 Flute Ball Nose End Mill For Steel
CNC Solid Carbide Tungsten Milling Cutters 2 Flute Ball Nose End Mill For Steel
CNC Solid Carbide Tungsten Milling Cutters 2 Flute Ball Nose End Mill For Steel
CNC Solid Carbide Tungsten Milling Cutters 2 Flute Ball Nose End Mill For Steel
CNC Solid Carbide Tungsten Milling Cutters 2 Flute Ball Nose End Mill For Steel
Specifications
Brand Name :
Sanyinghe
Model Number :
As your requirements
Certification :
ISO
Place of Origin :
Zhuzhou,China
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
3000pcs/month
Delivery Time :
7 days
Packaging Details :
1pcs in one plastic box, and servel boxes in one carton.
Material :
solid carbide
Flute :
2/3/4/5/6
Size :
Customers Requirements
Application :
Metal Working Tool
Type :
CNC End Mill
Description

2 Flutes Ball Nose End Mill Cnc Solid Carbide Milling Tool Ball Nose Milling Cutter For Steel

PRODUCT DESCRIPTION

1. Micrograin solid carbide end mill
2. Excellent combination of upper and lower blades, sharp cutting edge;
3. High precision grinded and polished, high abrasion resistance and temperature resistance, good rigidity, not easy to break;
4. No burrs for Up and down spiral machining;
5. High performance, improve the work efficiency, reduce cost;

Features:
Higher hardness of coating excellent wear-resistance
Processing type:
Metal
Flutes:
2
Machine Type:
CNC Milling Machine
Helix angle:
35°
MILL DIA TOLERANCE:
0-0.020mm
Suitable For:
High performance on gaphite,wrought aluminum,bakelite,plastics,wood,brass
SHANK DIA TOLERANCE:
H6

NO
Specification
Diameter
Cutting Length
Shank
AOL
Flute
1
R0.5*2*D4*50L
1.0
2
4
50
2
2
R0.75*3*D4*50L
1.5
3
4
50
2
3
R1*4*D4*50L*D4
2.0
4
4
50
2
4
R1.5*6*D4*50L
3.0
6
4
50
2
5
R2*8*D4*50L
4.0
8
4
50
2
6
R2.5*10*D6*50L
5.0
10
6
50
2
7
R3*12*D6*50L
6.0
12
6
50
2
8
R4*16*D8*60L
8.0
16
8
60
2
9
R5*20*D10*75L
10.0
20
10
75
2
10
R6*24*D12*75L
12.0
24
12
75
2
11
R1*4*D3*50L
2.0
4
3
50
2
12
R1.75*7*D4*50L
3.5
7
4
50
2
13
R2.5*10*D5*50L
5.0
10
5
50
2
14
R2*8*D4*75L
4.0
8
4
75
2
15
R3*12*D6*75L
6.0
12
6
75
2
16
R4*16*D8*75L
8.0
16
8
75
2
17
R2*8*D4*100L
4.0
8
4
100
2
18
R3*12*D6*100L
6.0
12
6
100
2
19
R4*16*D8*100L
8.0
16
8
100
2
20
R5*20*D10*100L
10.0
20
10
100
2
21
R6*24*D12*100L
12.0
24
12
100
2
22
R7*28**D14*100L
14
28.0
14
100
2
23
R8*32*D16*100L
16
32.0
16
100
2
R9*36*D18*100L
18
36.0
18
100
2
24
R10*40*D20*100L
20
40.0
20
100
2
25
R3*12*D6*150L
6
12.0
6
150
2
26
R4*16*D8*150L
8
16.0
8
150
2
27
R5*20*D10*150L
10
20.0
10
150
2
28
R6*24*D12*150L
12
24.0
12
150
2
29
R7*28*D14*150L
14
28.0
14
150
2
30
R8*32*D16*150L
16
32.0
16
150
2
31
R9*36*D18*150L
18
36.0
18
150
2
32
R10*40*D20*150L
20
40.0
20
150
2

CNC Solid Carbide Tungsten Milling Cutters 2 Flute Ball Nose End Mill For SteelCNC Solid Carbide Tungsten Milling Cutters 2 Flute Ball Nose End Mill For SteelCNC Solid Carbide Tungsten Milling Cutters 2 Flute Ball Nose End Mill For Steel

FAQ

1. Who are we?

Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.

2. How can we guarantee quality?

We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.

3. What can you buy from us?

We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.

4. How is the packing?

All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.

5. What is your terms of payment?

Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.

(1) Micrograin solid carbide end mill
(2) Excellent combination of upper and lower blades, SHARP cutting edge;
(3) High precision grinded and polished, high abrasion resistance and temperature resistance, good rigidity, not easy to break;
(4) No burrs for Up and down spiral machining;
(5) High performance, improve the work efficiency, reduce cost;
