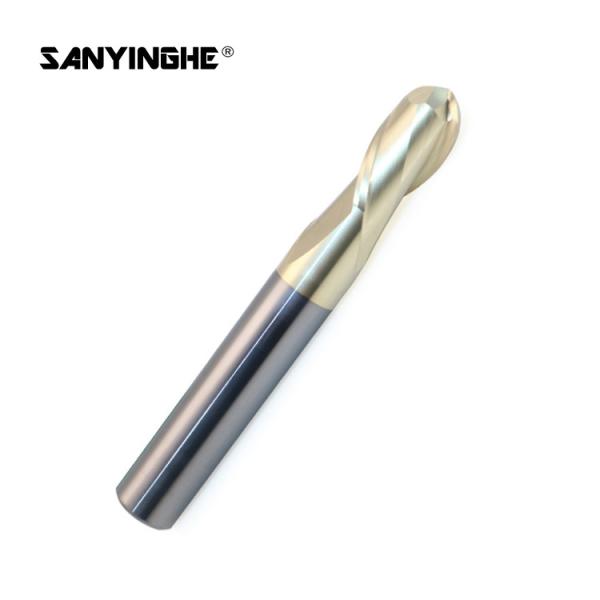

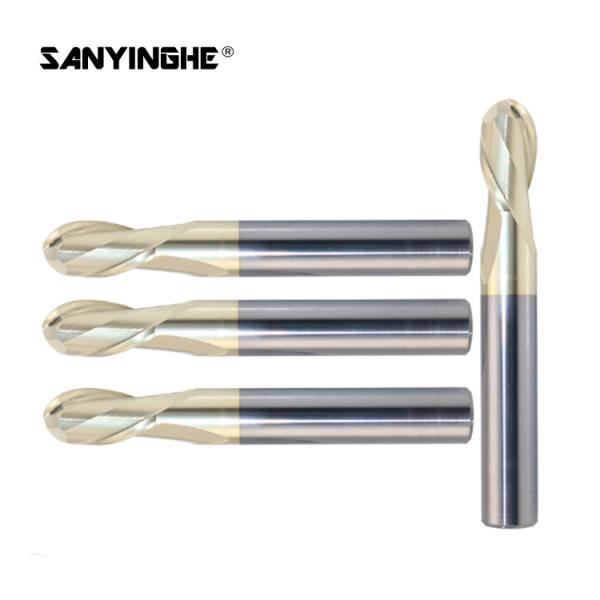

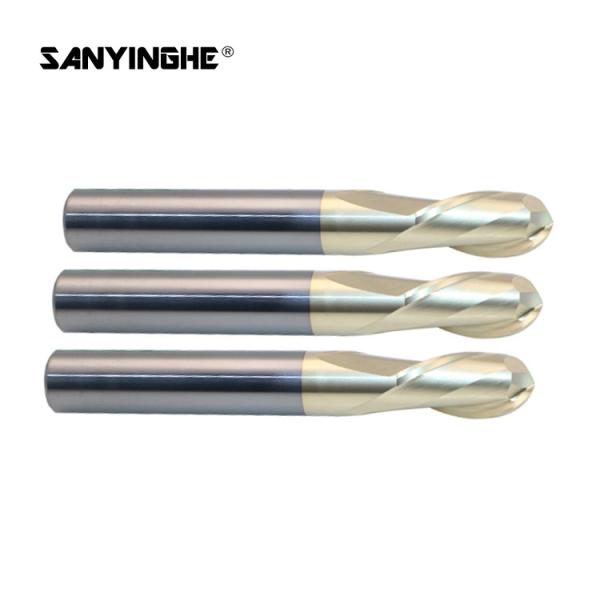

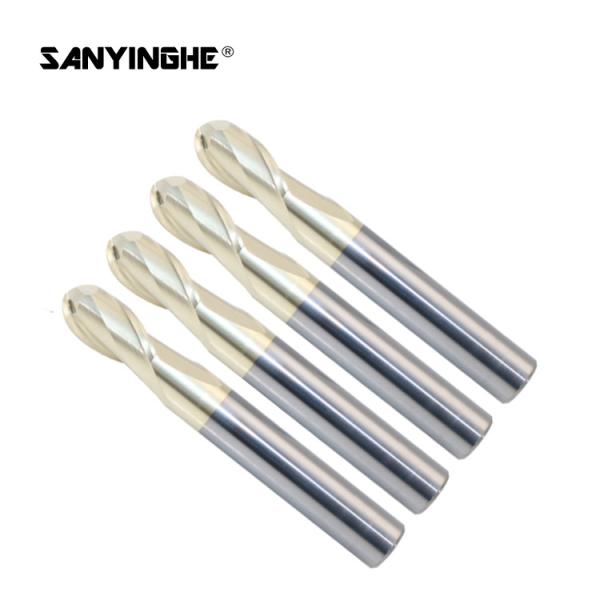

2 Flutes Carbide Ball Nose End Mills Cutter HRC60 R1.5x50L R2.0x75L
2 Flutes Carbide Ball Nose End Mills Cutter HRC60 R1.5x50L R2.0x75L
2 Flutes Carbide Ball Nose End Mills Cutter HRC60 R1.5x50L R2.0x75L
2 Flutes Carbide Ball Nose End Mills Cutter HRC60 R1.5x50L R2.0x75L
2 Flutes Carbide Ball Nose End Mills Cutter HRC60 R1.5x50L R2.0x75L
2 Flutes Carbide Ball Nose End Mills Cutter HRC60 R1.5x50L R2.0x75L
2 Flutes Carbide Ball Nose End Mills Cutter HRC60 R1.5x50L R2.0x75L
2 Flutes Carbide Ball Nose End Mills Cutter HRC60 R1.5x50L R2.0x75L
Specifications
Brand Name :
Sanyinghe
Model Number :
Customize
Certification :
ISO
Place of Origin :
Zhuzhou, China
MOQ :
3PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
8000Pcs/Month
Delivery Time :
5-7 days
Packaging Details :
1PCS/ PVC Packing, 10PCS PVC Packing
Material :
Carbide
Type :
Ball Nose End Mill
Application :
CNC lathe for milling
Workpiece :
Steel, Cast Iron, Alloy steel, Stainless Steel, Copper Alloy
Coating :
Uncoating/ AlTiN etc
Description

2 Flutes HRC60 CNC Carbide Milling Cutter R1.5x50L R2.0x75L Ball Nose End Mill For Stainless Steel

Product Description:

1. Micro grain raw material
2. Grain size: 0.4-0.6μm
3. Co 10%, 12%
4. TRS >3600 N/mm2
5. Hardness HRA 91.8-92.5
6. Work piece HRC45-50 HRC55-60 HRC65 HRC68
7. Helix angle 30°-45 °
8. Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
9. Diameter of rods 4-20 mm, Length 50-100 mm
10. Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
11. Flutes No. 1-7

Name
CNC End Mills
Material
Carbide
Hardness
HRC45/55/60/63/65
Suitable Machine
CNC Grindng Center, Engraving Machine, high speed machine,etc.
Flute
1-6
Application
Ball Nose End Mill
Workpiece
Carbon steel, high speed steel, stainess steel, requeched steel and other difficulty matarials.
Features
The sharp and positive rake angles are sharpened and sharpened. The 4-blade geometry cutting design has a large capacity for chip
removal. It is a smoother cutting, non-stick knife, and achieves efficient machining.

Note:

We have most conventional products in stock. Also, we can produce for you based on your requirements. Any need, please leave message to us. Thank you!

Diameter(mm)
Cutting length(mm)
Total length(mm)
Shank diameter(mm)
D1mm
3mm
50mm
4mm
D2mm
4mm
50mm
4mm
D3mm
6mm
50mm
4mm
D4mm
8mm
50mm
4mm
D5mm
10mm
50mm
6mm
D6mm
12mm
50mm
6mm
D8mm
16mm
60mm
8mm
D6mm
20mm
75mm
6mm
D8mm
20mm
75mm
8mm
D10mm
25mm
75mm
10mm
D12mm
25mm
75mm
12mm
D8mm
30mm
100mm
8mm
D10mm
30mm
100mm
10mm
D12mm
30mm
100mm
12mm
D14mm
35mm
100mm
14mm

2 Flutes Carbide Ball Nose End Mills Cutter HRC60 R1.5x50L R2.0x75L2 Flutes Carbide Ball Nose End Mills Cutter HRC60 R1.5x50L R2.0x75L2 Flutes Carbide Ball Nose End Mills Cutter HRC60 R1.5x50L R2.0x75L

FAQ

1. Who are we?

Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.

2. How can we guarantee quality?

We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.

3. What can you buy from us?

We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.

4. How is the packing?

All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.

5. What is your terms of payment?

Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
