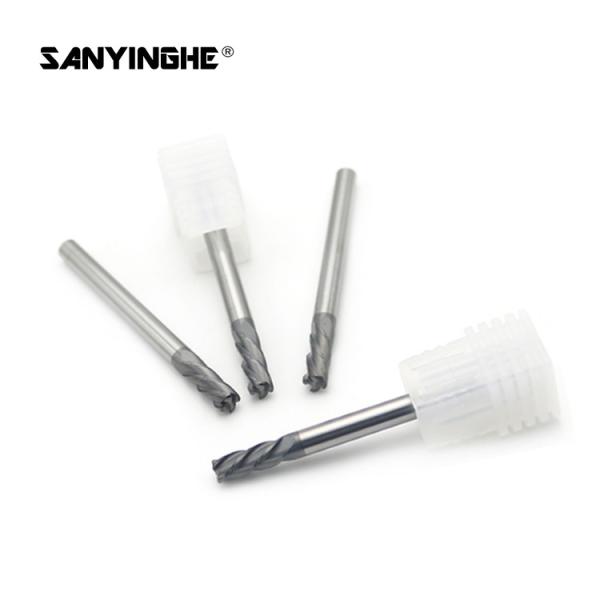

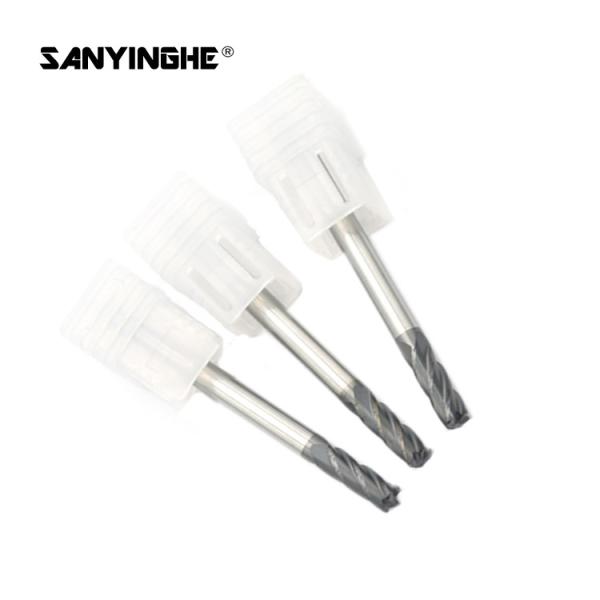

HRC65 Corner Radius Carbide Ball End Mill For Steel 4 Flute R0.5 D12R1x35xD12x100L
HRC65 Corner Radius Carbide Ball End Mill For Steel 4 Flute R0.5 D12R1x35xD12x100L
HRC65 Corner Radius Carbide Ball End Mill For Steel 4 Flute R0.5 D12R1x35xD12x100L
HRC65 Corner Radius Carbide Ball End Mill For Steel 4 Flute R0.5 D12R1x35xD12x100L
HRC65 Corner Radius Carbide Ball End Mill For Steel 4 Flute R0.5 D12R1x35xD12x100L
HRC65 Corner Radius Carbide Ball End Mill For Steel 4 Flute R0.5 D12R1x35xD12x100L
HRC65 Corner Radius Carbide Ball End Mill For Steel 4 Flute R0.5 D12R1x35xD12x100L
HRC65 Corner Radius Carbide Ball End Mill For Steel 4 Flute R0.5 D12R1x35xD12x100L
HRC65 Corner Radius Carbide Ball End Mill For Steel 4 Flute R0.5 D12R1x35xD12x100L
HRC65 Corner Radius Carbide Ball End Mill For Steel 4 Flute R0.5 D12R1x35xD12x100L
Specifications
Brand Name :
Sanyinghe
Model Number :
D4/6/8/10/12/16/20mm
Certification :
ISO
Place of Origin :
Zhuzhou,China
MOQ :
5PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
3000pcs/month
Delivery Time :
7 days
Packaging Details :
1PCS In 1 Plastic Box, and Servel Boxes In 1 Carton.
Material :
Tungsten Carbide
Usage :
Carbon Steel, Alloy Steel, Cast Iron
Size :
Customers Requirements
Application :
Metal Working Tool
Description

4 Flute R0.5 D12R1x35xD12x100L Cnc Corner Radius Milling Cutter HRC65 End Mill For High-Hard Steel

PRODUCT DESCRIPTION

Features

1.End Mill Bits are used for side milling, end milling, finish machining, etc.
2.Apply to wood, copper alloy,steel, stainless steel(mild steel), alloy steel, carbon steel, die steel, tool steel, cast iron, titanium, aluminum, etc.
3.It is made of tungsten carbide. It can effectively ensure high-wear resistance and a long service life. You can decrease the times of changing cutters, save production time.
4.Straight shank handle, rounded chamfer design for easy installation and improved work efficiency.
5.The blade is designed with a suitable high-speed cutting edge and an excellent surface finish for improved productivity.

  1. HRC45 is suitable for Copper, Alloy Copper, Iron, Cast Iron, Carbon Steel, Alloy Steel, Common Steel under hardness HRC45.
  2. HRC55 is suitable for Copper, Copper Alloy, Iron, Cast Iron,Carbon Steel,Mould Steel, Alloy Steels, , Stainless Steel, Common Steel under hardness HRC55
  3. HRC60 is suitable for Copper, Copper Alloy, Iron, Cast Iron,Carbon Steel,Mould Steel, Alloy Steels, , Stainless Steel, Common Steel under hardness HRC60
  4. HRC65 suitable for Hardened steel; Mold steel; Die steel; Alloy steel above HRC60

Corner Radius End Mill
Specification-R0.2
Flute
1
D1R0.2*3*D4*50L
4
2
D1.5R0.2*4.5*D4*50L
4
3
D2R0.2*6*D4*50L
4
4
D2.5R0.2*7.5*D4*50L
4
5
D3R0.2*9*D4*50L
4
6
D4R0.2*12*D4*50L
4
7
D6R0.2*15*D6*50L
4
8
D8R0.2*20*D8*60L
4
Corner Radius End Mill
Specification-R0.5
Flute
1
D2R0.5*6*D4*50L
4
2
D2.5R0.5*7.5*D4*50L
4
3
D3R0.5*9*D4*50L
4
4
D3.5R0.5*10.5*D4*50L
4
5
D4R0.5*12*D4*50L
4
6
D4R0.5*14*D4*75L
4
7
D4R0.5*16*D4*100L
4
8
D5R0.5*12.5*D5*50L
4
9
D6R0.5*15*D6*50L
4
10
D6R0.5*20*D6*75L
4
11
D6R0.5*25*D6*100L
4
12
D8R0.5*20*D8*60L
4
13
D8R0.5*25*D8*75L
4
14
D8R0.5*30*D8*100L
4
15
D10R0.5*25*D10*75L
4
16
D10R0.5*30*D10*100L
4
17
D12R0.5*30*D12*75L
4
18
D12R0.5*35*D12*100L
4
Corner Radius End Mill
Specification-R1
Flute
1
D3R1*9*D4*50L
4
2
D3R1*9*D3*50L
4
3
D4R1*12*D4*50L
4
4
D4R1*14*D4*75L
4
5
D4R1*16*D4*100L
4
6
D5R1*12.5*D5*50L
4
7
D5R1*15*D5*75L
4
8
D5R1*12.5*D6*50L
4
9
D6R1*15*D6*50L
4
10
D6R1*20*D6*75L
4
11
D6R1*25*D6*100L
4
12
D8R1*20*D8*60L
4
13
D8R1*25*D8*75L
4
14
D8R1*30*D8*100L
4
15
D10R1*25*D10*75L
4
16
D10R1*30*D10*100L
4
17
D12R1*30*D12*75L
4
19
D12R1*35*D12*100L
4
Corner Radius End Mill
Specification-R2
Flute
1
D8R2*20*D8*60L
4
2
D10R2*25*D10*75L
4
3
D12R2*30*D12*75L
4

HRC65 Corner Radius Carbide Ball End Mill For Steel 4 Flute R0.5 D12R1x35xD12x100LHRC65 Corner Radius Carbide Ball End Mill For Steel 4 Flute R0.5 D12R1x35xD12x100LHRC65 Corner Radius Carbide Ball End Mill For Steel 4 Flute R0.5 D12R1x35xD12x100L

FAQ

1. Who are we?

Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.

2. How can we guarantee quality?

We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.

3. What can you buy from us?

We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.

4. How is the packing?

All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.

5. What is your terms of payment?

Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
