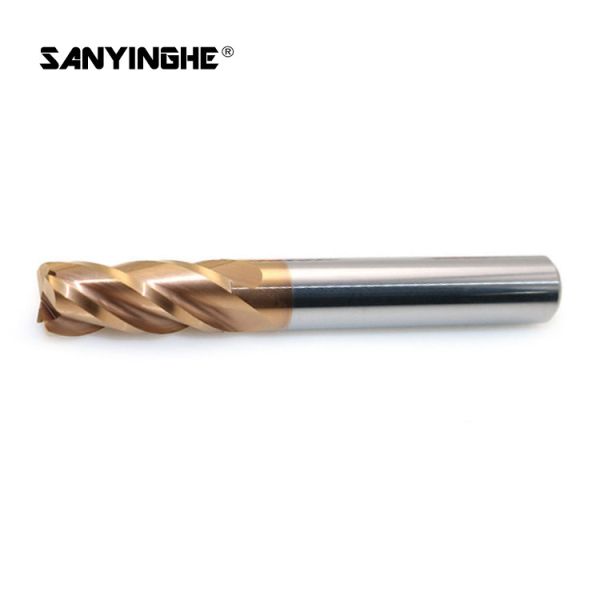

Flat CNC Carbide Square End Mill Milling Cutter 20mm For Stainless Steel
Flat CNC Carbide Square End Mill Milling Cutter 20mm For Stainless Steel
Flat CNC Carbide Square End Mill Milling Cutter 20mm For Stainless Steel
Flat CNC Carbide Square End Mill Milling Cutter 20mm For Stainless Steel
Flat CNC Carbide Square End Mill Milling Cutter 20mm For Stainless Steel
Flat CNC Carbide Square End Mill Milling Cutter 20mm For Stainless Steel
Flat CNC Carbide Square End Mill Milling Cutter 20mm For Stainless Steel
Flat CNC Carbide Square End Mill Milling Cutter 20mm For Stainless Steel
Specifications
Brand Name :
Sanyinghe
Model Number :
customize
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
3000pcs/month
Delivery Time :
7 days
Packaging Details :
1PCS In 1 Plastic Box, and Servel Boxes In 1 Carton.
Material :
Carbide
Name :
End Mill
Application :
Steel, Stainless Steel, Mould Steel, Carbon Steel, Copper,
Usage :
General/High Speed
Description

Square Flat Cnc Carbide Milling Cutter 20mm Cnc End Mill Flatten Milling Cutter For Stainless Steel

PRODUCT DESCRIPTION

1. Square end milling cutters are also known as a "flat end mills". The corners of these mills are sharp and generate a 90° angle. They can be single end or double end and they can be made from solid carbide or various compositions of tungsten carbide.
2. Carbide square end mills are the most productive. They can be general purpose or high perfomance geometries. They can be used used for plunging, grooving, side milling, face milling, and counter boring.
3. These are the most popular milling cutters in the industry. They are available in a wide variety of diameter sizes.

Product Name
Square End Mills or Flat End Mills
Material
AlTiN, TiAIN, TiCN, Tin (As Required)
Standard size(Shank Diameter)
4mm,6mm,8mm,10mm,12mm,14mm,16mm,18mm,20mm
Flutes
2/4 Flutes
Suitable for
Cast Iron,Aluminum,Copper,Carbon Steel,Carbon Steel,Stainless steel
Advantages
High Precision,Good Surface & Performace

Item
AlTiN
TiSiN
Nano
Nano
Hardness(HV)
3200
3600
42(GPA)
43(GPA)
Thickness(UM)
2.5-3
3
3
3
Oxidation Temp(°)
900
1000
1200
1300
Friction Coeffient
0.3
0.45
0.4
0.45

Flute

diameter

 Flute length Overall length Shank diameter Flute diameter Flute length Overall length Shank diameter
0.3-0.6 1.5 50 ∅4 ∅5 13 50 ∅6
0.7-0.8 2.5 50 ∅4 ∅6 15 50 ∅6
∅1 3 50 ∅4 ∅7 18 60 ∅8
∅1.5 4 50 ∅4 ∅8 20 60 ∅8
∅2 5 50 ∅4 ∅9 22 75 ∅10
∅2.5 6 50 ∅4 ∅10 30 75 ∅10
∅3 8 50 ∅3 ∅12 30 75 ∅12
∅3.5 9 50 ∅4 ∅14 40 100 ∅14
∅4 10 50 ∅4 ∅16 40 100 ∅16

Cutter Dia. (D)
Shank Dia.(D1)
Flute Length(L1)
Overall Length(L)
1
4
3
50
1.5
4
4.5
50
2
4
6
50
2.5
4
7
50
3
4
9
50
3.5
4
10
50
4
4
11
50
5
5/6
13
50
6
6
15
50
8
8
20
60
10
10
25
75
12
12
30
75
14
14
45
100
16
16
50
100
20
20
50
100

Flat CNC Carbide Square End Mill Milling Cutter 20mm For Stainless SteelFlat CNC Carbide Square End Mill Milling Cutter 20mm For Stainless SteelFlat CNC Carbide Square End Mill Milling Cutter 20mm For Stainless Steel

FAQ

1. Who are we?

Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.

2. How can we guarantee quality?

We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.

3. What can you buy from us?

We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.

4. How is the packing?

All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.

5. What is your terms of payment?

Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
