Specifications
Brand Name :
Sanyinghe
Model Number :
Customize requirements
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
3000pcs/month
Delivery Time :
5-7 days
Packaging Details :
1PCS In 1 Plastic Box, and Servel Boxes In 1 Carton.
Material :
Tungsten Carbide
Workpiece :
Cooper.Cast Iron.Carbon Steel.Mould Steel
Type :
Metal Cutting Tools
OEM :
Yes
Application :
CNC Milling Machining
Name :
Cnc Milling Cutter
Description

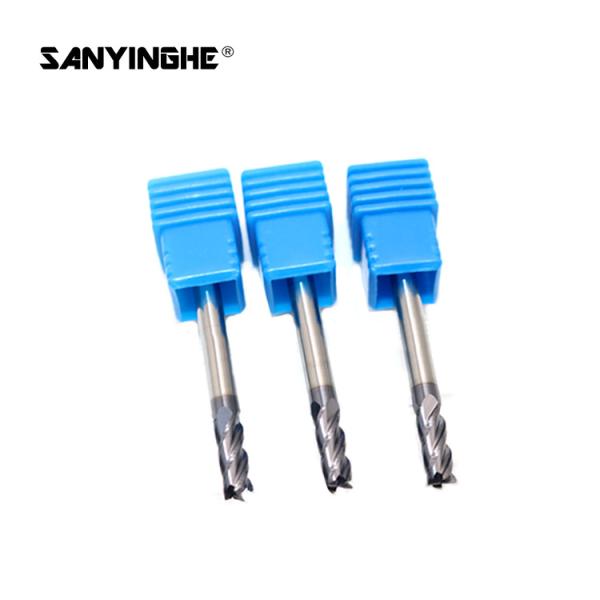

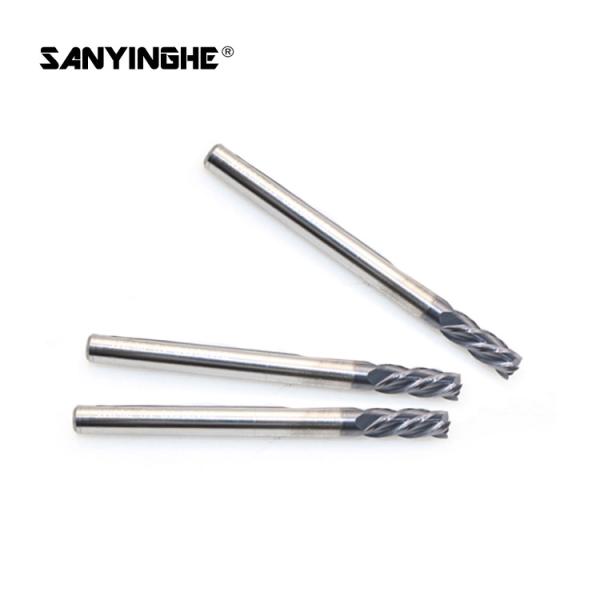

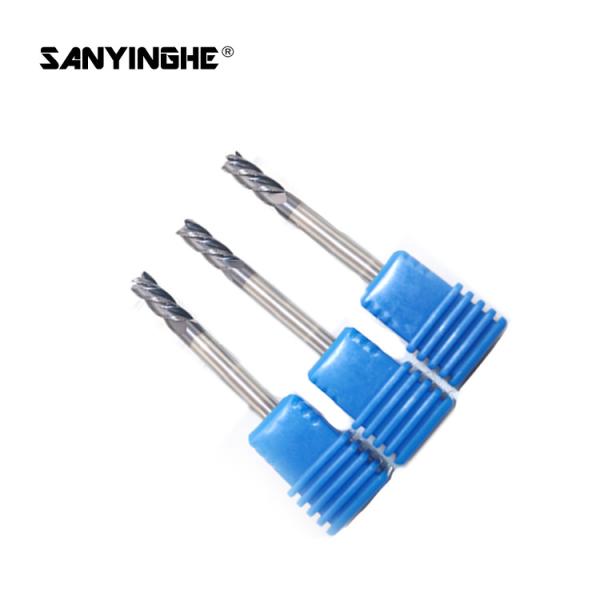

Square End Mills 4 Flute Cnc Machine Cutting Tool Carbide Milling Cutter 3mm End Mills 6mm Shank

PRODUCT DESCRIPTION

1.Hardness:HRC45/50/55/60/65
2.Flutes: Ball/Flat head
3.Helix Angle: 35 degree
4.Centered Cutting: Yes
5.Type: Square End Mill / Ball end mill / Roughing end mill / Mills for Aluminun
6.Workpiece material: Steel, mould steel, low alloy, non-treated steel
7.Tolerance:-0.01~0
8.Helix Angle:35°
9.Suitable for:High Speed Processing
10.Application:Side Face/ Step Shoulder/Straight Slot
11.Workpiece Material:Cast Iron/ Steel etc.
12.Product Keywords:4 Flute,carbid end mill

Product Name

 Carbide End Mills
Material Carbide
Coating AITiN
Usage Used on CNC machines for a variety of milling operations like drilling, milling molds etc.
Available in Square end, ball and corner radius geometries.
Features Suitable for processing ordinary steel andcastiron materials.

Coating Classifying and Advantage
Item
Coating Type
AlTin
TiAlN
TiSiN
Naco
Characteristic
Hardness(HV)
3300
2800
4300
42(GPA)
Thickness(UM)
2.5-3
2.5-3
3
3
Oxidation Temp.(°C)
900
800
1000
1200
Friction Coefficient
0.35
0.3
0.25
0.4
Color
Black
Bronze
Bronze and gold
Blue
Advantages
High heat stability
Normally cutting
Suitable for heavy cutting, and high hardness cutting
For high precision cutting
Suitable for high speed, dry cutting
Suitable for cutting mould steel, stainless
steel
Suitable for high hardness cutting, mould steel processing
Most suitable for carbide cutting tools, turning insert

Square 4 Flute Cnc Machine Cutting Tool Carbide Milling Cutter 3mm End MillsSquare 4 Flute Cnc Machine Cutting Tool Carbide Milling Cutter 3mm End MillsSquare 4 Flute Cnc Machine Cutting Tool Carbide Milling Cutter 3mm End Mills

FAQ

1. Who are we?

Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.

2. How can we guarantee quality?

We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.

3. What can you buy from us?

We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.

4. How is the packing?

All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.

5. What is your terms of payment?

Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
