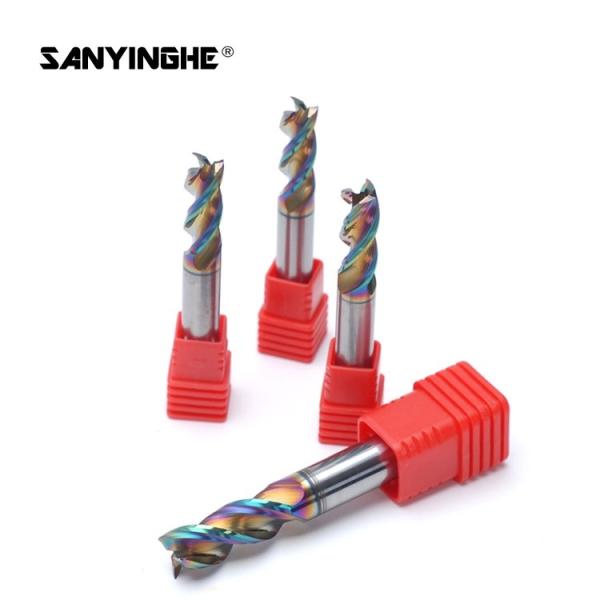

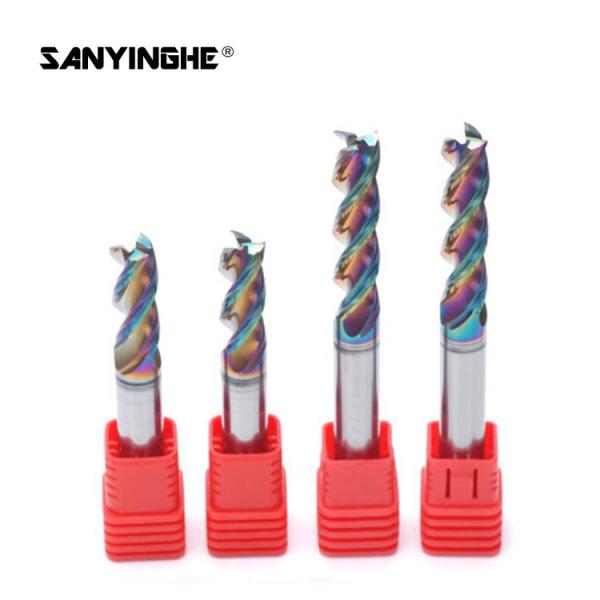

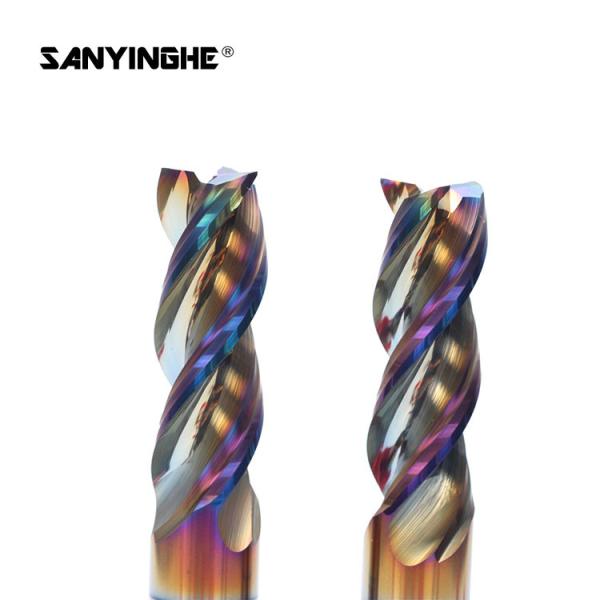

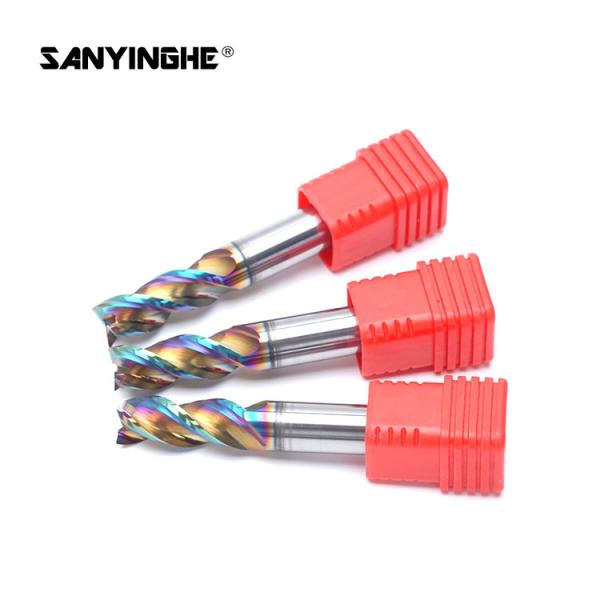

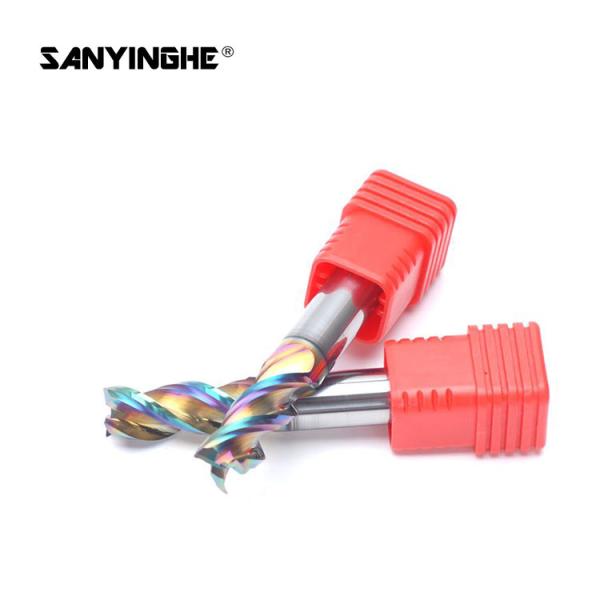

3 Flute Carbide Square End Mill Slot Milling Cutter HRC65 Tool For Aluminum
3 Flute Carbide Square End Mill Slot Milling Cutter HRC65 Tool For Aluminum
3 Flute Carbide Square End Mill Slot Milling Cutter HRC65 Tool For Aluminum
3 Flute Carbide Square End Mill Slot Milling Cutter HRC65 Tool For Aluminum
3 Flute Carbide Square End Mill Slot Milling Cutter HRC65 Tool For Aluminum
3 Flute Carbide Square End Mill Slot Milling Cutter HRC65 Tool For Aluminum
3 Flute Carbide Square End Mill Slot Milling Cutter HRC65 Tool For Aluminum
3 Flute Carbide Square End Mill Slot Milling Cutter HRC65 Tool For Aluminum
3 Flute Carbide Square End Mill Slot Milling Cutter HRC65 Tool For Aluminum
3 Flute Carbide Square End Mill Slot Milling Cutter HRC65 Tool For Aluminum
Specifications
Brand Name :
Sanyinghe
Model Number :
3-20mm
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
3000pcs/month
Delivery Time :
7 days
Packaging Details :
1PCS In 1 Plastic Box, and Servel Boxes In 1 Carton.
Material :
Tungsten Carbide
Name :
End Mill, Square milling cutter
Machine :
CNC tool and cutter grinder machines
Standard size :
4mm,6mm,8mm,10mm,12mm,14mm,16mm,18mm,20mm
Description

3 Flute Carbide Flat Endmill Square Slot Milling Cutter HRC65 Coating Cutting Milling Tool For Aluminum

PRODUCT DESCRIPTION

1. Raw Material: Use tungsten carbide material, good toughness. Widely used in the production and manufacture of integral tools such as end mills, drills, etc.

2. Coating: thickness: 1-2μm.
With ultra-high hardness, low friction coefficient, high temperature resistance, good electrical insulation, chemilcal barrier, high thermal conductivity and ultra-high anti-blocking performance.

Item
AlTiN
TiSiN
Nano
Nano
Hardness(HV)
3200
3600
42(GPA)
43(GPA)
Thickness(UM)
2.5-3
3
3
3
Oxidation Temp(°)
900
1000
1200
1300
Friction Coeffient
0.3
0.45
0.4
0.45

Material
Carbide, Tungsten carbide
Coating
AlCrN
Product Name
end milling cutter
Application
CNC processing
Suitable for
Cast iron, carbon steel, alloy steel, non-ferrous metals, etc.

Flute Dia(mm)
Overall Length(mm)
Cutting Length(mm)
Shank Dia(mm)
Flutes
1
50
3
4
3
4
75
16
4
3
6
100
30
6
3
10
100
40
10
3
16
100
45
16
3
20
100
45
20
3
Support customization. Welcome to consult.



3 Flute Carbide Square End Mill Slot Milling Cutter HRC65 Tool For Aluminum3 Flute Carbide Square End Mill Slot Milling Cutter HRC65 Tool For Aluminum3 Flute Carbide Square End Mill Slot Milling Cutter HRC65 Tool For Aluminum

FAQ

1. Who are we?

Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.

2. How can we guarantee quality?

We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.

3. What can you buy from us?

We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.

4. How is the packing?

All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.

5. What is your terms of payment?

Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
