HRC63 Tungsten Carbide Milling Cutter 4 2 Flute End Mill Cnc Square Milling Cutter
HRC63 Tungsten Carbide Milling Cutter 4 2 Flute End Mill Cnc Square Milling Cutter
HRC63 Tungsten Carbide Milling Cutter 4 2 Flute End Mill Cnc Square Milling Cutter
HRC63 Tungsten Carbide Milling Cutter 4 2 Flute End Mill Cnc Square Milling Cutter
HRC63 Tungsten Carbide Milling Cutter 4 2 Flute End Mill Cnc Square Milling Cutter
HRC63 Tungsten Carbide Milling Cutter 4 2 Flute End Mill Cnc Square Milling Cutter
HRC63 Tungsten Carbide Milling Cutter 4 2 Flute End Mill Cnc Square Milling Cutter
HRC63 Tungsten Carbide Milling Cutter 4 2 Flute End Mill Cnc Square Milling Cutter
HRC63 Tungsten Carbide Milling Cutter 4 2 Flute End Mill Cnc Square Milling Cutter
HRC63 Tungsten Carbide Milling Cutter 4 2 Flute End Mill Cnc Square Milling Cutter
HRC63 Tungsten Carbide Milling Cutter 4 2 Flute End Mill Cnc Square Milling Cutter
HRC63 Tungsten Carbide Milling Cutter 4 2 Flute End Mill Cnc Square Milling Cutter
Specifications
Brand Name :
Sanyinghe
Model Number :
D4/6/8/10/12/16/20mm
Certification :
ISO
Place of Origin :
Zhuzhou,China
MOQ :
5PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
3000pcs/month
Delivery Time :
7 days
Packaging Details :
1PCS In 1 Plastic Box, and Servel Boxes In 1 Carton.
Material: :
Tungsten Carbide
Usage: :
Carbon Steel, Alloy Steel, Cast Iron
Coating: :
AlTiN
OEM: :
Yes
Description

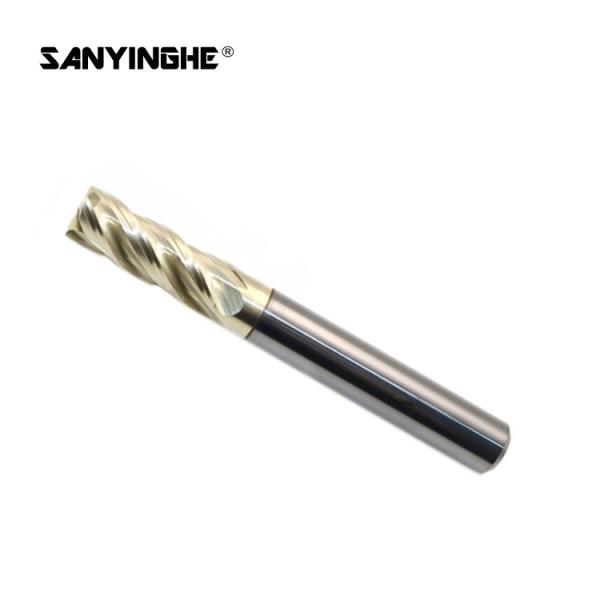

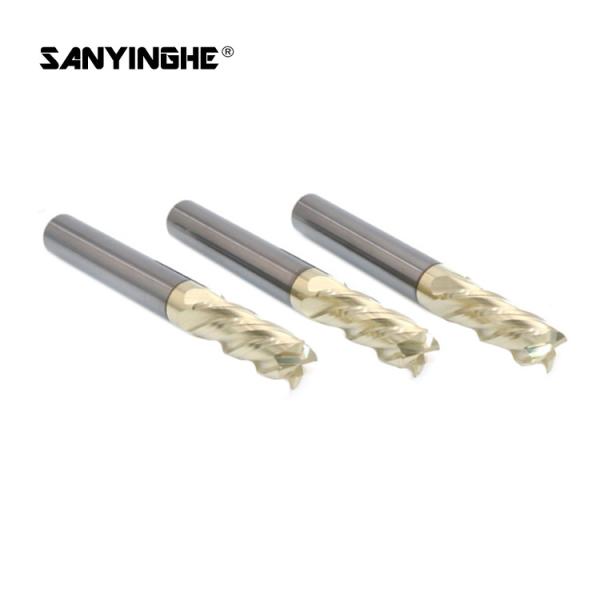

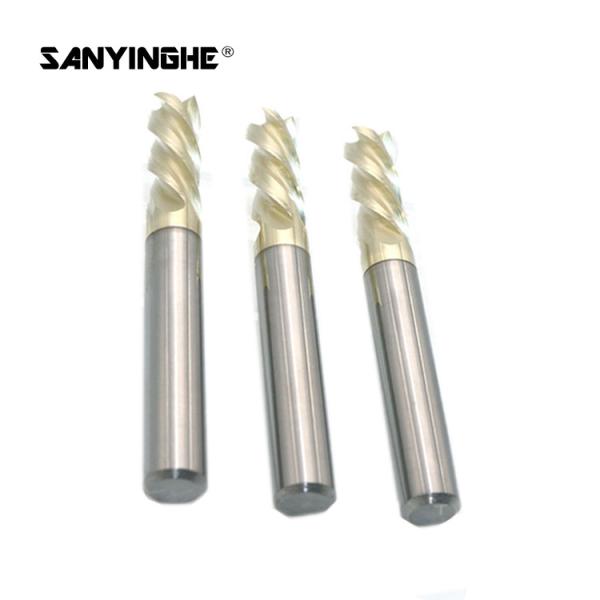

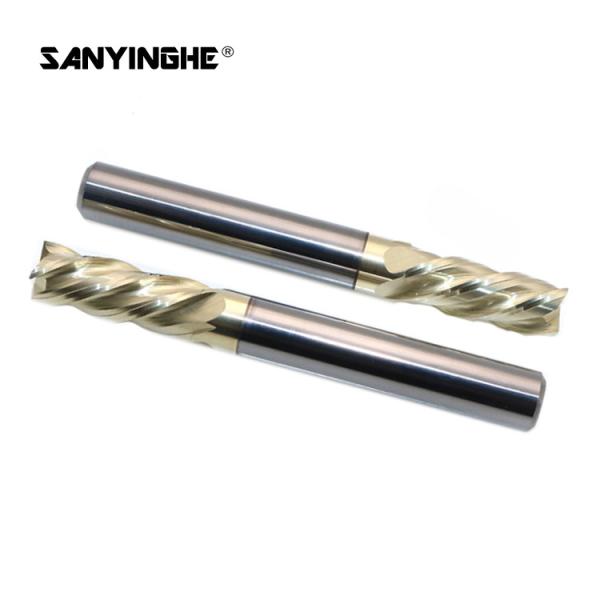

HRC63 Tungsten Carbide Milling Cutter 2/ 4 Flute End Mill Cnc Machine Square Milling Cutter For Metal

PRODUCT DESCRIPTION

1.The micro grain tungsten steel base material is used, which has higher wear resistance and strength. It is an exclusive milling cutter for high hardness high-speed cutting applications.

2.Fine grinding of spiral groove to avoid knife sticking and greatly improve production efficiency

3.Can directly carry out rough machining to fine. machining for heat treatment materials below 55, reduce tool change times, improve machine tool movement rate and save manufacturing time.

4. Application areas: Machining of cast iron, nonferrous alloy,chill cast iron,hard steel,stainless steel,plastic materials,fiberglass,carbon fiber and other non-metallic.

5. Served industries: Aerospace,Transportation, Medical Equipment,Military Manufacturing,Mold Development,etc.

Product Name

 Carbide End Mills
Material Carbide
Coating AITiN
Color Copper Color
Processing Objects Carbon Steel
Features Suitable for processing ordinary steel andcastiron materials.

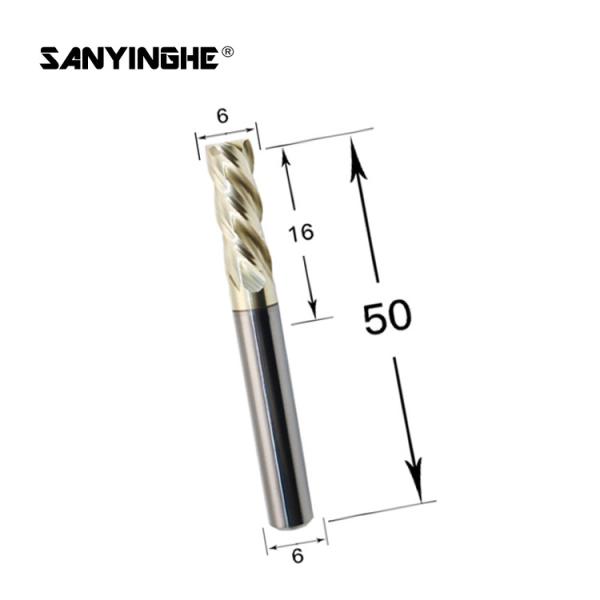

Specifications
Cutting diameter
Flute length
Shank diameter
Overall length
Flute
D1x3x4x50L
1
3
4
50
4
D1.5x4x4x50L
1.5
4
4
50
4
D2x6x4x50L
2
6
4
50
4
D2.5x8x4x50L
2.5
8
4
50
4
D3x8x4x50L
3
8
4
50
4
D4x11x4x50L
4
11
4
50
4
D5x13x5x50L
5
13
5
50
4
D5x13x6x50L
5
13
6
50
4
D6x16x6x50L
6
16
6
50
4
D8x20x8x60L
8
20
8
60
4
D10x25x10x75L
10
25
10
75
4
D12x30x12x75L
12
30
12
75
4
D14x30x14x75L
14
30
14
75
4
D16x45x16x100L
16
45
16
100
4
D18x45x18x100L
18
45
18
100
4
D20x45x20x100L
20
45
20
100
4

HRC63 Tungsten Carbide Milling Cutter 4 2 Flute End Mill Cnc Square Milling CutterHRC63 Tungsten Carbide Milling Cutter 4 2 Flute End Mill Cnc Square Milling CutterHRC63 Tungsten Carbide Milling Cutter 4 2 Flute End Mill Cnc Square Milling Cutter

FAQ

1. Who are we?

Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.

2. How can we guarantee quality?

We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.

3. What can you buy from us?

We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.

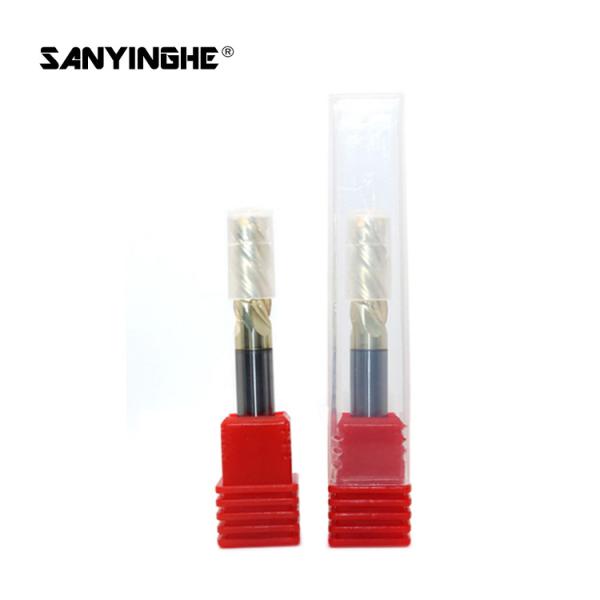

4. How is the packing?

All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.

5. What is your terms of payment?

Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
