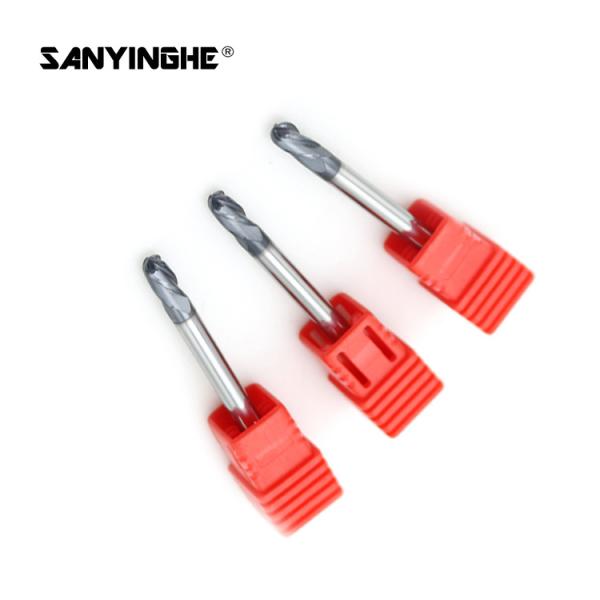

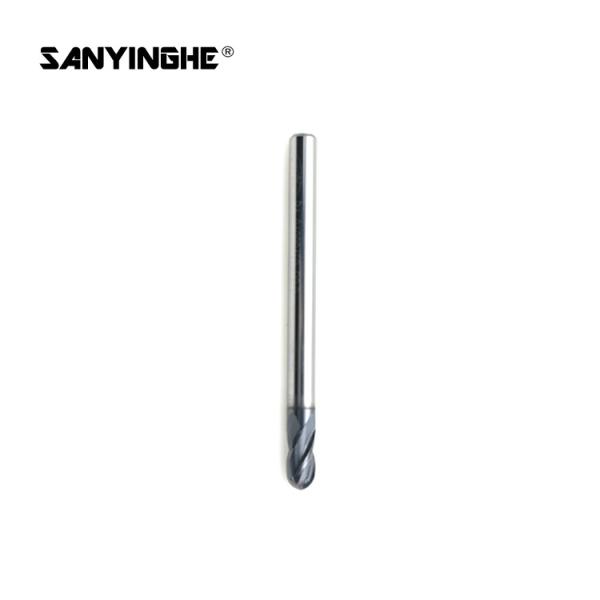

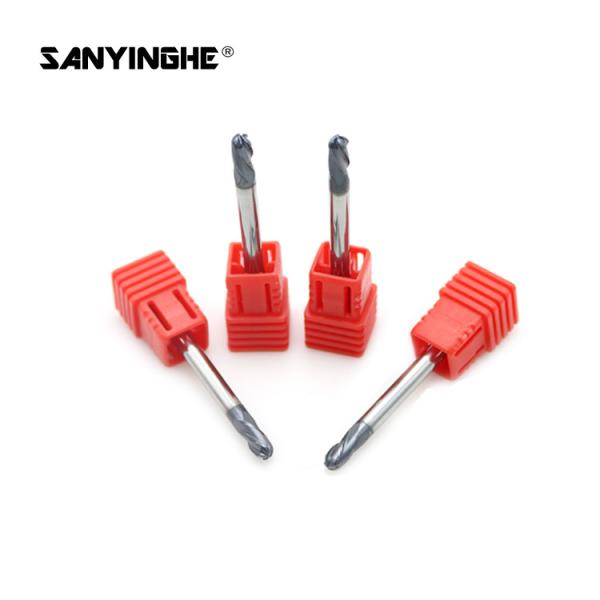

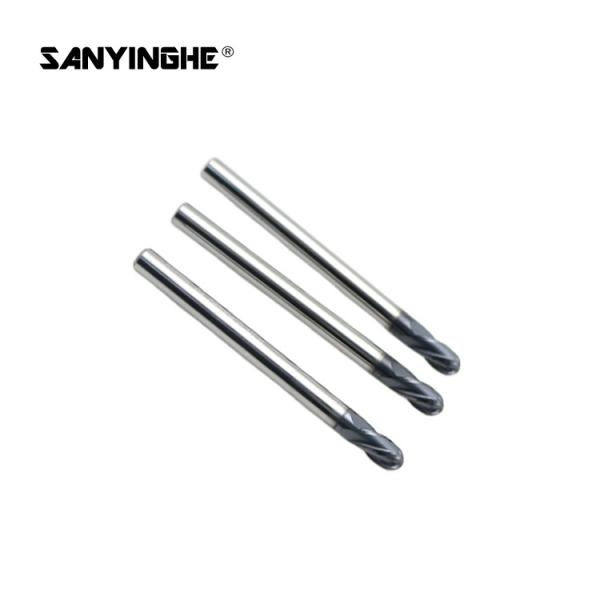

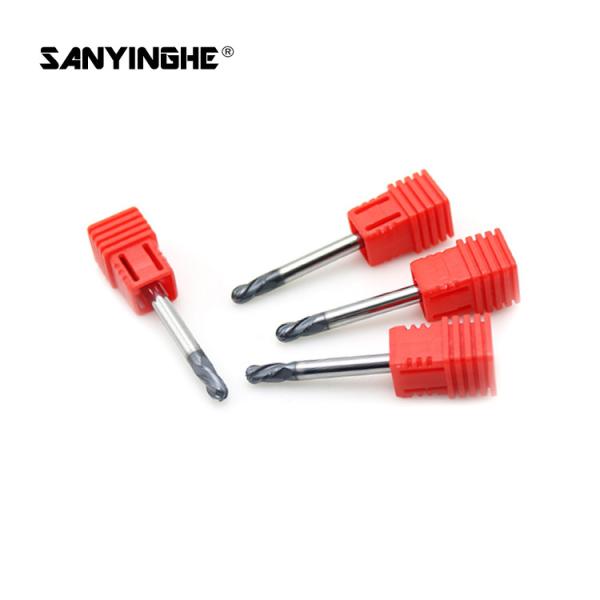

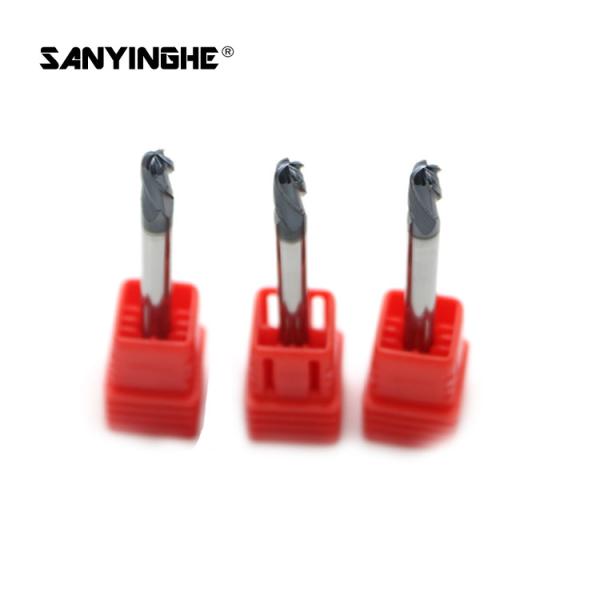

2 4 Flute Solid Carbide End Mills Ball Nose Tungsten Carbide Milling Cutter For Stainless Steel
2 4 Flute Solid Carbide End Mills Ball Nose Tungsten Carbide Milling Cutter For Stainless Steel
2 4 Flute Solid Carbide End Mills Ball Nose Tungsten Carbide Milling Cutter For Stainless Steel
2 4 Flute Solid Carbide End Mills Ball Nose Tungsten Carbide Milling Cutter For Stainless Steel
2 4 Flute Solid Carbide End Mills Ball Nose Tungsten Carbide Milling Cutter For Stainless Steel
2 4 Flute Solid Carbide End Mills Ball Nose Tungsten Carbide Milling Cutter For Stainless Steel
2 4 Flute Solid Carbide End Mills Ball Nose Tungsten Carbide Milling Cutter For Stainless Steel
2 4 Flute Solid Carbide End Mills Ball Nose Tungsten Carbide Milling Cutter For Stainless Steel
2 4 Flute Solid Carbide End Mills Ball Nose Tungsten Carbide Milling Cutter For Stainless Steel
2 4 Flute Solid Carbide End Mills Ball Nose Tungsten Carbide Milling Cutter For Stainless Steel
2 4 Flute Solid Carbide End Mills Ball Nose Tungsten Carbide Milling Cutter For Stainless Steel
2 4 Flute Solid Carbide End Mills Ball Nose Tungsten Carbide Milling Cutter For Stainless Steel
Specifications
Brand Name :
Sanyinghe
Model Number :
D4/6/8/10/12/16/20mm
Certification :
ISO
Place of Origin :
Zhuzhou,China
MOQ :
5PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
3000pcs/month
Delivery Time :
5-7 days
Packaging Details :
1PCS In 1 Plastic Box, and Servel Boxes In 1 Carton.
Material :
Tungsten Carbide
Usage :
Carbon Steel, Alloy Steel, Cast Iron
Type :
CNC Milling Machine
OEM :
Yes
Description

2 / 4 Flute Carbide Ball Nose EndMill Tungsten Carbide Milling Cutter For Stainless Steel

PRODUCT DESCRIPTION


1.Type: Double Flutes Spiral Ballnose Bits
2.Shape: Ball nose
3.Cutter Edge Diameter (CED): optional
4.Cutter Edge Length (CEL): optional
5.Shank diameter (SHK): optional
6.Overall length of cutter (OVL): optional

7.Support customize!

Product Name

 Carbide End Mills
Material Carbide
Coating AITiN
Color Copper Color
Processing Objects Carbon Steel
Features Suitable for processing ordinary steel andcastiron materials.

Coating Color Coating Temperature Thickness (um) HV Application Temperature Friction coefficient
TiAlN Purple-Gray <600°C 3-5 3300 800 °C 0.3
AiTiN Black <600°C 3-5 3500 900 °C 0.3
TiXco Copper <600°C 3-5 3500 1500 °C 0.4
NaNo Blue <600°C 3-5 3800 1200 °C 0.4
AiCrN Silver Gray <480 °C 2-2.5 2500 700 °C 0.3

NO
Specification
Diameter
Cutting Length
Shank
AOL
Flute
1
R0.5*2*D4*50L
1.0
2
4
50
2
2
R0.75*3*D4*50L
1.5
3
4
50
2
3
R1*4*D4*50L*D4
2.0
4
4
50
2
4
R1.5*6*D4*50L
3.0
6
4
50
2
5
R2*8*D4*50L
4.0
8
4
50
2
6
R2.5*10*D6*50L
5.0
10
6
50
2
7
R3*12*D6*50L
6.0
12
6
50
2
8
R4*16*D8*60L
8.0
16
8
60
2
9
R5*20*D10*75L
10.0
20
10
75
2
10
R6*24*D12*75L
12.0
24
12
75
2
11
R1*4*D3*50L
2.0
4
3
50
2
12
R1.75*7*D4*50L
3.5
7
4
50
2
13
R2.5*10*D5*50L
5.0
10
5
50
2
14
R2*8*D4*75L
4.0
8
4
75
2
15
R3*12*D6*75L
6.0
12
6
75
2
16
R4*16*D8*75L
8.0
16
8
75
2
17
R2*8*D4*100L
4.0
8
4
100
2
18
R3*12*D6*100L
6.0
12
6
100
2
19
R4*16*D8*100L
8.0
16
8
100
2
20
R5*20*D10*100L
10.0
20
10
100
2
21
R6*24*D12*100L
12.0
24
12
100
2
22
R7*28**D14*100L
14
28.0
14
100
2
23
R8*32*D16*100L
16
32.0
16
100
2
R9*36*D18*100L
18
36.0
18
100
2
24
R10*40*D20*100L
20
40.0
20
100
2
25
R3*12*D6*150L
6
12.0
6
150
2
26
R4*16*D8*150L
8
16.0
8
150
2
27
R5*20*D10*150L
10
20.0
10
150
2
28
R6*24*D12*150L
12
24.0
12
150
2
29
R7*28*D14*150L
14
28.0
14
150
2
30
R8*32*D16*150L
16
32.0
16
150
2
31
R9*36*D18*150L
18
36.0
18
150
2
32
R10*40*D20*150L
20
40.0
20
150
2

2 4 Flute Solid Carbide End Mills Ball Nose Tungsten Carbide Milling Cutter For Stainless Steel2 4 Flute Solid Carbide End Mills Ball Nose Tungsten Carbide Milling Cutter For Stainless Steel2 4 Flute Solid Carbide End Mills Ball Nose Tungsten Carbide Milling Cutter For Stainless Steel

FAQ

1. Who are we?

Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.

2. How can we guarantee quality?

We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.

3. What can you buy from us?

We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.

4. How is the packing?

All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.

5. What is your terms of payment?

Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
