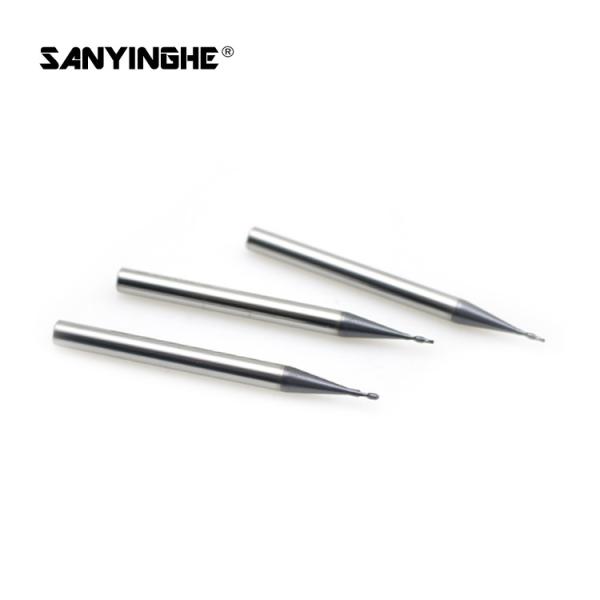

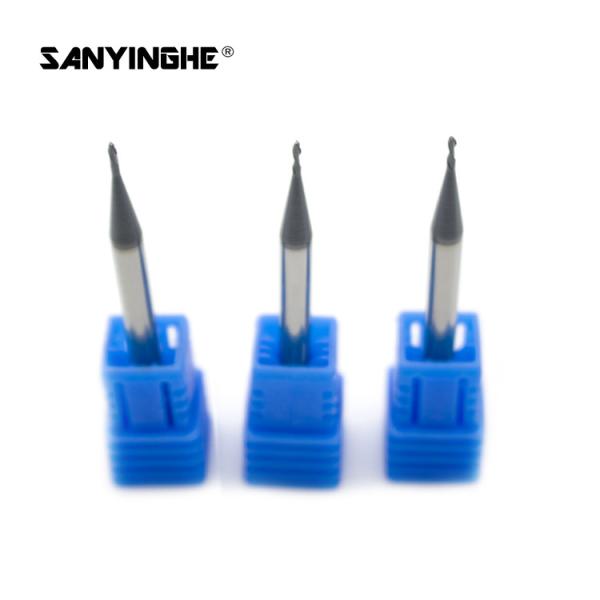

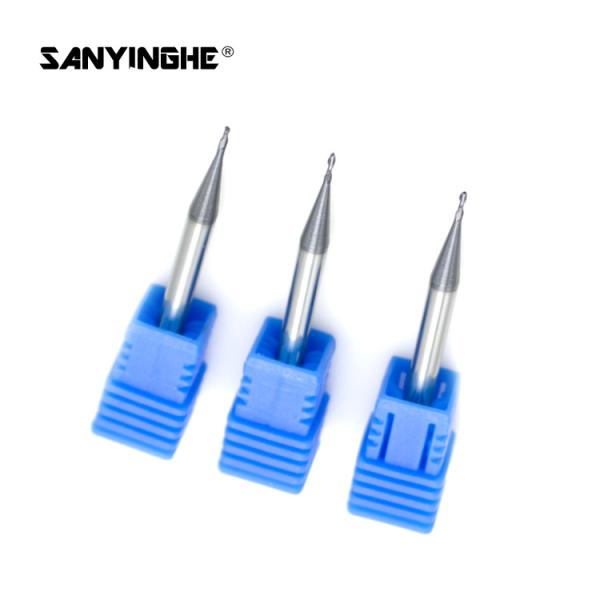

HRC50 Tungsten Micro Solid Carbide End Mills 2 Flute 1.1mm Ball Nose Milling Cutter
HRC50 Tungsten Micro Solid Carbide End Mills 2 Flute 1.1mm Ball Nose Milling Cutter
HRC50 Tungsten Micro Solid Carbide End Mills 2 Flute 1.1mm Ball Nose Milling Cutter
HRC50 Tungsten Micro Solid Carbide End Mills 2 Flute 1.1mm Ball Nose Milling Cutter
HRC50 Tungsten Micro Solid Carbide End Mills 2 Flute 1.1mm Ball Nose Milling Cutter
HRC50 Tungsten Micro Solid Carbide End Mills 2 Flute 1.1mm Ball Nose Milling Cutter
HRC50 Tungsten Micro Solid Carbide End Mills 2 Flute 1.1mm Ball Nose Milling Cutter
HRC50 Tungsten Micro Solid Carbide End Mills 2 Flute 1.1mm Ball Nose Milling Cutter
HRC50 Tungsten Micro Solid Carbide End Mills 2 Flute 1.1mm Ball Nose Milling Cutter
HRC50 Tungsten Micro Solid Carbide End Mills 2 Flute 1.1mm Ball Nose Milling Cutter
Specifications
Brand Name :
Sanyinghe
Model Number :
As your requirements
Certification :
ISO
Place of Origin :
Zhuzhou, China
MOQ :
3PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
8000Pcs/Month
Delivery Time :
5-7 days
Packaging Details :
1PCS/ PVC Packing, 10PCS PVC Packing
Material :
Tungsten carbide
HRC :
HRC50
Advantages :
high wear resistance,high temperature resist,durable
Type :
CNC Cutting Milling machining
Type-1 :
End mill, Standard or custom
Usage :
Carbon Steel,Alloy Steel,Cast Iron
Description

HRC50 Solid Tungsten Carbide 2 Flute Micro End Mill 1.1mm Ball Nose Milling Cutter Cnc Cutting Tools For Milling

Specifications:

1 Materials: High quality carbide rods materials,usd 0.6um ultra-fine grain
WC powder,various grades for choose for process various hardness of materials
2 Suitable for low alloy steel,hardened steel, cast iron and other material.Ultra-fine grained carbide material.
3.Processing hardness ≤ 58HRC.

4.Universal handle type, widely use for clamping and fastening, smooth surface and high grinding precision.

5.Application: CNC Processing, Router Bit, Woodworking Metal Milling Cutter, Milling Tool, Lathe Tool, Carving, Engraving Tool.

ENDMILL GRADE
Material Grade
Grain
Introduction
Application
HRC45 carbide material
YL10.2
0.6μm
YL10.2 is tungsten carbide powder with 89.7% WC and 10% cobalt powder, and has high toughness and wear resistance.
Suitable for General Steel
HRC55 carbide material
K30
0.5μm
K30 is ultra fine grain and containes Ni and Cr element, which provides high strength and good toughness.
General Steel, Stainless Steel, cast iron
HRC60 carbide material
WF25
0.4μm
WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance.
High Hard Material, steel, cast iron, etc
HRC65 carbide material
GU25UF
0.4μm
GU25UF is 0.4micron powder with 12% cobalt and has very high toughness and wear resistance.It is the most suitable for hard
cutting.
Titanium Alloy, High-temperature Alloy, Harden material, etc
Stainless Steel material
WF25
0.4μm
WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance.
stainless steel

HRC50 Tungsten Micro Solid Carbide End Mills 2 Flute 1.1mm Ball Nose Milling CutterHRC50 Tungsten Micro Solid Carbide End Mills 2 Flute 1.1mm Ball Nose Milling CutterHRC50 Tungsten Micro Solid Carbide End Mills 2 Flute 1.1mm Ball Nose Milling Cutter

Note:

These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.

Standard Sizes:

Order No. Flute dia (d) Cutting length ( l ) Shank dia (D) Overall length(L)
1.0×2.5×4D×50L 1.0 2.5 4 50
1.5×4×4D×50L 1.5 4 4 50
2.0×5×4D×50L 2.0 5 4 50
2.5×7×4D×50L 2.5 7 4 50
3.0×8×4D×50L 3.0 8 4 50
3.5×10×4D×50L 3.5 10 4 50
4.0×10×4D×50L 4 10 4 50
4.5×11×6D×50L 4.5 11 6 50
5.0×13×6D×50L 5.0 13 6 50
5.5×13×6D×50L 5.5 13 6 50
6.0×15×6D×50L 6.0 15 6 50
6.5×15×8D×60L 6.5 15 8 60
7.0×17×8D×60L 7.0 17 8 60
7.5×17×8D×60L 7.5 17 8 60
8.0×20×8D×60L 8.0 20 8 60
8.5×25×10D×75L 8.5 25 10 75
9.0×25×10D×75L 9.0 25 10 75
9.5×25×10D×75L 9.5 25 10 75
10.0×25×12D×75L 10.0 25 12 75
10.5×25×12D×75L 10.5 25 12 75
11.0×28×12D×75L 11.0 28 12 75
11.5×28×12D×75L 11.5 28 12 75
12.0×30×12D×75L 12.0 30 12 75
13.0×33×16D×100L 13.0 33 16 100
14.0×40×16D×100L 14.0 40 16 100
15.0×40×16D×100L 15.0 40 16 100
16.0×40×16D×100L 16.0 40 16 100
17.0×40×20D×100L 17.0 40 20 100
18.0×40×20D×100L 18.0 40 20 100
19.0×40×20D×100L 19.0 40 20 100
20.0×40×20D×100L 20.0 40 20 100
25.0×40×25D×100L 25.0 40 25 100

FAQ

1. Who are we?

Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.

2. How can we guarantee quality?

We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.

3. What can you buy from us?

We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.

4. How is the packing?

All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.

5. What is your terms of payment?

Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
