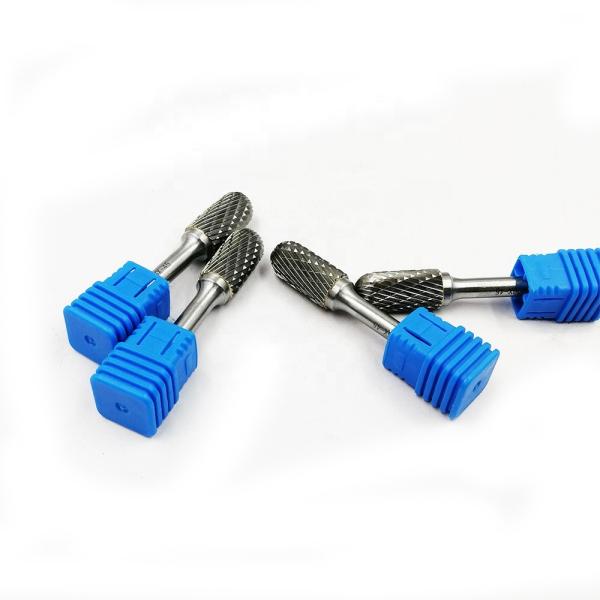

Professional Solid Carbide Burr Set Ball Nose Type C Rotary Carving Bits
Product description:
- Material: 100% of raw materials.
- Tolerance: strict tolerance extent control, which can reach +/-0.01mm;
- Grades: various for choice: YG6, YG8, YG8C, YG11C,YG15C and so on.
- Types: standard, conical, parabolic,ballistic
- Physical performance: high hardness and impact toughness, very good mechanical & chemical stability.
| Product name : | Tungsten Carbide Rotary Files | Shank diamter : | 6mm |
| Brand : | KTS | Packing : | Set packing |
| Shank hardness : | HRA 89-92.5 | Speed of tool : | 15000-45000Turn/min |
| Material : | Tungsten Carbide | Certificate : | ISO9001:2008 |
Product catalouge:
| Name | Type | Cut | Material | Product Process | Head Hardness | LOGO |
| Cylindrical | A | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| Cylindrical End Cut | B | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| Cylindrical Radius End | C | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| BALL SHAPE | D | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| Oval | E | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| Tree Shape | F | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| Tree Pointed Ends | G | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| Flame | H | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| 60°Cone | J | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| 90°Cone | K | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| Taper Radius End | L | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| Cone | M | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| Inverted Cone | N | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized
|
Advantage of our Ball Nose Type C
- 100% quality and brand new.
- Can Process a variety of metal and non-metal, processing hardness would up to HRA89-92.5
- In a great part of the work, it can replace the petiole small wheel, and no dust pollution.
- High production efficiency, the processing efficiency is several times higher than file, nearly 10 times higher than small wheel stalk.
- High product processing quality, high finish, can process out a various of high-precision mold cavity.
- Long life, the durability is 10 times higher than high-speed steel cutting tool, 200 times higher than small grinding wheel.
- Easy to use, safe and reliable, can reduce labor intensity, improve the working environment.
- Suitable for processing these metal and non-metal, such as cast iron, cast steel, bearing steel, high carbon steel, chrome-nickel alloy, bronze, brass, and ceramic tile, marble, jade, bone, etc.
Risk guarantee
- Do not use through hole, tail hole welding
- 100% raw material, no waste tungsten carbide added
- 100% factory direct sales
1. Could you please send me your catalog with price list?
A: Yes,catalog is OK, but kindly tell US the item NO.you like,will send quotation list asap.
2. May l order small quantity of carbide products?
A: Different models have different MOQ.You'd better contact US to confirm.
3. Can you provide sample?
A: Yes,please feel free to tell US the item NO. You prefer,also your own design is welcome to make sample for you.
4. When can you send me the carbide products afthe payment?
A: Around 30 days.
5. What is your price term,payment term and delivery terms?
A: Price Terms: By FOB Guangzhou,balance paid before shipent.
Payment Terms: T/T in advance.
Delivery Terms: By express,by air,by shipment or as per requirement.
6. What is your guarantee?
A: Before shipent our products will pass strict inspection, lf any problem be found,detail photos need to be provide 20 days after receving goods.After our confirmation,compensation will be offered accordingly.
