R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm
R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm
R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm
R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm
R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm
R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm
R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm
R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm
Specifications
Brand Name :
OED/OEM
Model Number :
Carbide wear plate
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Small qty of amples are available.
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000kgs per month
Delivery Time :
Standard products in one week, special tools in 45 days
Packaging Details :
plastic box/box + Cartons
Material :
11% Cobalt
Applicatin :
Wear plate as wear parts
ISO Grade :
G20
Length :
197
width :
30
Thickness :
6
TRS :
3000
Hardness :
HRA 88
Density :
14.4
Description

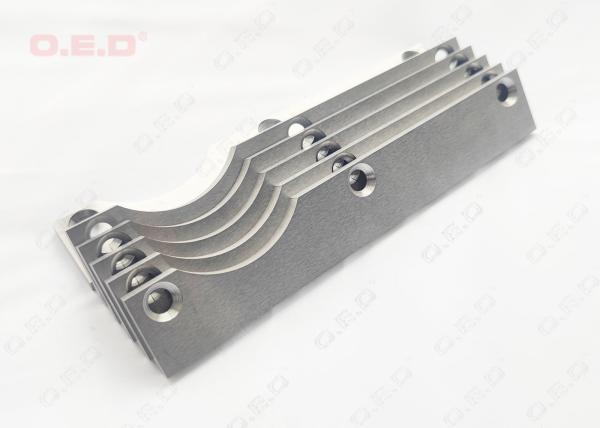

R102 YL10.2 Tungsten carbide wear plate with M8 bolt holes length 197mm

Finished ground tungsten carbide wear plates

Length 197mm

Width 30mm

Thickness 6mm

All ground with a surface roughness Ra 0.8

YL10.2 wear plate with hardness HRA 91.9, T.R.S 3800 N/mm2. Fine-grain size grades, long service life than other materials.

R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mmR102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm

Regular Carbide Grades:

Wear part grades Grade ISO Grade Co Density Hardness T.R.S. Grain size
OK05UF K05 6.00 14.90 93.20 3000 Ultra Fine
OK10F K10-K20 6.00 14.90 92.00 2000 Middle/Fine
OK30M K30 8.00 14.80 91.50 2200 Fine
OK40F K40 10.00 14.45 91.90 3400 Middle/Fine
OK50M K50 12.00 14.25 90.00 3500 Fine
OG30M G10 8.00 14.70 91.00 2100 Middle
OG60M G20 11.00 14.40 89.00 2400 Middle
OG70M G30 15.00 14.20 86.70 2800 Middle
OG80M G40 20.00 13.65 85.00 3000 Middle
OG90M G50 25.00 13.20 84.20 3200 Middle

Corrosion resistance grades:

Corrosion-resistant grades Grade Ni+Co Density Hardness Hardness T.R.S. Grain size
HRA HV30
ON10 5.50 14.80 90.90 1,480 ＞1450 Middle
ON20 6.00 14.80 90.80 1,460 ＞1600 Middle
ON30 7.50 14.65 90.30 1,410 ＞1800 Middle
ON40 9.00 14.55 89.20 1,310 ＞2150 Middle
ON50 10.00 14.40 89.00 1,300 ＞2300 Middle
ON60 11.00 14.20 88.50 1,250 ＞2450 Middle
ON70 15.00 13.15 84.10 950 ＞2650 Middle

R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mmR102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm
