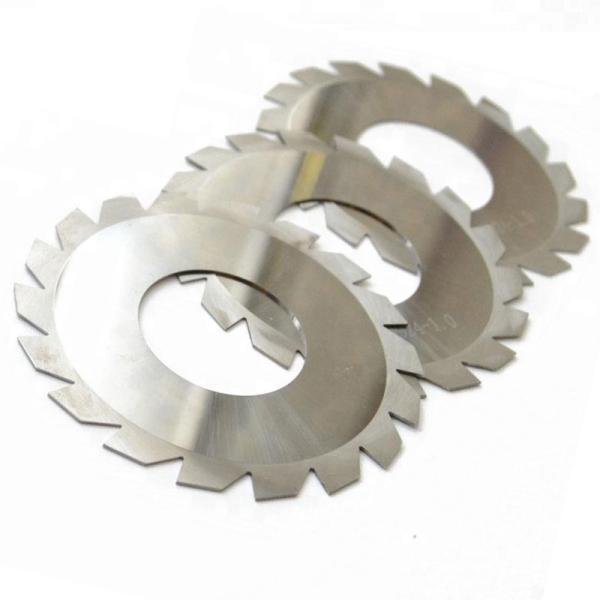

YF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast Iron
YF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast Iron
YF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast Iron
YF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast Iron
YF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast Iron
YF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast Iron
YF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast Iron
YF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast Iron
Specifications
Brand Name :
OED/OEM
Model Number :
Carbide saw blades
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Small qty of amples are available.
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000kgs per month
Delivery Time :
Standard products in one week, special tools in 45 days
Packaging Details :
plastic box/box + Cartons
Material :
YG8
Applicatin :
Saw blades
ISO Grade :
K20
OD :
8mm-110mm
ID :
3mm-32mm
T :
0.2mm-2mm
Cobalt :
8%
TRS :
2500
Hardness :
HRA 89.5
Description

YF06 Polished Tungsten Carbide Saw Blades 0.2mm With 80Z For Machining Cast Iron

K20 datasheet

Grade YG8

ISO Code Grade Binder Grain size Density
g/cm3		 Hardness
HRA		 TRS
N/mm2		 Application
K20 YG8 8 medium 14.7 89.5 2500 High stength in use, impact and shock resistance higher than YG6, but wear resistance and cutting speed comparatively lower. Roughing of cast iron, non-ferrous metals and the alloys as wee as non metallic materials at low cutting speed.
K30 YS2T 10 fine 14.5 92 2350 Fine grain size, high resistance high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc.

Specification for the saw blades:

Specifications Type of teeth OD ID T Number of teeth(Z)
CSB-O8I3T Z A/B 8 3 0.2-2 20/24/32
CSB-O12I5T Z A/B 12 5 0.2-2 20/24/32/40
CSB-O16I5T Z A/B 16 5 0.2-2 20/24/32/40/48
CSB-O20I5T Z A/B 20 5 0.2-2 24/32/48/64
CSB-O25I8T Z A/B 25 8 0.2-3 24/32/48/64/80
CSB-O32I8T Z A/B 32 8 0.2-3 40/48/64/80
CSB-O40I8T Z A/B 40 8 0.2-3 40/64/80/100
CSB-O40I10T Z A/B 40 10 0.2-4 40/64/80/100
CSB-O50I12.7T Z A/B 50 12.7 0.2-4 40/64/80/100
CSB-O50I13T Z A/B 50 13 0.2-5 40/64/80/100
CSB-O60I12.7T Z A/B 60 12.7 0.2-5 40/64/80/100
CSB-O60I22T Z A/B 60 22 0.2-5 40/64/80/100
CSB-O60I25.4T Z A/B 60 25.4 0.2-2 40/64/80/100
CSB-O70I12.7T Z A/B 70 12.7 0.2-2 40/64/72/90/100
CSB-O70I22T Z A/B 70 22 0.2-2 40/64/72/90/100
CSB-O70I25.4T Z A/B 70 25.4 0.2-2 40/64/72/90/100
CSB-O75I22T Z A/B 75 22 0.2-2 64/72/90/100
CSB-O75I25.4T Z A/B 75 25.4 0.2-3 64/72/90/100
CSB-O80I22T Z A/B 80 22 0.2-3 64/72/100/120
CSB-O80I25.4T Z A/B 80 25.4 0.2-3 64/72/100/120
CSB-O90I22T Z A/B 90 22 0.2-4 72/90/100/120
CSB-O90I25.4T Z A/B 90 25.4 0.2-4 72/90/100/120
CSB-O100I22T Z A/B 100 22 0.2-5 90/100/120/160
CSB-O100I25.4T Z A/B 100 25.4 0.2-5 90/100/120/160
CSB-O100I32T Z A/B 100 32 0.2-5 90/100/120/160
CSB-O110I22T Z A/B 110 22 0.2-5 100/120/140/160
CSB-O110I25.4T Z A/B 110 25.4 0.2-5 100/120/140/160
CSB-O110I32T Z A/B 110 32 0.2-5 100/120/140/160

Regular Carbide Grades:

Wear part grades Grade ISO Grade Co Density Hardness T.R.S. Grain size
OK05UF K05 6.00 14.90 93.20 3000 Ultra Fine
OK10F K10-K20 6.00 14.90 92.00 2000 Middle/Fine
OK30M K30 8.00 14.80 91.50 2200 Fine
OK40F K40 10.00 14.45 91.90 3400 Middle/Fine
OK50M K50 12.00 14.25 90.00 3500 Fine
OG30M G10 8.00 14.70 91.00 2100 Middle
OG60M G20 11.00 14.40 89.00 2400 Middle
OG70M G30 15.00 14.20 86.70 2800 Middle
OG80M G40 20.00 13.65 85.00 3000 Middle
OG90M G50 25.00 13.20 84.20 3200 Middle

Corrosion resistance grades:

Corrosion-resistant grades Grade Ni+Co Density Hardness Hardness T.R.S. Grain size
HRA HV30
ON10 5.50 14.80 90.90 1,480 ＞1450 Middle
ON20 6.00 14.80 90.80 1,460 ＞1600 Middle
ON30 7.50 14.65 90.30 1,410 ＞1800 Middle
ON40 9.00 14.55 89.20 1,310 ＞2150 Middle
ON50 10.00 14.40 89.00 1,300 ＞2300 Middle
ON60 11.00 14.20 88.50 1,250 ＞2450 Middle
ON70 15.00 13.15 84.10 950 ＞2650 Middle

YF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast IronYF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast Iron
