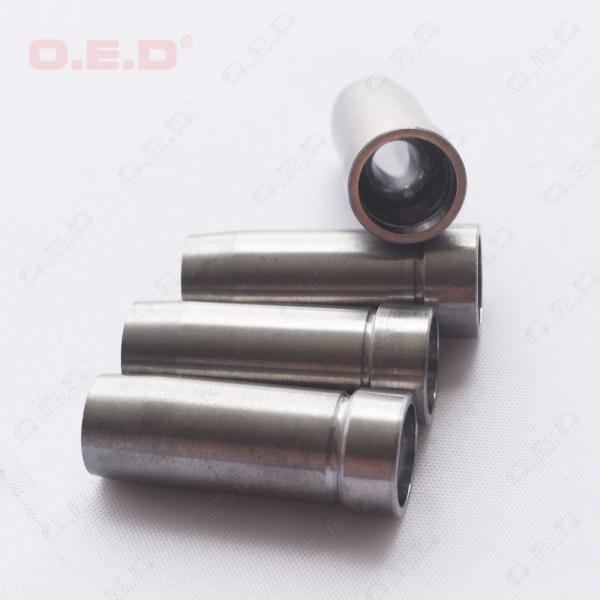

Nickel Carbide Nozzles Liquid Spray Nozzle With High Corrosion Resistant
Nickel Carbide Nozzles Liquid Spray Nozzle With High Corrosion Resistant
Nickel Carbide Nozzles Liquid Spray Nozzle With High Corrosion Resistant
Nickel Carbide Nozzles Liquid Spray Nozzle With High Corrosion Resistant
Nickel Carbide Nozzles Liquid Spray Nozzle With High Corrosion Resistant
Nickel Carbide Nozzles Liquid Spray Nozzle With High Corrosion Resistant
Specifications
Brand Name :
OED/OEM
Model Number :
Carbide spraying nozzles
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Small qty of amples are available.
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000kgs per month
Delivery Time :
Standard products in one week, special tools in 45 days
Packaging Details :
plastic box/box + Cartons
Material :
ON10
Applicatin :
Nozzles
ISO Grade :
-
OD :
11
ID :
4.5
Height :
28
TRS :
1480
Hardness :
HV30 1450
Density :
14.80
Description

Nickel carbide nozzles liquid spray nozzle with high corrosion-resistant

Specifications:

Nickel grade: 6% Nickel with 94% WC

Outer diameter: 11mm

Inner diameter 4.5mm

Length 28mm

Hardness 89 HRA

Roughness for inner diameter Ra 0.2 Polished

Roughness for OD Ra 0.4

Nickel Carbide Nozzles Liquid Spray Nozzle With High Corrosion Resistant

Our Nickel carbide grades:

Corrosion-resistant grades Grade Ni Density Hardness
HRA		 Hardness
HV30		 T.R.S. Grain size
ON10 5.50 14.80 90.90 1480 ＞1450 Middle
ON20 6.00 14.80 90.80 1460 ＞1600 Middle
ON30 7.50 14.65 90.30 1410 ＞1800 Middle
ON40 9.00 14.55 89.20 1310 ＞2150 Middle
ON50 10.00 14.40 89.00 1300 ＞2300 Middle
ON60 11.00 14.20 88.50 1250 ＞2450 Middle
ON70 15.00 13.15 84.10 950 ＞2650 Middle

OED can provide various spray nozzles for oil fields, cutting tools, and spray machines. The grades could be 99% WC, Cobalt-WC, and Nickel-WC. For different applications, we can recommend suitable grades.

Welcome, contact us for more details.

Our main products:

Circular blades

Seal rings

Carbide Nozzles

Carbide bushings

Carbide EDM plates

Carbide Rods

Carbide cutting tools

Regular Carbide Grades:

Wear part grades Grade ISO Grade Co Density Hardness T.R.S. Grain size
OK05UF K05 6.00 14.90 93.20 3000 Ultra Fine
OK10F K10-K20 6.00 14.90 92.00 2000 Middle/Fine
OK30M K30 8.00 14.80 91.50 2200 Fine
OK40F K40 10.00 14.45 91.90 3400 Middle/Fine
OK50M K50 12.00 14.25 90.00 3500 Fine
OG30M G10 8.00 14.70 91.00 2100 Middle
OG60M G20 11.00 14.40 89.00 2400 Middle
OG70M G30 15.00 14.20 86.70 2800 Middle
OG80M G40 20.00 13.65 85.00 3000 Middle
OG90M G50 25.00 13.20 84.20 3200 Middle

Corrosion resistance grades:

Corrosion-resistant grades Grade Ni+Co Density Hardness Hardness T.R.S. Grain size
HRA HV30
ON10 5.50 14.80 90.90 1,480 ＞1450 Middle
ON20 6.00 14.80 90.80 1,460 ＞1600 Middle
ON30 7.50 14.65 90.30 1,410 ＞1800 Middle
ON40 9.00 14.55 89.20 1,310 ＞2150 Middle
ON50 10.00 14.40 89.00 1,300 ＞2300 Middle
ON60 11.00 14.20 88.50 1,250 ＞2450 Middle
ON70 15.00 13.15 84.10 950 ＞2650 Middle

Nickel Carbide Nozzles Liquid Spray Nozzle With High Corrosion ResistantNickel Carbide Nozzles Liquid Spray Nozzle With High Corrosion Resistant
