OK10F Tungsten Carbide Plate With One Polished Bevel Hardness HRA 92
OK10F Tungsten Carbide Plate With One Polished Bevel Hardness HRA 92
OK10F Tungsten Carbide Plate With One Polished Bevel Hardness HRA 92
OK10F Tungsten Carbide Plate With One Polished Bevel Hardness HRA 92
OK10F Tungsten Carbide Plate With One Polished Bevel Hardness HRA 92
OK10F Tungsten Carbide Plate With One Polished Bevel Hardness HRA 92
Specifications
Brand Name :
OED/OEM
Model Number :
Carbide plate
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Small qty of amples are available.
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000kgs per month
Delivery Time :
Standard products in one week, special tools in 45 days
Packaging Details :
plastic box/box + Cartons
Material :
Tungsten carbide
Applicatin :
Carbide ground plate
ISO Grade :
OK10F
Length :
195
width :
45
Thickness :
2
TRS :
2800
Hardness :
HRA 92
Density :
15.10
Description

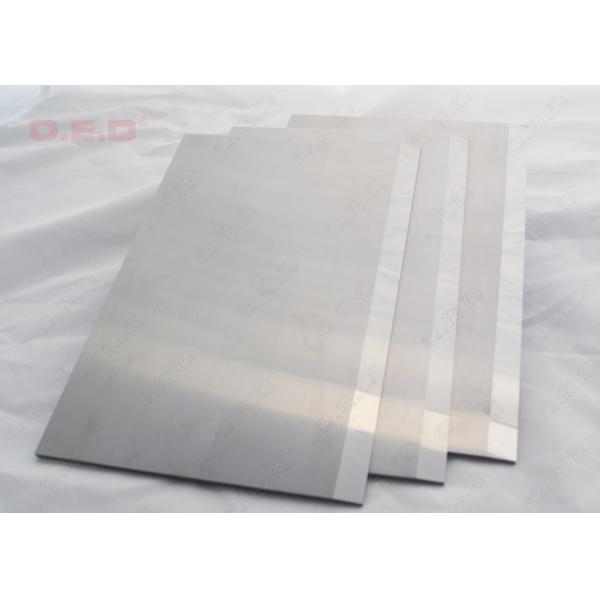

OK10F tungsten carbide plate with one polished bevel hardness HRA 92

Carbide plate with bevel

Length 195mm +0.2

Width 45mm +0.2

Thickness 2mm +0.05mm

Bevel polished to Ra 0.2

Other surfaces Ra 0.8

Grade for OK10F

Cobalt 6%

Density 15.1

Hardness HRA 92

TRS 2800

OK10F Tungsten Carbide Plate With One Polished Bevel Hardness HRA 92

Corrosion resistant grades Grade Ni Density Hardness Hardness T.R.S. Grain size
HRA HV30
ON10 5.5 14.8 90.9 1480 ＞1450 Middle
ON20 6 14.8 90.8 1460 ＞1600 Middle
ON30 7.5 14.65 90.3 1410 ＞1800 Middle
ON40 9 14.55 89.2 1310 ＞2150 Middle
ON50 10 14.4 89 1300 ＞2300 Middle
ON60 11 14.2 88.5 1250 ＞2450 Middle
ON70 15 13.15 84.1 950 ＞2650 Middle

Grade recommended:

Wear part grades Grade ISO Grade Co Density Hardness T.R.S. Grain size
OK05UF K05 6.00 14.90 93.20 3000 Ultra Fine
OK10F K10-K20 6.00 14.90 92.00 2000 Middle/Fine
OK30M K30 8.00 14.80 91.50 2200 Fine
OK40F K40 10.00 14.45 91.90 3400 Middle/Fine
OK50M K50 12.00 14.25 90.00 3500 Fine
OG30M G10 8.00 14.70 91.00 2100 Middle
OG60M G20 11.00 14.40 89.00 2400 Middle
OG70M G30 15.00 14.20 86.70 2800 Middle
OG80M G40 20.00 13.65 85.00 3000 Middle
OG90M G50 25.00 13.20 84.20 3200 Middle

OK10F Tungsten Carbide Plate With One Polished Bevel Hardness HRA 92OK10F Tungsten Carbide Plate With One Polished Bevel Hardness HRA 92
