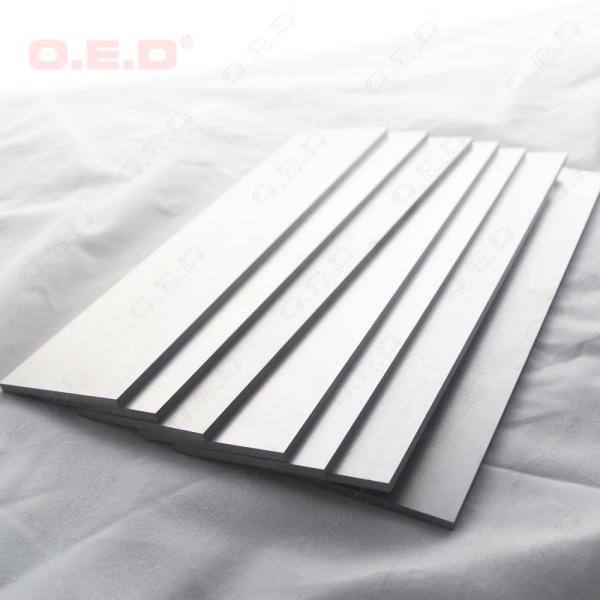

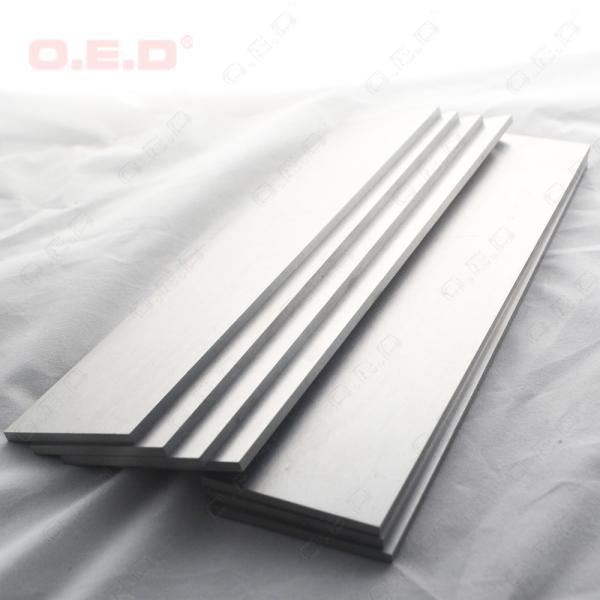

Finished Ground Tungsten Carbide Plate OK40F Cemented Plates 10% Cobalt
Finished Ground Tungsten Carbide Plate OK40F Cemented Plates 10% Cobalt
Finished Ground Tungsten Carbide Plate OK40F Cemented Plates 10% Cobalt
Finished Ground Tungsten Carbide Plate OK40F Cemented Plates 10% Cobalt
Finished Ground Tungsten Carbide Plate OK40F Cemented Plates 10% Cobalt
Finished Ground Tungsten Carbide Plate OK40F Cemented Plates 10% Cobalt
Specifications
Brand Name :
OED/OEM is available
Model Number :
Carbide plate
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Small qty of amples are available.
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000kgs per month
Delivery Time :
Standard products in one week, special tools in 45 days
Packaging Details :
plastic box/box + Cartons
Material :
Tungsten carbide
Applicatin :
Carbide ground plate
ISO Grade :
O40F
Length :
150
width :
30
Thickness :
3.5
TRS :
3700
Hardness :
HRA 91.8
Density :
14.45
Description

Finished Ground Tungsten Carbide Plate OK40F Cemented Plates 10% Cobalt

Specification:

Length 150mm +/- 0.2mm

Width 30mm +/-0.2mm

Thickness 3.5mm +0.02mm

Grade for OK40F

ISO Grade K40

Grain size fine

Cobalt 10%

Density 14.45

Hardness 91.7

TRS 3800

Finished Ground Tungsten Carbide Plate OK40F Cemented Plates 10% Cobalt

Corrosion resistant grades Grade Ni Density Hardness Hardness T.R.S. Grain size
HRA HV30
ON10 5.5 14.8 90.9 1480 ＞1450 Middle
ON20 6 14.8 90.8 1460 ＞1600 Middle
ON30 7.5 14.65 90.3 1410 ＞1800 Middle
ON40 9 14.55 89.2 1310 ＞2150 Middle
ON50 10 14.4 89 1300 ＞2300 Middle
ON60 11 14.2 88.5 1250 ＞2450 Middle
ON70 15 13.15 84.1 950 ＞2650 Middle

Grade recommended:

Wear part grades Grade ISO Grade Co Density Hardness T.R.S. Grain size
OK05UF K05 6.00 14.90 93.20 3000 Ultra Fine
OK10F K10-K20 6.00 14.90 92.00 2000 Middle/Fine
OK30M K30 8.00 14.80 91.50 2200 Fine
OK40F K40 10.00 14.45 91.90 3400 Middle/Fine
OK50M K50 12.00 14.25 90.00 3500 Fine
OG30M G10 8.00 14.70 91.00 2100 Middle
OG60M G20 11.00 14.40 89.00 2400 Middle
OG70M G30 15.00 14.20 86.70 2800 Middle
OG80M G40 20.00 13.65 85.00 3000 Middle
OG90M G50 25.00 13.20 84.20 3200 Middle

Finished Ground Tungsten Carbide Plate OK40F Cemented Plates 10% CobaltFinished Ground Tungsten Carbide Plate OK40F Cemented Plates 10% Cobalt
