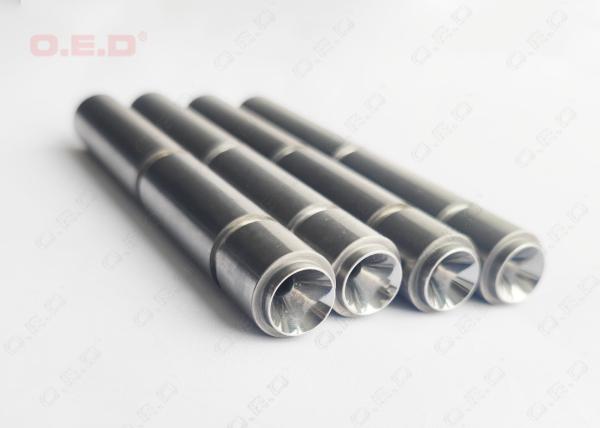

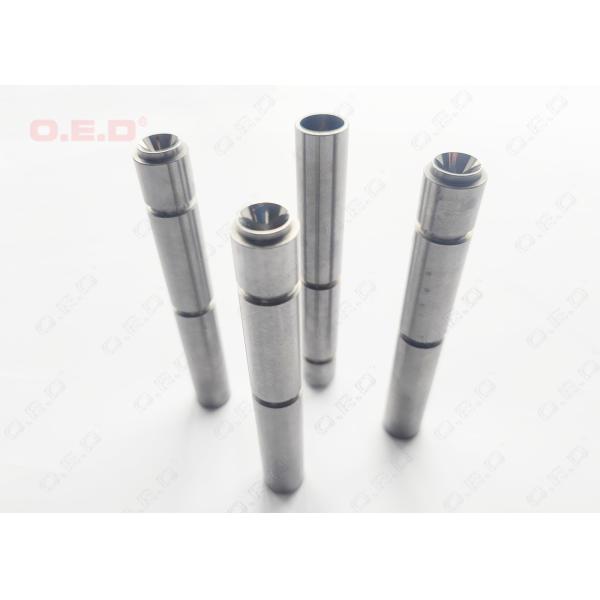

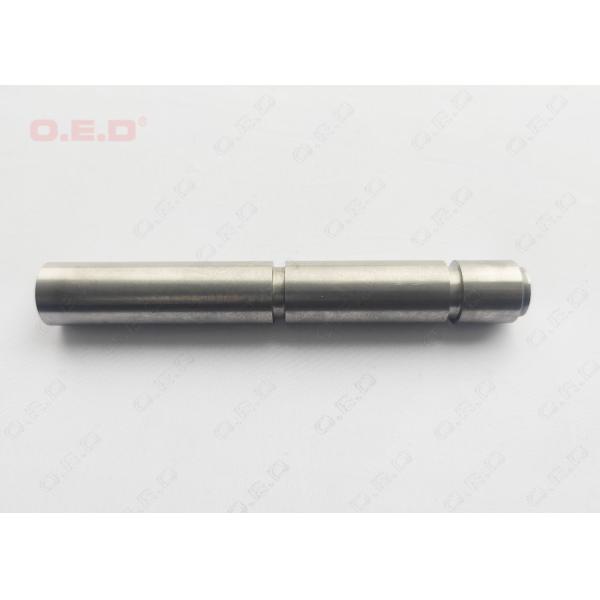

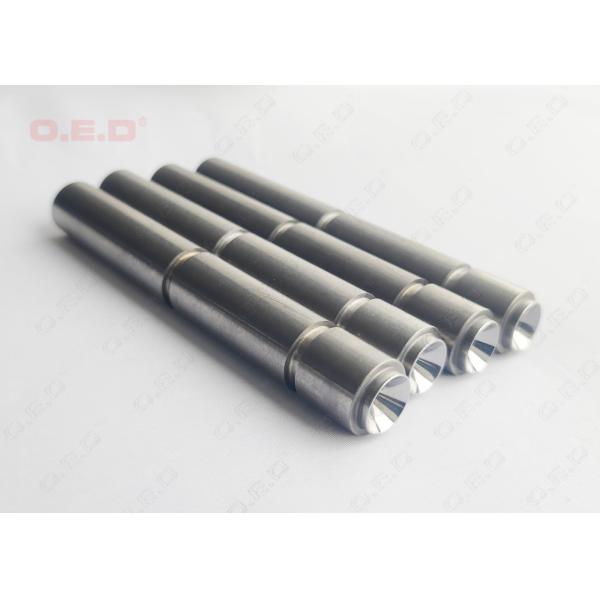

YG8 High Hardness Tungsten Carbide Nozzles For Oil Field Wear Parts
YG8 High Hardness Tungsten Carbide Nozzles For Oil Field Wear Parts
YG8 High Hardness Tungsten Carbide Nozzles For Oil Field Wear Parts
YG8 High Hardness Tungsten Carbide Nozzles For Oil Field Wear Parts
YG8 High Hardness Tungsten Carbide Nozzles For Oil Field Wear Parts
YG8 High Hardness Tungsten Carbide Nozzles For Oil Field Wear Parts
YG8 High Hardness Tungsten Carbide Nozzles For Oil Field Wear Parts
YG8 High Hardness Tungsten Carbide Nozzles For Oil Field Wear Parts
Specifications
Brand Name :
OED or OEM
Model Number :
Nozzles
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
Small qty of amples are available.
Price :
110-150 USD/PC, special tools can be negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000pcs per month
Delivery Time :
Standard products in one week, special tools in 45 days
Packaging Details :
plastic box/box + Cartons
Material :
Nickel Tungsten carbide
ISO Grade :
K20
Application :
Carbide spray nozzles
Hardness :
HRA 89
TRS :
2400
Density :
14.80
Length :
55
OD :
25
ID :
2
Roughness :
Ra 0.4
Description

YG8 high hardness tungsten carbide nozzles for oil field wear parts

Specifications:

  • Outer diameter: 16mm
  • Inner diameter 0.8mm
  • Spray angle 90°
  • Carbide Grade YG8
  • Hardness 91 HRA
  • Roughness for inner diameter Ra 0.4
  • Roughness for OD Ra 0.8
  • Length 160mm

OED can provide various spray nozzles for oil fields, cutting tools, and spray machines. The grades could be 99% WC, Cobalt-WC, and Nickel-WC. For different applications, we can recommend suitable grades.

Contact us for more details.

Our main products:

  • Circular blades
  • Seal rings
  • Carbide Nozzles
  • Carbide bushings
  • Carbide EDM plates
  • Carbide Rods
  • Carbide cutting tools

Remove sharp edges.

Features:

  • Good Wear Resistance
  • Strong Impact Resistance performance
  • Better Surface Finish
  • High hardness
  • Good corrosion resistance

YG8 High Hardness Tungsten Carbide Nozzles For Oil Field Wear PartsYG8 High Hardness Tungsten Carbide Nozzles For Oil Field Wear PartsYG8 High Hardness Tungsten Carbide Nozzles For Oil Field Wear Parts


Carbide Grade ON20

Corrosion-resistant grades Grade Ni Density Hardness
HRA		 Hardness
HV30		 T.R.S. Grain size
ON10 5.50 14.80 90.90 1480 ＞1450 Middle
ON20 6.00 14.80 90.80 1460 ＞1600 Middle
ON30 7.50 14.65 90.30 1410 ＞1800 Middle
ON40 9.00 14.55 89.20 1310 ＞2150 Middle
ON50 10.00 14.40 89.00 1300 ＞2300 Middle
ON60 11.00 14.20 88.50 1250 ＞2450 Middle
ON70 15.00 13.15 84.10 950 ＞2650 Middle





YG8 High Hardness Tungsten Carbide Nozzles For Oil Field Wear Parts


YG8 High Hardness Tungsten Carbide Nozzles For Oil Field Wear Parts
