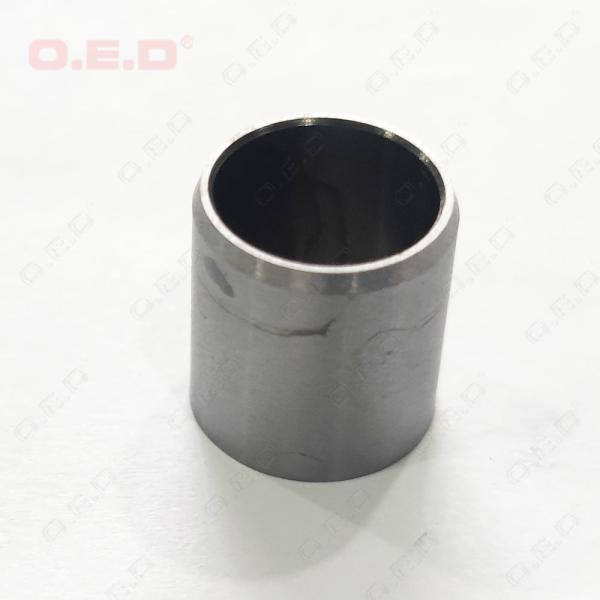

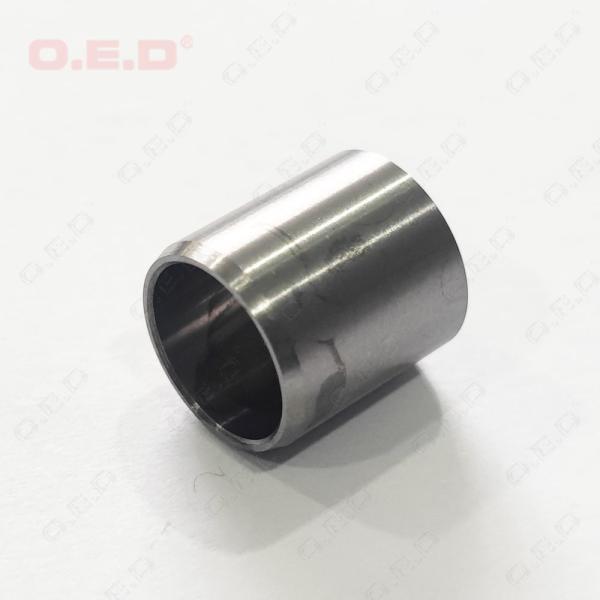

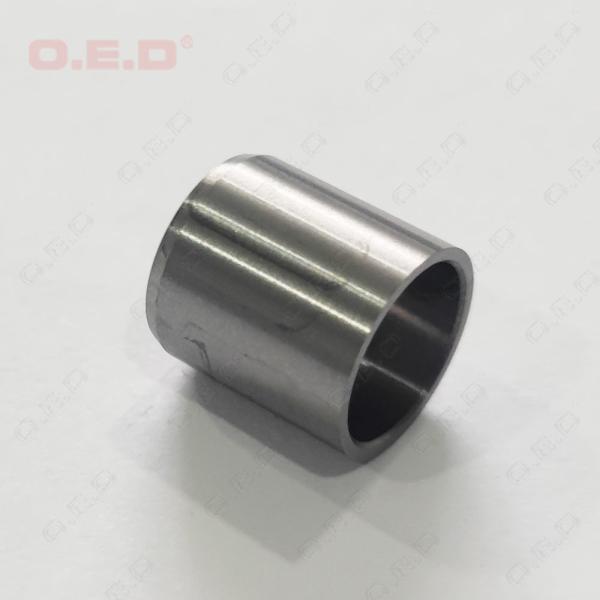

Precision Tungsten Carbide Bushings H5 Thin Wear Scissors Parts OG20
Precision Tungsten Carbide Bushings H5 Thin Wear Scissors Parts OG20
Precision Tungsten Carbide Bushings H5 Thin Wear Scissors Parts OG20
Precision Tungsten Carbide Bushings H5 Thin Wear Scissors Parts OG20
Precision Tungsten Carbide Bushings H5 Thin Wear Scissors Parts OG20
Precision Tungsten Carbide Bushings H5 Thin Wear Scissors Parts OG20
Specifications
Brand Name :
OED or OEM
Model Number :
OG20
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
Small qty of amples are available.
Price :
5-10USD/PC, special tools can be negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000pcs per month
Delivery Time :
Standard products in one week, special tools in 45 days
Packaging Details :
plastic box/box + Cartons
Material :
Tungsten carbide
ISO Grade :
G20
Application :
Scissor wear bushing
Hardness :
HRA 87.5
TRS :
2400
Density :
14.4
Outer diameter :
12
Inner diameter :
8
Roughness :
Ra 0.4
Description

T.C. 616 All Ground Bush Scissors Wear Parts OG20 HRA 89 Polished Bushings​

Perpendicularity and Circularity are 0.005mm. With these excellent quality, it used for precision scissors wear bushings.

Item No. is not specified, with finished ground Ra 0.4
Outer diameter 10mm
Inner diameter 8mm
Thickness 12mm
Perpendicularity 0.005mm
Circularity 0.005mm

One end with 45° chamfer. Remove all sharp edges.

All surface Ra 0.4
Precision Tungsten Carbide Bushings H5 Thin Wear Scissors Parts OG20Precision Tungsten Carbide Bushings H5 Thin Wear Scissors Parts OG20Precision Tungsten Carbide Bushings H5 Thin Wear Scissors Parts OG20
Carbide Grade OG20

Chemical Component (Wt/Wt %)
Co 11
WC 89
Other
Physical Performance
Density(g/cm3)ISO336914.45±0.05
Hardness HV30ISO38781150±50 (HRA 87.5±0.3)
4πσ(μTm3/kg)
HC(KA/m)ISO332610.4±2.5
*TRS(N/mm2)ISO3327＞2400
Compressive strength N/mm² 4200
Micro Structure
Micro porosityISO4505
A (<10μm) ≤02
B (10-25μm) 00
C 00
Grain size (micron)ISO 44991.6μm
ηISO 4499E00
metallography 1500X



we specialized in producing Punches, Ejector Pins and sleeves, Die Buttons, Bushes, Ejector Punches, Drill Rods, Ball Cages, Springs,Block Sets of many different standards



Precision Tungsten Carbide Bushings H5 Thin Wear Scissors Parts OG20


Recommended carbide grades:

ISO GradeCarbide gradeWC%Co %Hardness(HRA±0.5)Density
g/cm3		TRS
N/mm2		Recommended Application
K01YG397391.515.21500Suitable for steel wire, non-ferrous metal and alloy wire rod or material
K01YG3X97392.515.21450High hardness, good wear resistance, low impact, and low impact. Suitable for fine steel wire, non-ferrous metal, and alloy wire.
K10YG694690.514.952600For rough machining of non-ferrous metals.
K15YG6X94691.514.852700Suitable for processing of non-ferrous, metal finishing, and woodworking cutting tooling
K10YG6A9469214.952450For wire drawing die and woodworking cutting tools
K30YG892889.514.72700For wire drawing die, drawing die
K40YG11891188.514.452900For wearing parts and mining tools
G30YG1586.513.58714.02280Strength is the best, the wear resistance is low, it is suitable for impact rotary rock drill and heavy rock drill, rock hard rock layer.


Precision Tungsten Carbide Bushings H5 Thin Wear Scissors Parts OG20


Precision Tungsten Carbide Bushings H5 Thin Wear Scissors Parts OG20


Precision Tungsten Carbide Bushings H5 Thin Wear Scissors Parts OG20
